(07-007) - VALVE ASSY, CONTROL (BOOM SWING) (PH30V00058F1)

Запчасти Case CX50B (07-007) - VALVE ASSY, CONTROL (BOOM SWING) (PH30V00058F1) ELECTRICAL AND HYDRAULIC COMPONENTS

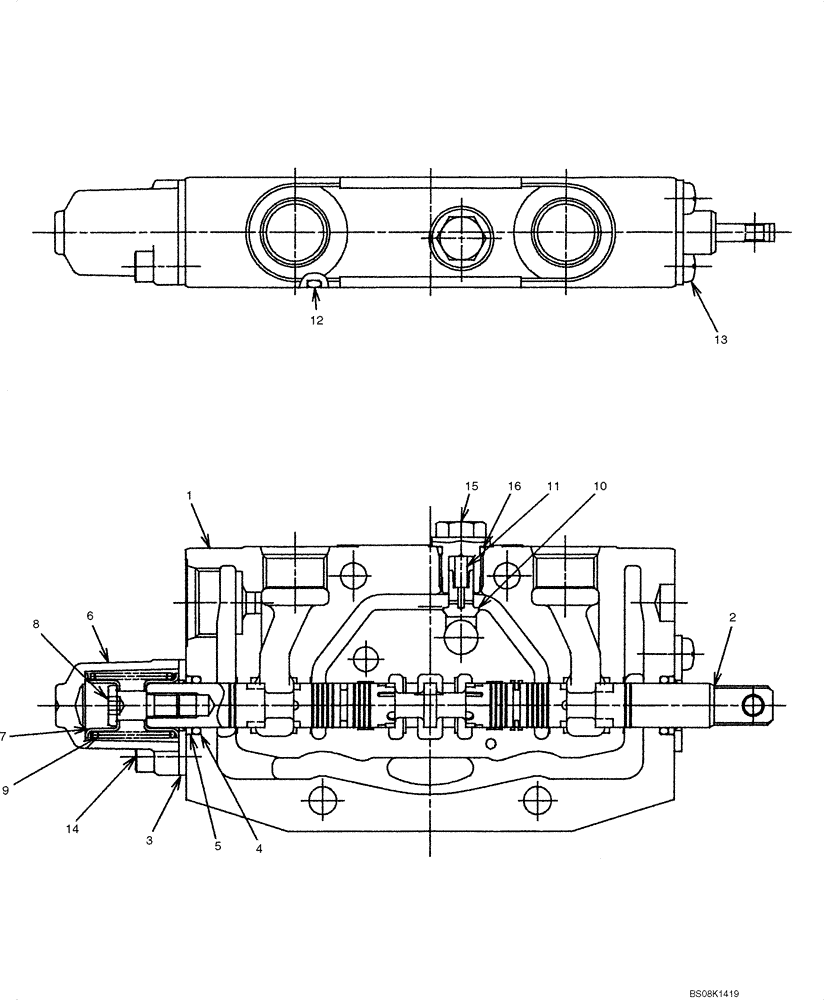

Схема запчастей Case CX50B - (07-007) - VALVE ASSY, CONTROL (BOOM SWING) (PH30V00058F1) ELECTRICAL AND HYDRAULIC COMPONENTS
14
8
4
16
1
2
9
5
7
12
3
6
10
13
15
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PH30V00058F1

VALVE

VALVE ASSY, CONTROL (BOOM SWING)

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

3

2436R330S3

PLATE

2шт.

4

2436R330S4

O-RING

2шт.

5

2436R330S5

GASKET

2шт.

6

PH30V00058S006

CAP

CAP

2шт.

7

2436U216S28

SPRING

SEAT

1шт.

8

PH30V00058S008

SCREW

CAPSCREW

1шт.

9

2436R704S9

SPRING

1шт.

10

PH30V00053S007

POPPET

POPPET

1шт.

11

PH30V00053S009

SPRING

SPRING

1шт.

12

ZD11G07000

O-RING,69.40mm ID x 75.60mm OD x 3.10mm

2шт.

13

ZS31C06010

SCREW,Phillips Drive, Pan HD, M6 x 10mm

CAP

4шт.

14

ZS23C06018

SCREW,Hex Socket Head, M6 x 18mm

1шт.

15

PH30V00053S010

PLUG

PLUG

1шт.

16

2436U1192S19

O-RING

1шт.
