(07-005) - VALVE ASSY, CONTROL (ARM) (PH30V00060F1)

Запчасти Case CX50B (07-005) - VALVE ASSY, CONTROL (ARM) (PH30V00060F1) ELECTRICAL AND HYDRAULIC COMPONENTS

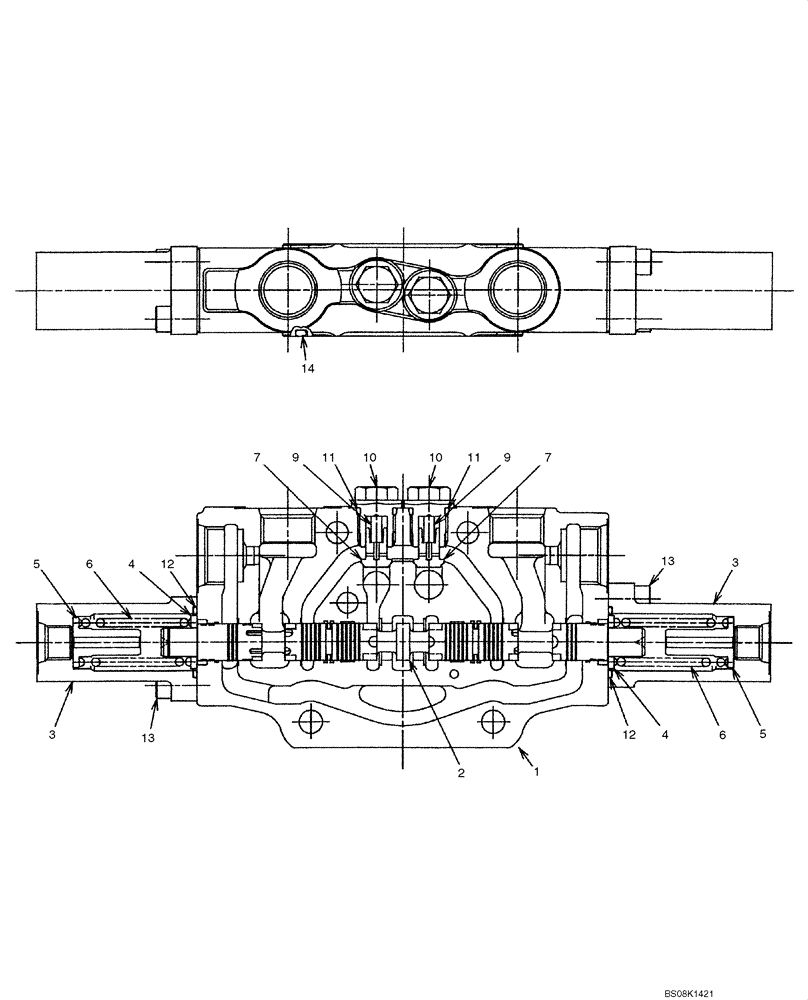

Схема запчастей Case CX50B - (07-005) - VALVE ASSY, CONTROL (ARM) (PH30V00060F1) ELECTRICAL AND HYDRAULIC COMPONENTS
3
7
1
5
11
13
5
2
4
4
6
10
14
6
10
11
7
9
9
13
12
12
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PH30V00060F1

VALVE

VALVE ASSY, CONTROL (ARM)

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

3

PH30V00053S003

CAP

CAP

2шт.

4

2436R919S10

SEAT

SPRING, SEAT

2шт.

5

PH30V00053S005

VALVE SEAT

SPRING, SEAT

2шт.

6

PH30V00053S006

SPRING

SPRING

2шт.

7

PH30V00053S007

POPPET

POPPET

2шт.

9

PH30V00053S009

SPRING

SPRING

2шт.

10

PH30V00053S010

PLUG

PLUG

2шт.

11

2436U1192S19

O-RING

2шт.

12

2436R668S3

O-RING

2шт.

13

ZS23C06018

SCREW,Hex Socket Head, M6 x 18mm

CAP

4шт.

14

ZD11G07000

O-RING,69.40mm ID x 75.60mm OD x 3.10mm

1шт.
