Артикул
Название
Примечание
Количество

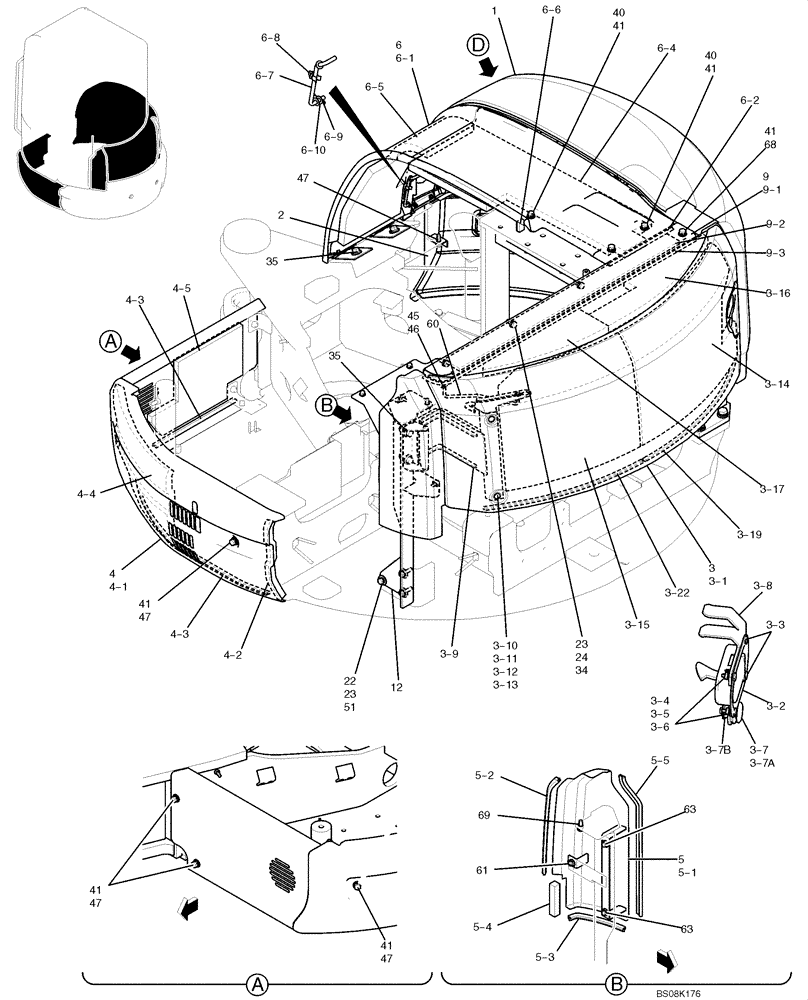

GUARD INSTALLATION, PH21C00018F1
1шт.
1
PH21C00015F1
LATHE
COVER ASSY, SIDE
1шт.
2
PW21C01801F1
COVER ASSY
1шт.
3
PH22C00009F1
COVER ASSY
1шт.
PW21C01802P1
COVER ASSY
R/H -- Not Shown
1шт.
PM21C01233P1
RUBBER
Not Shown
1шт.
2427P1836D32
WEATHERSTRIP
950mm Long (37-25/64 in) -- Not Shown
1шт.
PW21C01629P1
FOAM INSULATION
Not Shown
1шт.
3-1
PH22C01136P1
COWLING
1шт.
3-2
PW22C01067P1
LOCK
1шт.
3-3
PH22C01023P1
BOLT
4шт.
3-4
ZN18C05004
NUT
4шт.
3-5
ZW26X05000
LOCK WASHER
LOCK
4шт.
3-6
ZW16H05000
WASHER
4шт.
3-7
PM21C01268F1
LOCK
ASSY
1шт.
3-7a
YR22C01025P2
LOCK
1шт.
3-7b
PM21C01269P1
PLATE
1шт.
3-8
PW22C01160P2
BRACKET
GUIDE
1шт.
3-9
PH22C01108P1
HINGE
1шт.
3-10
PW21C01413P1
CAPSCREW
CAP
2шт.
3-11
ZW16X08000
WASHER,8mm ID x 17mm OD x 1.6mm Thk
2шт.
3-12
ZW26X08000
LOCK WASHER
Lock
2шт.
3-13
ZN18C08007
NUT
2шт.
3-14
PH22C01182P2
FOAM INSULATION
1шт.
3-15
PH22C01183P1
FOAM INSULATION
1шт.
3-16
PH22C01186P1
FOAM INSULATION
1шт.
3-17
PH22C01185P1
FOAM INSULATION
1шт.
3-19
PH21C01160D3
WEATHERSTRIP
1шт.
3-22
PM22C01013D4
WEATHERSEAL STRIP
1шт.
4
PH21C00016F1
COVER ASSY
L/H
1шт.
4-1
PH21C01576P1
COVER ASSY
COVER ASSY
1шт.
4-2
PM21C01233P1
RUBBER
1шт.
4-3
YT21C01039DM
WEATHERSTRIP
1шт.
4-4
PW21C01683P1
FOAM INSULATION
1шт.
4-5
PH21C01398P1
FOAM INSULATION
1шт.
5
PH21C01411F1
COVER ASSY
COVER ASSY
1шт.
5-1
PH21C01412P1
COVER
1шт.
5-2
YN21C01528DA
WEATHERSTRIP
1шт.
5-3
YN21C01136D7
WEATHERSTRIP
1шт.
5-4
PW21C01718D1
RUBBER
1шт.
5-5
YT21C01039DL
WEATHERSTRIP
1шт.
6
PH21C01470F1
COVER
GUARD ASSY
1шт.
6-1
PH21C01440P1
COVER
COVER
1шт.
6-2
2427Z2106D1
WEATHERSTRIP
1шт.
6-4
PH21C01482P2
FOAM INSULATION
1шт.
6-5
PH21C01483P1
FOAM INSULATION
1шт.
6-6
PH21C01507P1
FOAM INSULATION
1шт.
6-7
PH21C01460P1
STAY
1шт.
6-8
YR21C01123P1
COLLAR
CLIP
1шт.
6-9
2419R9D2
COTTER PIN
OD 08mm x 27.7mm Long
1шт.
6-10
ZW16X08000
WASHER,8mm ID x 17mm OD x 1.6mm Thk
1шт.
9
PH21C01352F1
COVER ASSY
1шт.
9-1
PH21C01416P1
COVER
COVER
1шт.
9-2
PH21C01400P1
FOAM INSULATION
1шт.
9-3
PH21C01531P1
WEATHERSTRIP
1шт.
12
PH21C01324P3
STAY
STAY
1шт.
22
ZS18C10035
SCREW,Hex, M10 x 35mm
CAP
3шт.
23
ZW26X10000
LOCK WASHER
6шт.
24
ZW16P10000
WASHER
3шт.
34
ZS18C10025
SCREW,Hex, M10 x 25mm
3шт.
35
YN02C01299P1
BOLT
M12x1.75x35mm (Incls. Washer & Lockwasher)
4шт.
40
PA41C01005D1
BOLT
SEMS
3шт.
41
YT21C01187P2
WASHER
8шт.
45
ZW16P08000
WASHER
ID 08 x OD 17 x Th 1.6mm
1шт.
46
2419R9D2
COTTER PIN
OD 08mm x 27.7mm Long
1шт.
47
PA41C01005D3
BOLT
SEMS
5шт.
51
2418T12346
WASHER
ID 11 x OD 30 x Th 3.2mm
3шт.
60
PH22C01194P1
STAY
1шт.
61
PA21C01133P1
BOLT
SEMS
1шт.
63
PM21C01202P1
BOLT
SEMS
2шт.
68
PA41C01005D2
BOLT (STEP)
SEMS
1шт.
69
ZM73C10025
BOLT,M10x25mm - Course Thread
M10x1.50x25mm (Incls. Washer)
1шт.
Выбрано товаров: 72
