Запчасти Case CX50B (01-067) - GUARD INSTALLATION (CANOPY) (PH21C00020F1) (05) - SUPERSTRUCTURE

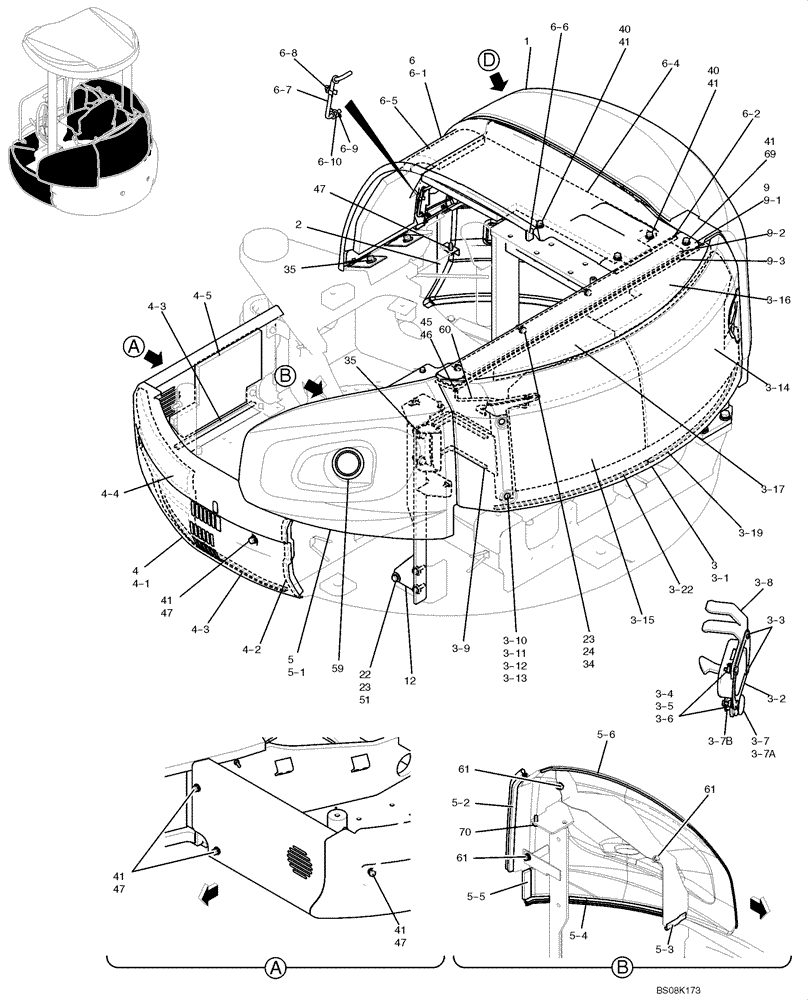

Схема запчастей Case CX50B - (01-067) - GUARD INSTALLATION (CANOPY) (PH21C00020F1) (05) - SUPERSTRUCTURE
41
61
23
12
23
3-2
60
4-3
6-8
6-5
4-2
5-6
4
22
4-1
3-15
5
3-11
9-3
6
5-2
3-1
3
4-5
46
3-9
45
59
6-4
3-12
3-5
6-2
3-7
5-3
47
35
6-6
3-17
40
6-7
47
47
41
70
24
9-2
69
47
40
3-14
3-22
5-5
3-6
1
4-3
61
34
3-7b
5-4
3-13
6-9
3-19
3-16
41
3-8
35
61
9
2
51
3-7a
41
9-1
3-3
4-4
41
6-1
3-10
5-1
41
6-10
3-4

Артикул

Название

Примечание

Количество

GUARD INSTALLATION, PH21C00020F1

1шт.

1

PH21C00015F1

LATHE

COVER ASSY, SIDE

1шт.

2

PW21C01801F1

COVER ASSY

1шт.

PW21C01802P1

COVER ASSY

R/H -- Not Shown

1шт.

PM21C01233P1

RUBBER

Not Shown

1шт.

2427P1836D32

WEATHERSTRIP

950mm Long (37-25/64 in) -- Not Shown

1шт.

PW21C01629P1

FOAM INSULATION

Not Shown

1шт.

3

PH22C00009F1

COVER ASSY

1шт.

3-1

PH22C01136P1

COWLING

1шт.

3-2

PW22C01067P1

LOCK

1шт.

3-3

PH22C01023P1

BOLT

4шт.

3-4

ZN18C05004

NUT

4шт.

3-5

ZW26X05000

LOCK WASHER

LOCK

4шт.

3-6

ZW16H05000

WASHER

4шт.

3-7

PM21C01268F1

LOCK

ASSY

1шт.

3-7a

YR22C01025P2

LOCK

1шт.

3-7b

PM21C01269P1

PLATE

1шт.

3-8

PW22C01160P2

BRACKET

GUIDE

1шт.

3-9

PH22C01108P1

HINGE

1шт.

3-10

PW21C01413P1

CAPSCREW

CAP

2шт.

3-11

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

2шт.

3-12

ZW26X08000

LOCK WASHER

Lock

2шт.

3-13

ZN18C08007

NUT

2шт.

3-14

PH22C01182P2

FOAM INSULATION

1шт.

3-15

PH22C01183P1

FOAM INSULATION

1шт.

3-16

PH22C01186P1

FOAM INSULATION

1шт.

3-17

PH22C01185P1

FOAM INSULATION

1шт.

3-19

PH21C01160D3

WEATHERSTRIP

1шт.

3-22

PM22C01013D4

WEATHERSEAL STRIP

1шт.

4

PH21C00016F1

COVER ASSY

COVER ASSY,L/H

1шт.

4-1

PH21C01576P1

COVER ASSY

COVER ASSY

1шт.

4-2

PM21C01233P1

RUBBER

1шт.

4-3

YT21C01039DM

WEATHERSTRIP

1шт.

4-4

PW21C01683P1

FOAM INSULATION

1шт.

4-5

PH21C01398P1

FOAM INSULATION

1шт.

5

PH21C01387F1

COVER ASSY

COVER ASSY

1шт.

5-1

PH21C01316P1

COVER

COVER

1шт.

5-2

YZ21C01094D8

WEATHERSTRIP

1шт.

5-3

PM21C01152DR

WEATHERSTRIP

1шт.

5-4

PY21C01007DN

INSULATING PANEL

1шт.

5-5

PW21C01718D1

RUBBER

1шт.

5-6

PE21C01135D3

TRIM PANEL

1шт.

6

PH21C01470F1

COVER

GUARD ASSY

1шт.

6-1

PH21C01440P1

COVER

COVER

1шт.

6-2

2427Z2106D1

WEATHERSTRIP

1шт.

6-4

PH21C01482P2

FOAM INSULATION

1шт.

6-5

PH21C01483P1

FOAM INSULATION

1шт.

6-6

PH21C01507P1

FOAM INSULATION

1шт.

6-7

PH21C01460P1

STAY

1шт.

6-8

YR21C01123P1

COLLAR

CLIP

1шт.

6-9

2419R9D2

COTTER PIN

OD 08mm x 27.7mm Long

1шт.

6-10

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

1шт.

9

PH21C01352F1

COVER ASSY

1шт.

9-1

PH21C01416P1

COVER

COVER

1шт.

9-2

PH21C01400P1

FOAM INSULATION

1шт.

9-3

PH21C01531P1

WEATHERSTRIP

1шт.

12

PH21C01324P3

STAY

STAY

1шт.

22

ZS18C10035

SCREW,Hex, M10 x 35mm

CAP

3шт.

23

ZW26X10000

LOCK WASHER

6шт.

24

ZW16P10000

WASHER

3шт.

34

ZS18C10025

SCREW,Hex, M10 x 25mm

3шт.

35

YN02C01299P1

BOLT

M12x1.75x35mm (Incls. Washer & Lockwasher)

4шт.

40

PA41C01005D1

BOLT

SEMS

3шт.

41

YT21C01187P2

WASHER

8шт.

45

ZW16P08000

WASHER

ID 08 x OD 17 x Th 1.6mm

1шт.

46

2419R9D2

COTTER PIN

OD 08mm x 27.7mm Long

1шт.

47

PA41C01005D3

BOLT

SEMS

5шт.

51

2418T12346

WASHER

ID 11 x OD 30 x Th 3.2mm

3шт.

59

PM20P01083P1

GROMMET

1шт.

60

PH22C01194P1

STAY

1шт.

61

PA21C01133P1

BOLT

SEMS

3шт.

69

PA41C01005D2

BOLT (STEP)

SEMS

1шт.

70

ZM73C10025

BOLT,M10x25mm - Course Thread

M10x1.50x25mm (Incls. Washer)

1шт.
