(07-004) - VALVE ASSY, CONTROL (ARM CONFLUENCE) (PH30V00061F1)

Запчасти Case CX50B (07-004) - VALVE ASSY, CONTROL (ARM CONFLUENCE) (PH30V00061F1) ELECTRICAL AND HYDRAULIC COMPONENTS

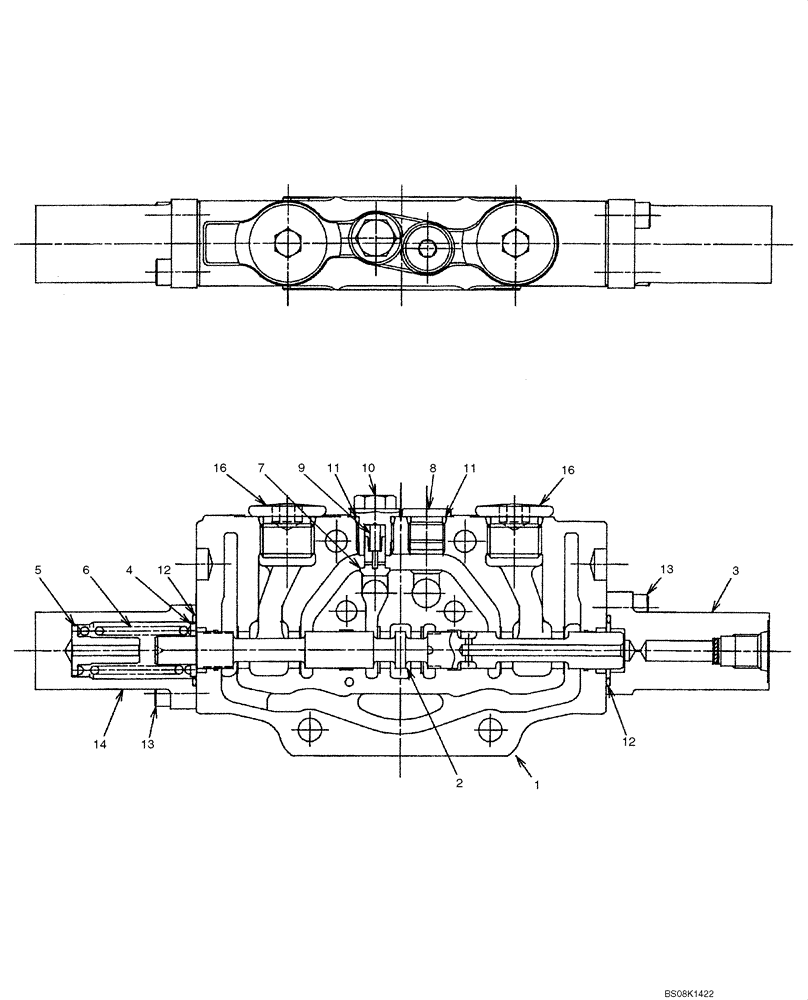

Схема запчастей Case CX50B - (07-004) - VALVE ASSY, CONTROL (ARM CONFLUENCE) (PH30V00061F1) ELECTRICAL AND HYDRAULIC COMPONENTS
13
14
4
12
7
12
6
13
2
1
9
11
10
5
3
11
8
16
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PH30V00061F1

VALVE

VALVE ASSY, CONTROL (ARM CONFLUENCE)

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

3

PH30V00061S003

CAP

1шт.

4

2436R919S10

SEAT

SPRING, SEAT

1шт.

5

PH30V00053S005

VALVE SEAT

SPRING, SEAT

1шт.

6

PH30V00053S006

SPRING

SPRING

1шт.

7

PH30V00053S007

POPPET

POPPET

1шт.

8

PH30V00055S007

PLUG

PLUG

1шт.

9

PH30V00053S009

SPRING

SPRING

1шт.

10

PH30V00053S010

PLUG

PLUG

1шт.

11

2436U1192S19

O-RING

2шт.

12

2436R668S3

O-RING

2шт.

13

ZS23C06018

SCREW,Hex Socket Head, M6 x 18mm

CAP

4шт.

14

PH30V00061S014

CAP

1шт.

16

NSS

NOT SOLD SEPARAT

PLUG ASSY

2шт.
