Запчасти Case CX50B (07-003) - VALVE ASSY, CONTROL (SLEWING) (PH30V00062F1, PH30V00062F2) ELECTRICAL AND HYDRAULIC COMPONENTS

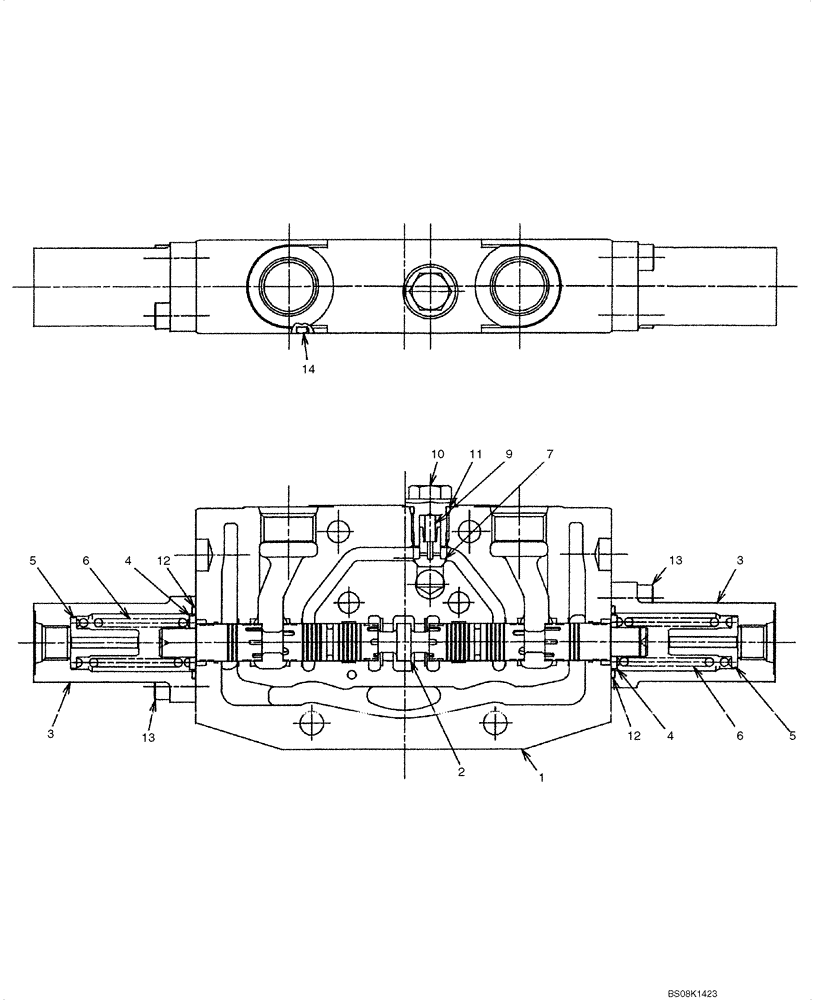

Схема запчастей Case CX50B - (07-003) - VALVE ASSY, CONTROL (SLEWING) (PH30V00062F1, PH30V00062F2) ELECTRICAL AND HYDRAULIC COMPONENTS
11
7
1
6
4
13
13
9
4
3
3
10
5
12
2
6
12
14
5

Артикул

Название

Примечание

Количество

PH30V00062F1

VALVE ASSY, CONTROL (SLEWING)

1шт.

PH30V00062F2

VALVE

VALVE ASSY, CONTROL (SLEWING)

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

3

PH30V00053S003

CAP

CAP

2шт.

4

2436R919S10

SEAT

SPRING, SEAT

2шт.

5

PH30V00053S005

VALVE SEAT

SPRING, SEAT

2шт.

6

PH30V00053S006

SPRING

SPRING

2шт.

7

PH30V00053S007

POPPET

POPPET

1шт.

9

PH30V00053S009

SPRING

SPRING

1шт.

10

PH30V00053S010

PLUG

PLUG

1шт.

11

2436U1192S19

O-RING

1шт.

12

2436R668S3

O-RING

2шт.

13

ZS23C06018

SCREW,Hex Socket Head, M6 x 18mm

CAP

4шт.

14

ZD11G07000

O-RING,69.40mm ID x 75.60mm OD x 3.10mm

1шт.

Выбрано товаров: 15
