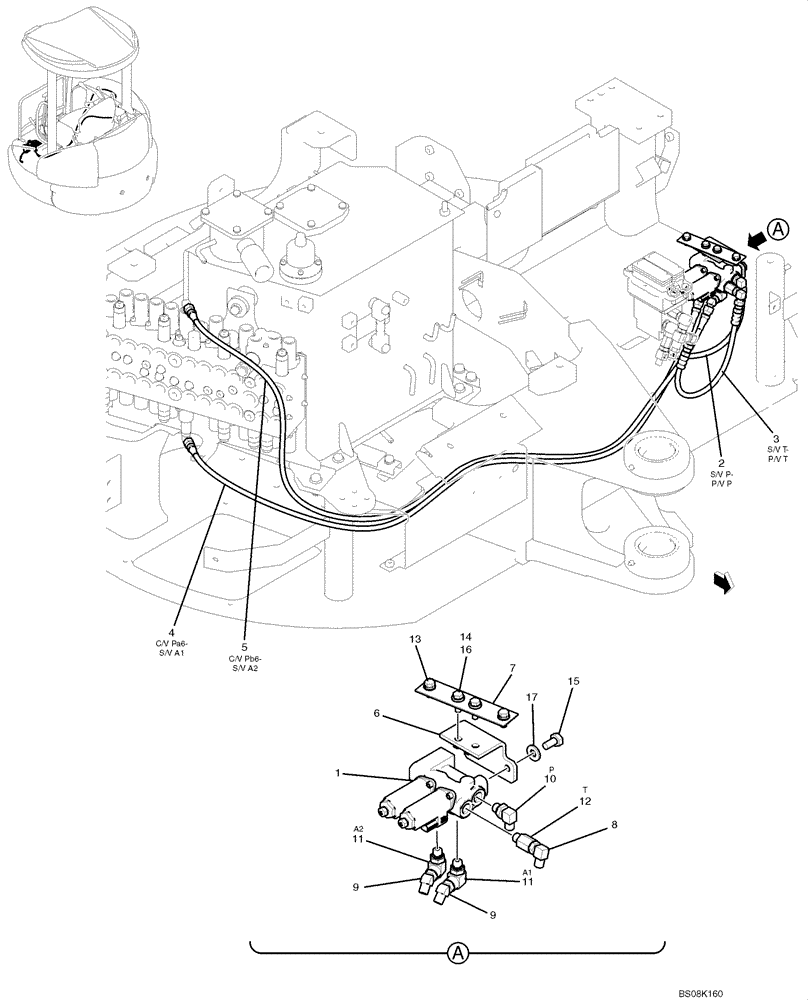

Запчасти Case CX50B (01-045) - CONTROL LINES, REMOTE (PROPORTIONAL) (PY64H00072F1) (05) - SUPERSTRUCTURE

CONTROL LINES, VALVE, PY64H00072F1

1шт.

1

PW35V00002F1

SOLENOID VALVE

VALVE ASSY, SOLENOID, See Figure 07-047

1шт.

2

HX24L04032DX

HOSE ASSY.

1шт.

3

HX22L04042DX

HOSE

1шт.

4

HX24L04165DX

HOSE

1шт.

5

HX24L04200DX

HOSE

1шт.

6

PW64H01103P1

BRACKET, SUPPORTING

BRACKET

1шт.

7

PW64H01089P1

SUPPORT

1шт.

8

HH35S04004G1

90 ELBOW

1шт.

9

HH45S04004G1

45 ELBOW

2шт.

10

HH35S04004G2

90 ELBOW

(WITH FILTER)

1шт.

11

2444Z2894

90 ELBOW

2шт.

12

2444Z2525

HYD CONNECTOR

1шт.

13

ZM22C08020

BOLT

2шт.

14

ZS18C08025

SCREW,Hex, M8 x 25mm

2шт.

15

ZS18C10020

SCREW,Hex, M10 x 20mm

2шт.

16

ZW16H08000

WASHER

2шт.

17

ZW16H10000

WASHER

2шт.
