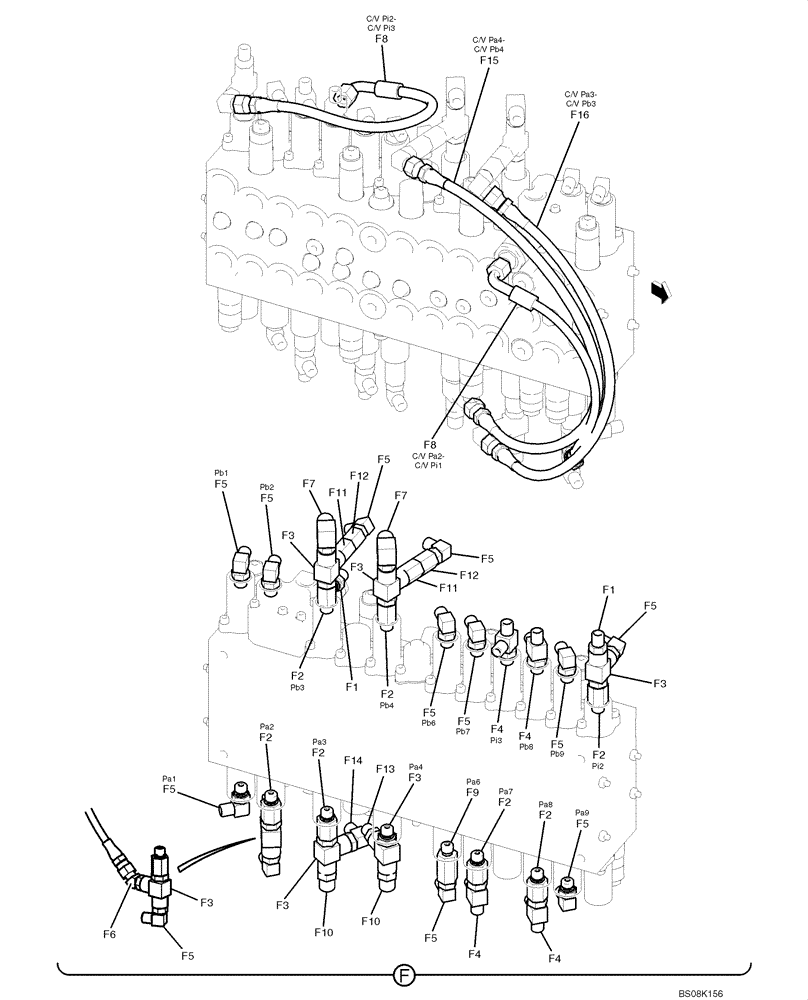

Запчасти Case CX50B (01-041) - CONTROL LINES, REMOTE (MULTI) (PY06H00011F1) (05) - SUPERSTRUCTURE

CONTROL LINES, MAIN, PY06H00011F1

1шт.

f1

HH25S04004G1

HYD CONNECTOR

2шт.

f2

2444Z2525

HYD CONNECTOR

7шт.

f3

HH55Q04004G1

TEE,1/4" ORB x 1/4" JIC x 1/4" JIC

6шт.

f4

HH55L04004G1

TEE

4шт.

f5

HH35S04004G1

90 ELBOW

12шт.

f6

HH45S04004G1

45 ELBOW

1шт.

f7

HH35S06004G1

90 ELBOW

2шт.

f8

HX34L04038DX

HOSE,6.3mm ID x 380mm L

2шт.

f9

2444T2524D2

HYD CONNECTOR

1шт.

f10

HH25S06004G3

HYD CONNECTOR

2шт.

f11

HH25R04004G5

HYD CONNECTOR

(WITH FILTER)

2шт.

f12

YW06H01001P1

HYD CONNECTOR

CONNECTOR

2шт.

f13

HH25S04004G3

HYD CONNECTOR

(WITH FILTER)

1шт.

f14

HH35S04004G2

90 ELBOW

(WITH FILTER)

1шт.

f15

HX24L04072DX

HOSE ASSY.

1шт.

f16

HX24L04064DX

FLEXIBLE HOSE

1шт.
