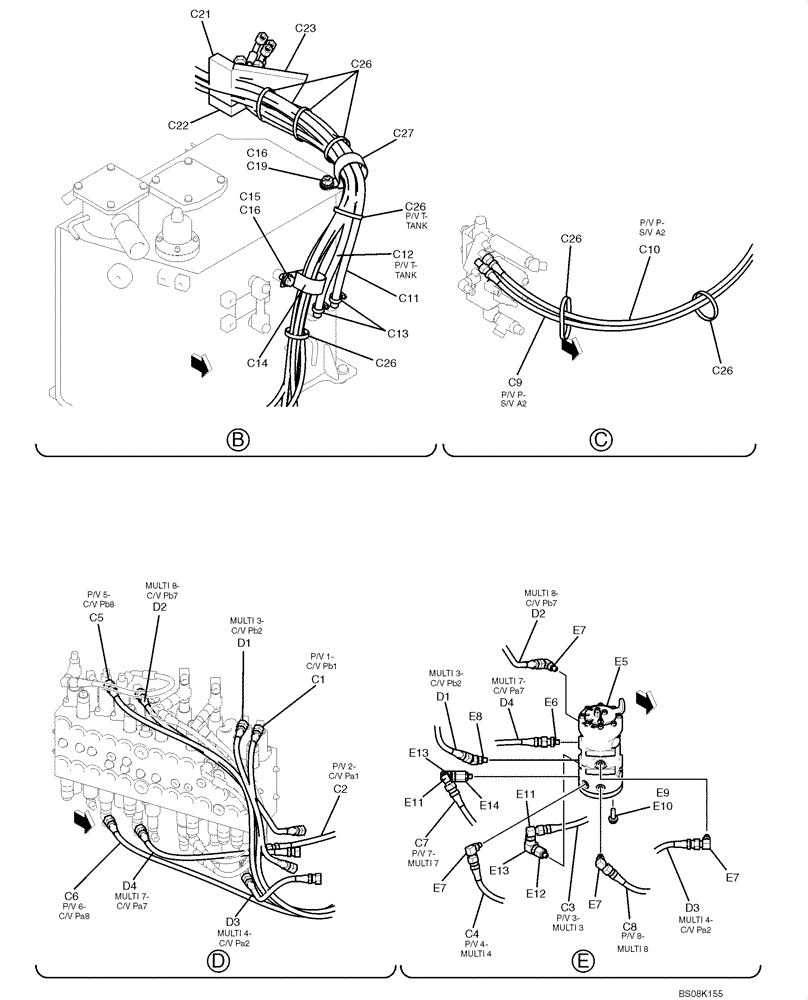

Запчасти Case CX50B (01-040) - CONTROL LINES, REMOTE (MULTI) (PY68H00020F1, PY64H00060F1, PY64H00043F1) (05) - SUPERSTRUCTURE

CONTROL LINES, REMOTE, PY68H00020F1

1шт.

c1

HX33L04200DR

HOSE

1шт.

c2

HX23L04130DB

HOSE

1шт.

c3

HX33L04130DG

HOSE

1шт.

c4

HX23L04155DH

HOSE

1шт.

c5

HX23L04380DH

HOSE

1шт.

c6

HX23L04350DR

HYDRAULIC HOSE

HOSE

1шт.

c7

HX23L04310DB

HYDRAULIC HOSE

HOSE

1шт.

c8

HX23L04310DG

HOSE

1шт.

c9

HX34L04195DX

HOSE,6.3mm ID x 1950mm L

1шт.

c10

HX24L04350DX

HOSE,6.3mm ID x 3500mm L

1шт.

c11

PW68H01023DM

HYDRAULIC HOSE

HOSE

1шт.

c12

PW68H01023DN

HYDRAULIC HOSE

HOSE

1шт.

c13

ZC16X01800

CLIP

2шт.

c14

ZC46X50014

CLIP

1шт.

c15

ZS18C12020

SCREW,Hex, M12 x 20mm

1шт.

c16

ZW16H12000

WASHER

2шт.

c19

ZN18C12010

NUT

1шт.

c21

PM68H01054P1

FOAM INSULATION

1шт.

c22

PM68H01055P1

FOAM INSULATION

1шт.

c23

PH68H01042P1

RUBBER

1шт.

c26

PY01P01043D8

CABLE TIE,102mm L

7шт.

c27

YW11P01010P1

CLIP

1шт.

CONTROL LINES, MULTI, PY64H00060F1

1шт.

d1

HX24L04048DX

HOSE ASSY.

1шт.

d2

HX24L04060DX

HOSE

1шт.

d3

HX24L04032DX

HOSE ASSY.

1шт.

d4

HX24L04044DX

HOSE

1шт.

VALVE INSTALLATION, PY64H00043F1

1шт.

e5

PX30V00060F1

CONTROL VALVE

See Figure 07-050

1шт.

e6

HH25S04002G2

HYD CONNECTOR

1шт.

e7

HH35S04002G1

ELBOW

4шт.

e8

HH45S04002G1

45 ELBOW

1шт.

e9

ZS18C08025

SCREW,Hex, M8 x 25mm

CAP

4шт.

e10

ZW16H08000

WASHER

4шт.

e11

HH35S04004G1

90 ELBOW

2шт.

e12

HH25R02004G2

CONNECTION

1шт.

e13

2444Z2894

90 ELBOW

2шт.

e14

2444Z2335

CONNECTION

1шт.
