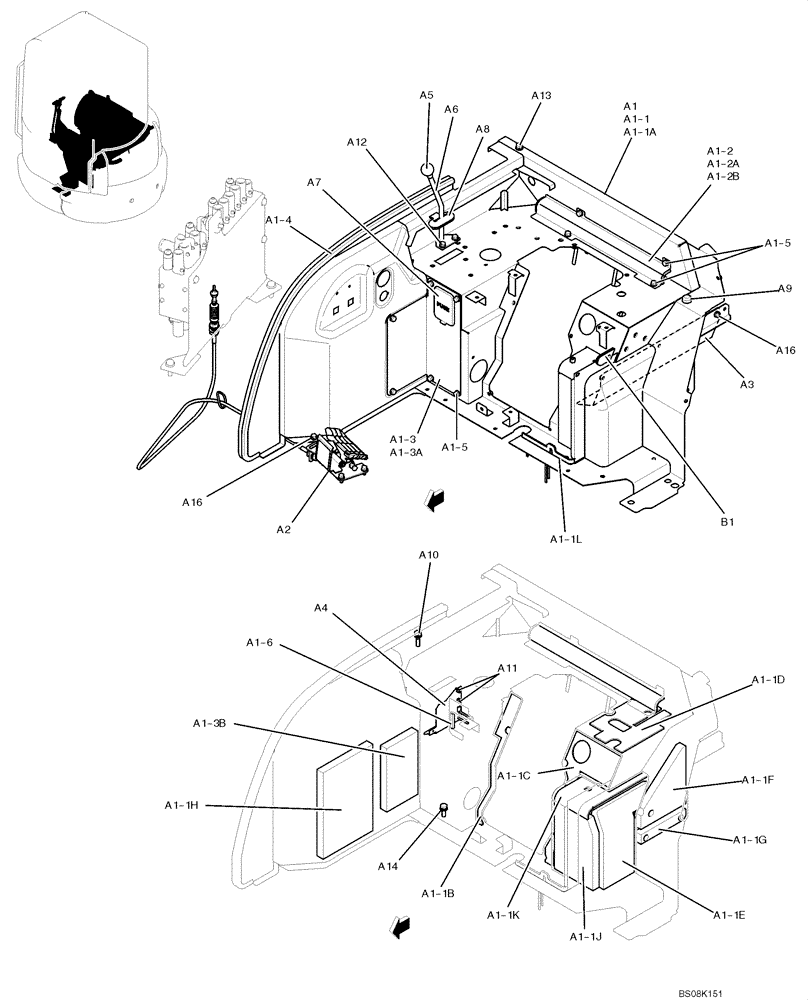

Запчасти Case CX50B (01-036) - STAND ASSY, CONTROL (CAB) (PH03M00088F1, PW03M01716F1) (05) - SUPERSTRUCTURE

.

CONTROLS, OPERATORS (CAB), PH03M00088F1

1шт.

a1

PH10M00006F1

STAND ASSY, CONTROL

1шт.

a1-1

PH10M01136F1

STAND

STAND ASSY

1шт.

a1-1a

PH10M01132P1

STAND

STAND

1шт.

a1-1b

PW10M01202P1

FOAM INSULATION

1шт.

a1-1c

PW10M01103P1

FOAM INSULATION

1шт.

a1-1d

PH10M01101P1

FOAM INSULATION

1шт.

a1-1e

PH10M01082P1

FOAM INSULATION

1шт.

a1-1f

PH10M01083P1

FOAM INSULATION

1шт.

a1-1g

PH10M01084P1

FOAM INSULATION

1шт.

a1-1h

PW10M01203P1

FOAM INSULATION

1шт.

a1-1j

PH10M01085P1

FOAM INSULATION

1шт.

a1-1k

PW10M01181P1

FOAM INSULATION

1шт.

a1-1l

PW10M01279P1

RUBBER

RUBBER

1шт.

a1-2

PH03M01468F1

COVER ASSY

COVER ASSY

1шт.

a1-2a

PH03M01467P1

COVER

COVER

1шт.

a1-2b

PH03M01472P1

RUBBER

1шт.

a1-3

PW03M01586F1

COVER ASSY

COVER ASSY

1шт.

a1-3a

PH03M01432P2

COVER

COVER

1шт.

a1-3b

PW10M01177P1

FOAM INSULATION

1шт.

a1-4

YJ21C01080DF

WEATHERSTRIP

1шт.

a1-5

PA03M01093D2

BOLT

SEMS

10шт.

a1-6

PM22C01020DR

TRIM PANEL

1шт.

a2

PH55M00005F1

PEDAL INSTALLATION, See Figure 01-037

1шт.

a3

PH10M01067P1

COVER

COVER

1шт.

a4

PH03M01435P1

COVER

1шт.

a5

PV03M01043P1

HANDLE GRIP

1шт.

a6

PW03M01624P1

LEVER

1шт.

a7

PW03M01543P1

GROMMET

1шт.

a8

PW03M01924P1

GROMMET

GROMMET

1шт.

a9

PW03M01557P1

CAP

1шт.

a10

ZM22C10040

BOLT

SEMS

1шт.

a11

ZM61C06012

BOLT

SEMS

2шт.

a12

ZM22C08016

BOLT

SEMS

2шт.

a13

PM06C01045D3

BOLT

SEMS

1шт.

a14

ZM22C10030

BOLT

SEMS

1шт.

a15

ZM22C12030

BOLT

SEMS

1шт.

a16

ZM22C08020

BOLT

SEMS

4шт.

PW03M01716F1

GROMMET

ASSY

1шт.

b1

PW03M01712P1

GROMMET

1шт.
