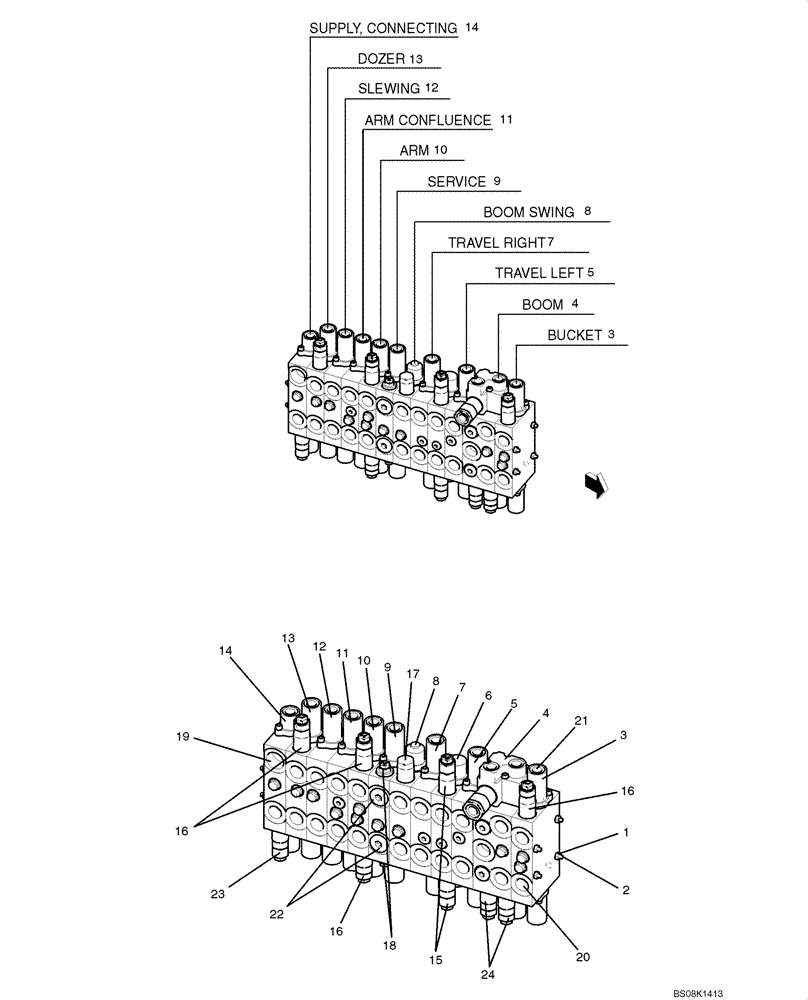

Запчасти Case CX50B (07-001) - VALVE ASSY, CONTROL (PH30V00051F1, PH30V00051F2) ELECTRICAL AND HYDRAULIC COMPONENTS

PH30V00051F1

VALVE ASSY, CONTROL

1шт.

PH30V00051F2

VALVE

ASSY, CONTROL

1шт.

1

ZN18C08007

NUT

8шт.

2

PH30V00051S002

SCREW

ROD, TIE

4шт.

3

PH30V00053F1

VALVE

VALVE ASSY, CONTROL (BUCKET), See Figure 07-012

1шт.

4

PH30V00054F1

VALVE

VALVE ASSY, CONTROL (BOOM), See Figure 07-011

1шт.

5

PH30V00055F1

VALVE

VALVE ASSY, CONTROL (TRAVEL LEFT), See Figure 07-010

1шт.

6

PH30V00056F1

VALVE

VALVE ASSY, CONTROL (INLET), See Figure 07-013

1шт.

7

PH30V00057F1

VALVE

VALVE ASSY, CONTROL (TRAVEL RIGHT), See Figure 07-008

1шт.

8

PY30V00057F1

VALVE ASSY, CONTROL (BOOM SWING), See Figure 07-007

1шт.

9

PH30V00059F1

VALVE

VALVE ASSY, CONTROL (SERVICE), See Figure 07-006

1шт.

10

PH30V00060F1

VALVE

VALVE ASSY, CONTROL (ARM), See Figure 07-005

1шт.

11

PH30V00061F1

VALVE

VALVE ASSY, CONTROL (ARM CONFLUENCE), See Figure 07-004

1шт.

12

PH30V00062F1

VALVE ASSY, CONTROL (SLEWING), See Figure 07-003

1шт.

13

PH30V00063F1

VALVE

VALVE ASSY, CONTROL (DOZER), See Figure 07-002

1шт.

14

PH30V00064F1

VALVE

VALVE ASSY, CONTROL (SUPPLY, CONNECTING), See Figure 07-009

1шт.

15

PH22V00014F1

VALVE

VALVE ASSY, MAIN RELIEF, See Figure 07-014

2шт.

16

PY22V00010F1

VALVE

VALVE ASSY, RELIEF, See Figure 07-015

6шт.

17

PH22V00013F1

VALVE

VALVE ASSY, ANT 1 VOID, See Figure 07-016

1шт.

18

PH50T00002F1

PLUG

VALVE ASSY, SHUT OFF, See Figure 07-17

2шт.

19

2436U2937S17

PLUG

PLUG

1шт.

20

YR30V00014S010

PLUG

20шт.

21

2436U2937S18

PLUG

22шт.

22

PH22V00014F2

VALVE

VALVE ASSY, MAIN RELIEF, See Figure 07-014

1шт.

23

PY22V00010F2

VALVE

VALVE ASSY, RELIEF, See Figure 07-015

2шт.
