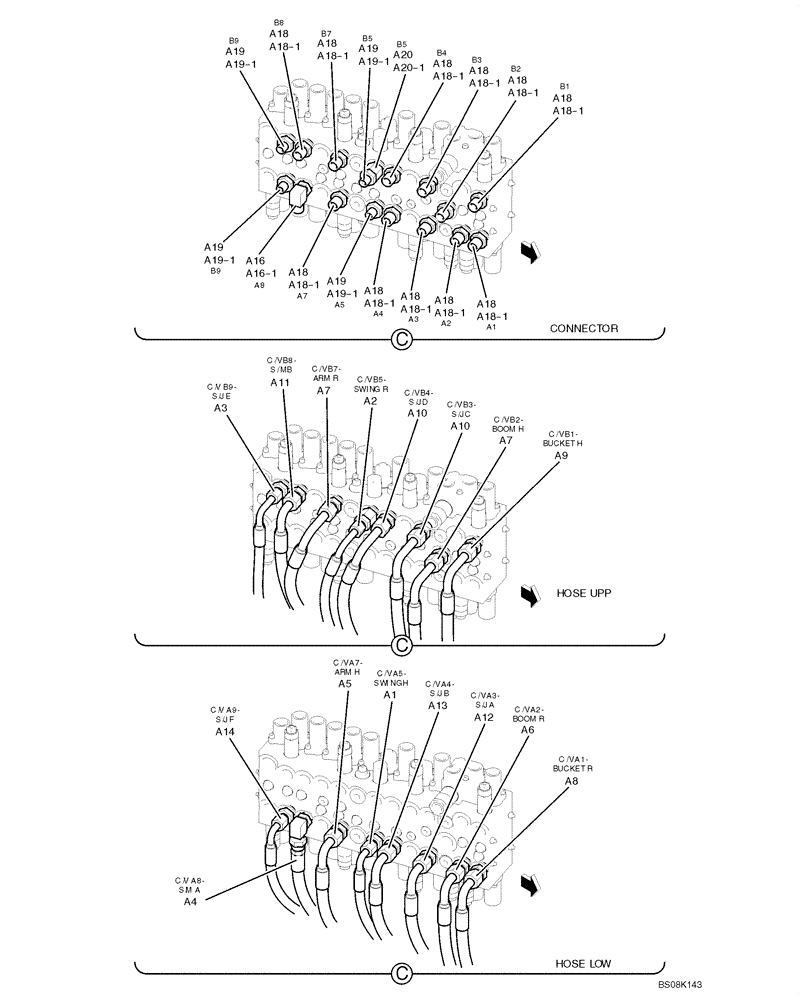

Запчасти Case CX50B (01-028) - HYDRAULIC LINES, UPPER (PY03H00014F1) (05) - SUPERSTRUCTURE

HYDRAULIC LINES, UPPER, PY03H00014F1

1шт.

a1

HX35L06060DY

HOSE

1шт.

a2

PW03H01101D9

HOSE

1шт.

a3

PW03H01101DA

HOSE

1шт.

a4

HX25L08105DY

HOSE,12.7mm ID x 1050mm L

1шт.

a5

PH03H01113D3

HOSE,12.7mm ID x 2680mm L

1шт.

a6

PH03H01113D1

HOSE,12.7mm ID x 2640mm L

1шт.

a7

PH03H01112D2

HOSE,12.7mm ID x 2760mm L

2шт.

a8

PH03H01111D1

HOSE,12.7mm ID x 2530mm L

1шт.

a9

PH03H01110D1

HOSE,12.7mm ID x 2660mm L

1шт.

a10

PH03H01107D1

HOSE,12.7mm ID x 1250mm L

2шт.

a11

HX35L08125DX

HOSE

1шт.

a12

HX35L08120DX

HOSE,12.7mm ID x 1200mm L

1шт.

a13

HX35L08110DX

HOSE

1шт.

a14

HX35L06120DY

HOSE,9.5mm ID x 1200mm L

1шт.

a16

HH35S08008G1

90 ELBOW

1шт.

a16-1

ZD12P01800

O-RING

1шт.

a18

HH25S08008G1

HYD CONNECTOR

11шт.

a18-1

ZD12P01800

O-RING

1шт.

a19

HH25S06008G1

HYD CONNECTOR

4шт.

a19-1

ZD12P01800

O-RING

1шт.

a20

HH25R08008GB

HYD CONNECTOR

1шт.

a20-1

ZD12P01800

O-RING

1шт.
