(01-021) - POWER TAKE-OFF ASSY (COOLER) (PH30P00010F1, PH30P00009F1)

Запчасти Case CX50B (01-021) - POWER TAKE-OFF ASSY (COOLER) (PH30P00010F1, PH30P00009F1) (05) - SUPERSTRUCTURE

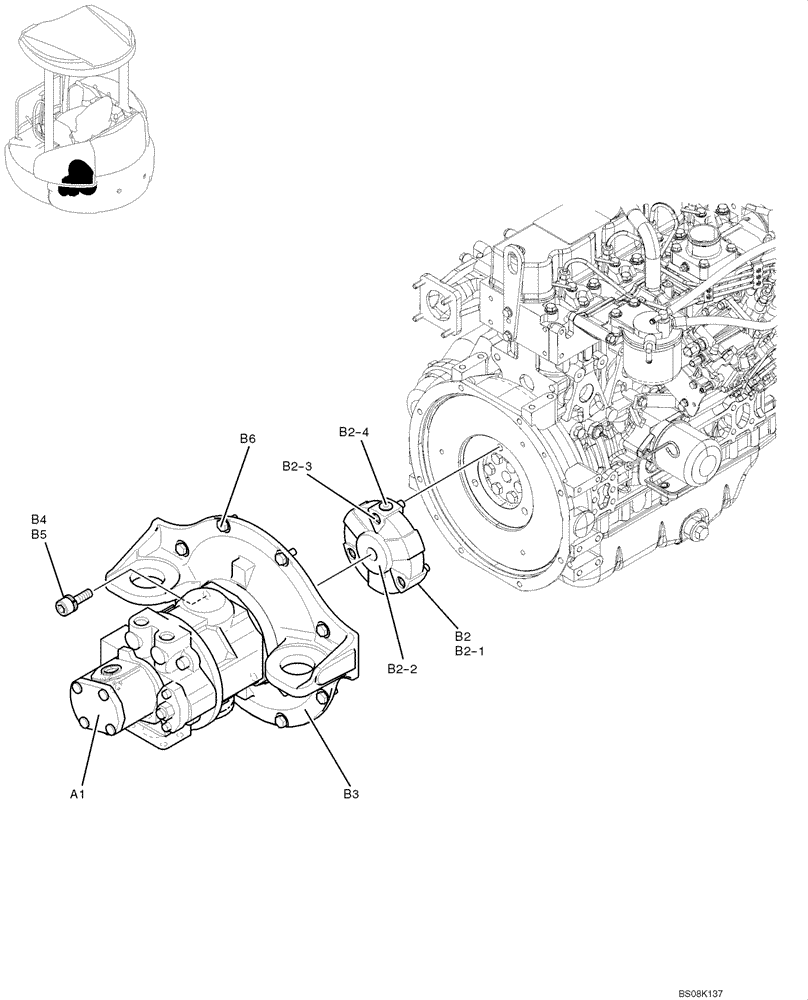

Схема запчастей Case CX50B - (01-021) - POWER TAKE-OFF ASSY (COOLER) (PH30P00010F1, PH30P00009F1) (05) - SUPERSTRUCTURE
b5
b2-4
b3
b2-3
b4
b6
b2
b2-2
b2-1
a1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

POWER TAKE-OFF ASSY, PH30P00010F1

1шт.

a1

PH10V00015F1

HYDRAULIC PUMP

See Figure 07-027

1шт.

POWER TAKE-OFF ASSY, PH30P00009F1

1шт.

b2

PW30P01007F1

COUPLING

ASSY

1шт.

b2-1

PW30P01002S001

COUPLING

1шт.

b2-2

PW30P01002S002

HUB

1шт.

b2-3

PW30P01002S003

CAPSCREW,Hex Socket Head, M12 x 40mm

CAP

3шт.

b2-4

PY30P01003S004

CAPSCREW,Hex Socket Head, M12 x 35mm

CAP

3шт.

b3

PW30P01005P2

BRACKET

BRACKET

1шт.

b4

PV17M01003D1

SCREW

CAP

2шт.

b5

ZW16K12000

WASHER

2шт.

b6

ZS18C10025

SCREW,Hex, M10 x 25mm

8шт.
