Запчасти Case CX50B (01-003) - BRACKET ASSY, SWING (NIBBLER & BREAKER) (PY02B00118F1, PY02B00116F1, PY02B00109F1) (05) - SUPERSTRUCTURE

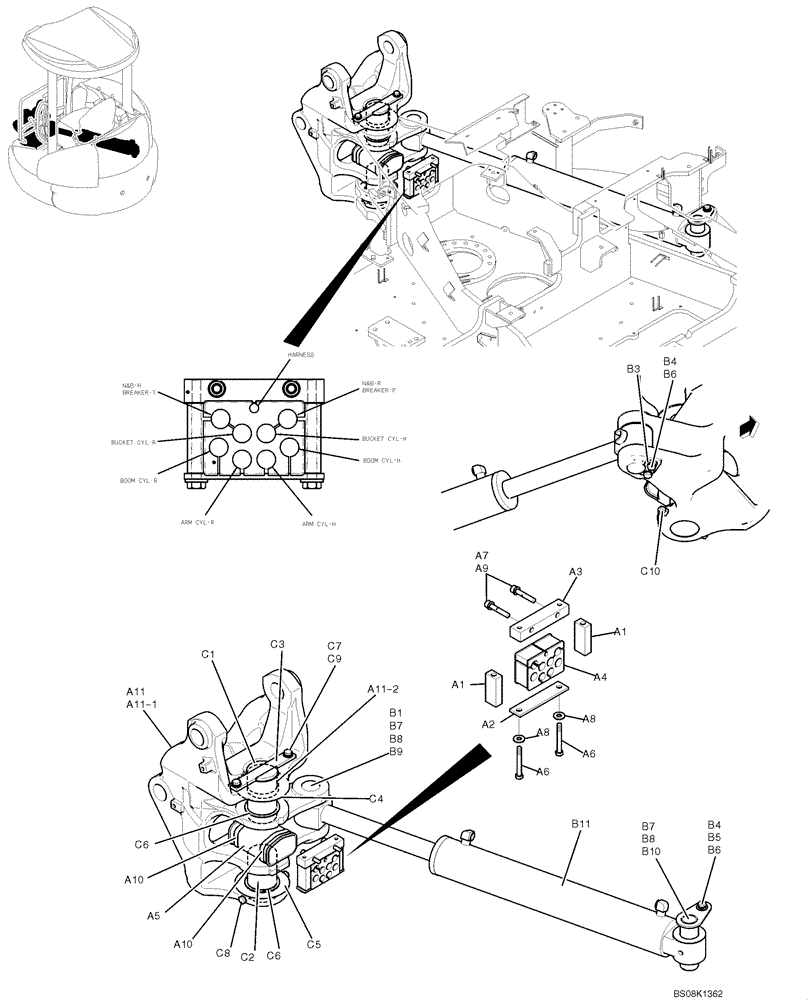

Схема запчастей Case CX50B - (01-003) - BRACKET ASSY, SWING (NIBBLER & BREAKER) (PY02B00118F1, PY02B00116F1, PY02B00109F1) (05) - SUPERSTRUCTURE
c6
c3
c4
a1
a6
a2
c8
c2
b4
b8
b10
b3
b7
b1
a5
a7
a11
c6
c5
a11-2
b6
b5
a11-1
b8
a8
a8
c9
c10
a1
b6
b7
c1
b4
a9
a10
a10
b9
a3
c7
a4
b11
a6

Артикул

Название

Примечание

Количество

BRACKET GROUP, SWING, PY02B00118F1

1шт.

a1

PY02B01247P1

PLATE

2шт.

a2

PY02B01244P1

PLATE

1шт.

a3

PY02B01245P1

PLATE

PLATE

1шт.

a4

PY02B01246P1

RUBBER INSULATOR

RUBBER

1шт.

a5

PY02B01168P2

GROMMET

1шт.

a6

ZS18C10110

SCREW,Hex, M10 x 110mm

CAP

2шт.

a7

ZS28C10055

SCREW,Hex Socket Head, M10 x 55mm

CAP

2шт.

a8

ZW16H10000

WASHER

2шт.

a9

ZW26X10000

LOCK WASHER

2шт.

a10

YX03H01046P1

CLIP

2шт.

a11

PY02B00093F1

BRACKET

BRACKET ASSY, SWING

1шт.

a11-1

PY02B00094P1

SWING

1шт.

a11-2

PY02B01146P1

BUSHING,80mm ID x 90mm OD x 40.5mm L

1шт.

CYLINDER INSTALLATION, PY02B00116F1

1шт.

b1

PY02B01163P1

PIN,50mm OD x 164mm L

1шт.

b3

PH02B01065P1

PLATE

1шт.

b4

ZS18C12025

SCREW,Hex, M12 x 25mm

CAP

3шт.

b5

2418T12345

WASHER

1шт.

b6

ZW26X12000

LOCK WASHER

3шт.

b7

PH02B01067P1

SHIM,0.5mm Thk

6шт.

b8

2418T6856D3

SHIM

(0.9)

2шт.

b9

PY02B01187P1

SHIM,2.0mm Thk

2шт.

b10

PY02B01241P1

PIN

PIN

1шт.

b11

PH01V00031F1

CYLINDER

ASSY, SWING; See Figure 07-042

1шт.

BRACKET INSTALLATION, SWING, PY02B00109F1

1шт.

c1

PY02B01233P1

PIN,80mm OD x 154mm L

PIN

1шт.

c2

PY02B01234P1

PIN,80mm OD x 140mm L

PIN

1шт.

c3

PY02B01177P1

PLATE

1шт.

c4

PH02B01051P1

WASHER

1шт.

c5

PH02B01066P1

SHIM,0.5mm Thk

1шт.

c6

2445R138D7

SEAL,80mm ID x 95mm OD x 4mm Thk

SEAL, DUST

2шт.

c7

ZS18C12025

SCREW,Hex, M12 x 25mm

CAP

2шт.

c8

HS18C12170G1

SCREW

CAP

1шт.

c9

ZW16H12000

WASHER

2шт.

c10

ZN18C12010

NUT

2шт.

Выбрано товаров: 36
