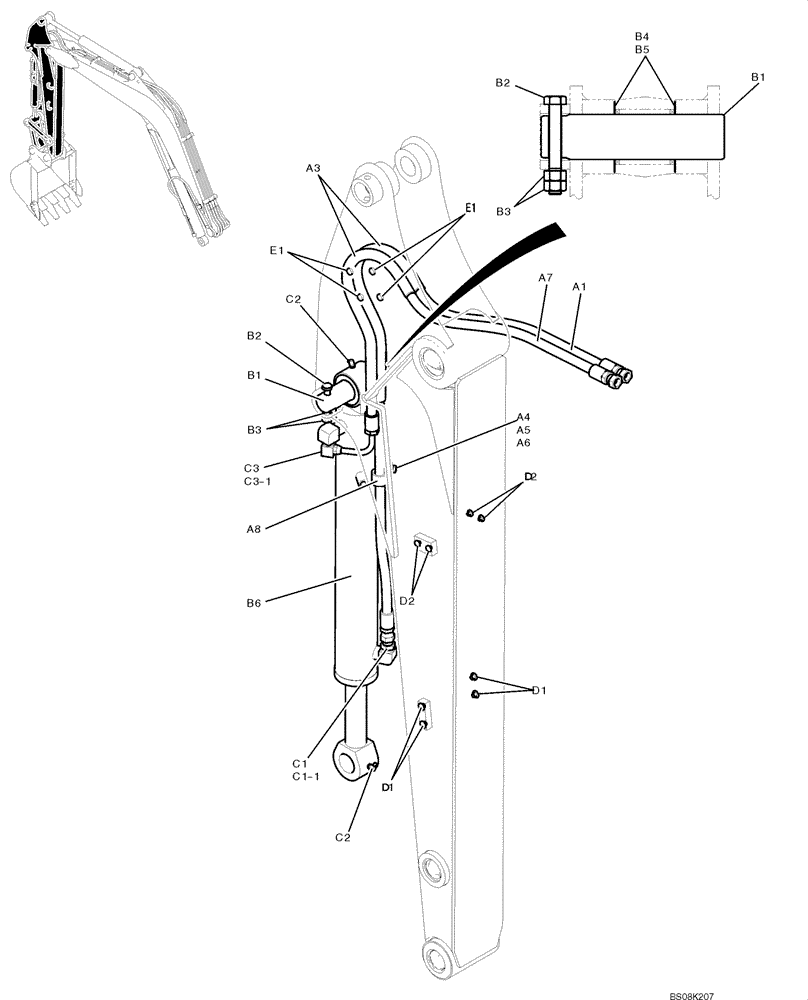

Запчасти Case CX50B (03-007) - HYDRAULIC LINES, ARM 1.56M (5FT 1IN) (PY43H00024F1, PH12B00103F1, PY43H00023F1, PX43H01011F1, PX43H01021F1 Attachments

HYDRAULIC LINES, ARM, PY43H00024F1

1шт.

a1

YJ42H01133DH

HOSE

1шт.

a3

2414Z199D100

PROTECTIVE SLEEVE

HOSE

2шт.

a4

ZS18C08020

SCREW,Hex, M8 x 20mm

1шт.

a5

ZW26X08000

LOCK WASHER

Lock

1шт.

a6

ZW16H08000

WASHER

1шт.

a7

PY43H01021D2

HOSE,12.7mm ID x 1020mm L

1шт.

a8

ZC46X22011

CLIP

1шт.

CYLINDER INSTALLATION, PH12B00103F1

1шт.

b1

PH12B01084P1

PIN

1шт.

b2

HS18C12090G1

SCREW

CAP

1шт.

b3

ZN18C12010

NUT

2шт.

b4

YJ12B01043P1

SHIM,0.5mm Thk

2шт.

b5

B16T0442D61

SHIM,47mm ID x 70mm OD x 0.9mm Thk

1шт.

b6

PY01V00044F1

CYLINDER

ASSY, BUCKET, See Figure 07-040

1шт.

HYDRAULIC LINES, CYLINDER, PY43H00023F1

1шт.

c1

HH25S08008G1

HYD CONNECTOR

1шт.

c1-1

ZD12P01800

O-RING

1шт.

c2

ZG91U02000

LUBE NIPPLE

2шт.

c3

HH35S08008G1

90 ELBOW

1шт.

c3-1

ZD12P01800

O-RING

1шт.

CAP ASSY, PX43H01011F1

1шт.

d1

PV02B01073D4

CAP

4шт.

d2

PV02B01073D2

CAP

4шт.

CAP ASSY, PX43H01021F1

1шт.

e1

PX43H01022P1

CAP

CAP

4шт.
