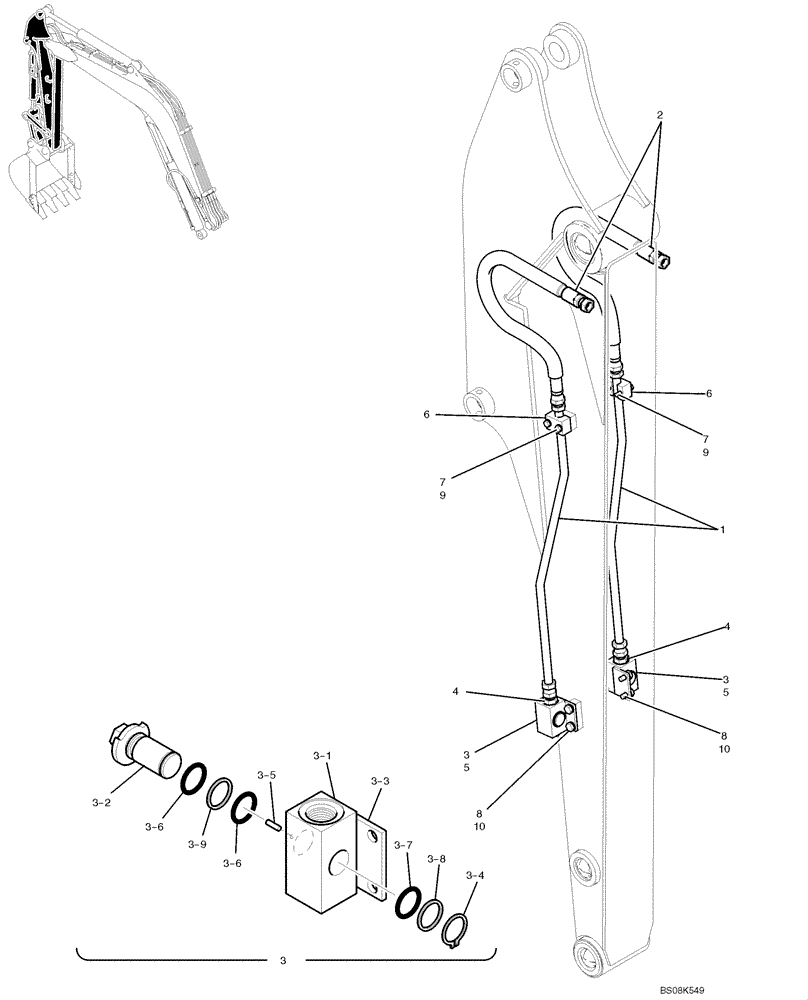

Запчасти Case CX50B (05-029) - HYDRAULIC LINES, ARM 1.87M, (6FT 2 IN) (NIBBLER & BREAKER) (PY43H01018P1) OPTIONAL PARTS

HYDRAULIC LINES, ARM 1.87 M

1шт.

HYDRAULIC LINES, ARM, PY43H01018P1

1шт.

1

PY43H01018P1

TUBE

2шт.

2

HX55L08072DY

HOSE ASSY.

2шт.

3

PF25V00001F2

VALVE

STOP

2шт.

3-1

PF25V00001S001

BODY

Valve, (with 1/2" Pipe Thread)

1шт.

3-2

PF25V00001S002

SHAFT

1шт.

3-3

PF25V00001S003

PLATE

1шт.

3-4

ZR16X03000

SNAP RING

SNAP

1шт.

3-5

ZP26D05010

PIN

SPRING

1шт.

3-6

ZD12G02500

O-RING,24.40mm ID x 30.60mm OD x 3.10mm

2шт.

3-7

ZD12G03000

O-RING,29.40mm ID x 35.60mm OD x 3.10mm

1шт.

3-8

ZD75G03000

BACK-UP RING

1шт.

3-9

ZD75G02500

BACK-UP RING

1шт.

4

HH25S08008G1

HYD CONNECTOR

2шт.

5

ZE72X08000

PLUG

2шт.

6

PX43H01017P1

CLAMP

2шт.

7

ZS18C08040

SCREW,Hex, M8 x 40mm

4шт.

8

ZS18C10020

SCREW,Hex, M10 x 20mm

4шт.

9

ZW26X08000

LOCK WASHER

4шт.

10

ZW26X10000

LOCK WASHER

4шт.
