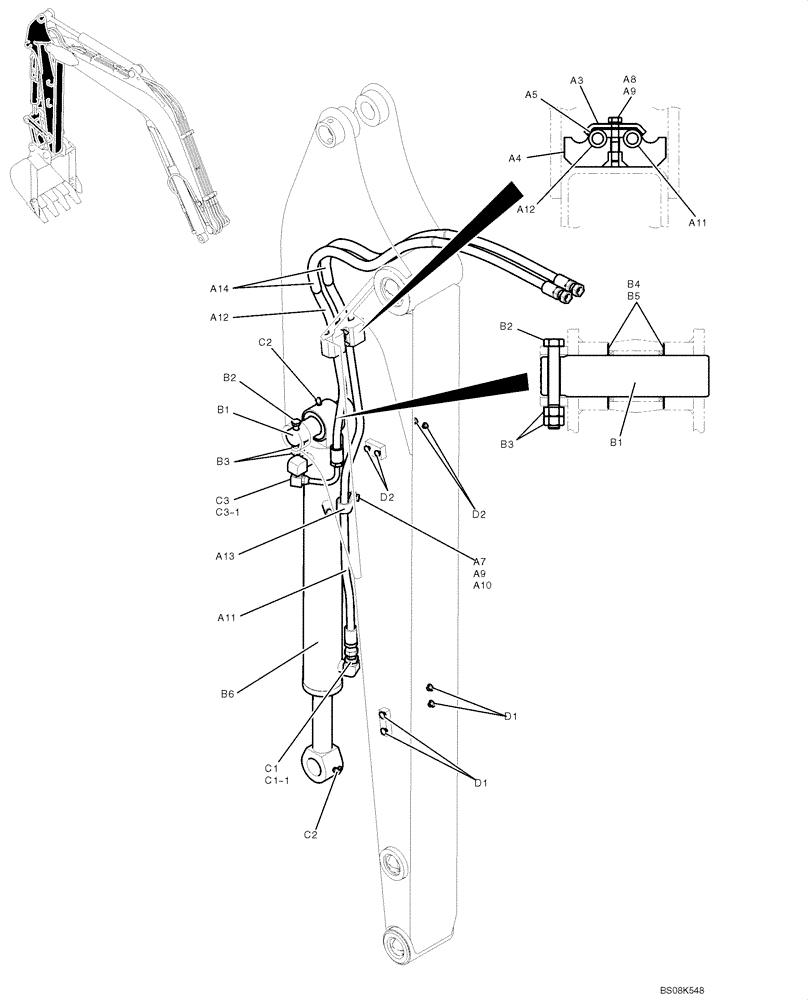

Запчасти Case CX50B (05-028) - HYDRAULIC LINES, ARM 1.87M (6FT 2IN) (PY43H00025F1, PH12B00103F1, PY43H00023F1, PX43H01011F1) OPTIONAL PARTS

HYDRAULIC LINES, 1.32 M ARM, PY43H00025F1

1шт.

a3

YJ43H01027P1

CLAMP

1шт.

a4

YJ43H01038P1

RUBBER

1шт.

a5

YJ43H01026P1

RUBBER

1шт.

a7

ZS18C08020

SCREW,Hex, M8 x 20mm

1шт.

a8

ZS18C08045

SCREW,Hex, M8 x 45mm

2шт.

a9

ZW26X08000

LOCK WASHER

3шт.

a10

ZW16H08000

WASHER

1шт.

a11

YJ42H01133DL

HOSE

HOSE

1шт.

a12

PY43H01021D4

HOSE

HOSE

1шт.

a13

ZC46X22011

CLIP

1шт.

a14

2414Z199D060

PROTECTIVE SLEEVE

2шт.

CYLINDER INSTALLATION, PH12B00103F1

1шт.

b1

PH12B01084P1

PIN

1шт.

b2

HS18C12090G1

SCREW

1шт.

b3

ZN18C12010

NUT

1шт.

b4

YJ12B01043P1

SHIM,0.5mm Thk

1шт.

b5

B16T0442D61

SHIM,47mm ID x 70mm OD x 0.9mm Thk

1шт.

b6

PY01V00047F1

CYLINDER

ASSY, BUCKET, See Figure 07-040

2шт.

HYDRAULIC LINES, CYLINDER, PY43H00023F1

1шт.

c1

HH25S08008G1

HYD CONNECTOR

1шт.

c1-1

ZD12P01800

O-RING

1шт.

c2

ZG91U02000

LUBE NIPPLE

2шт.

c3

HH35S08008G1

90 ELBOW

1шт.

c3-1

ZD12P01800

O-RING

1шт.

CAP ASSY, PX43H01011F1

1шт.

d1

PV02B01073D4

CAP

4шт.

d2

PV02B01073D2

CAP

4шт.
