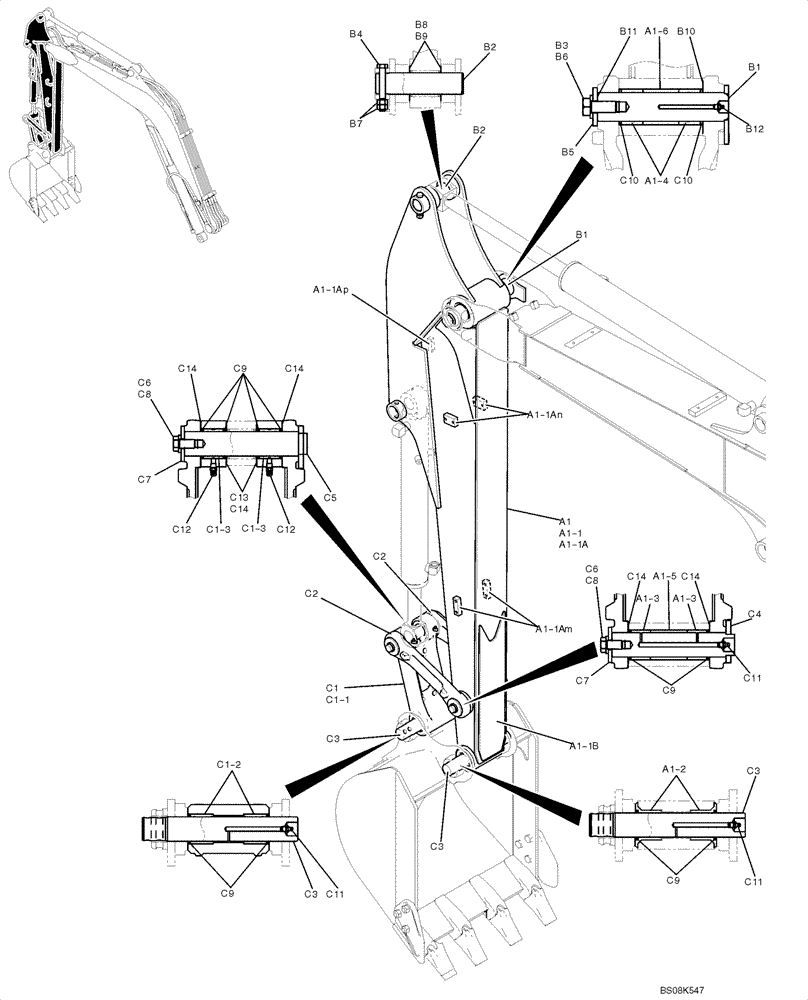

Запчасти Case CX50B (05-027) - ARM ASSY, LONG 1.87 M (6 FT 2 IN) (PY12B00122F1, PY12B00117F1, PY12B00073F1) OPTIONAL PARTS

Long Arm Assembly, 1.87m (6ft 2in)

1шт.

ARM ASSY, LONG, PY12B00122F1

1шт.

a1

PY12B00123F1

ARM

Assembly, Long

1шт.

a1-1

NSS

NOT SOLD SEPARAT

ARM, LONG -- PY12B00124P1

1шт.

a1-1a

NSS

NOT SOLD SEPARAT

ARM, LONG -- PY12B00100P1

1шт.

a1-1am

PV12B01227P1

BLOCK

TAPPED

2шт.

a1-1an

PX12B01185P1

BLOCK

TAPPED

2шт.

a1-1ap

YJ12B01070P1

BLOCK

TAPPED

1шт.

a1-1b

PY12B01114P1

PLATE

1шт.

a1-2

PH12B01100P1

BUSHING,45mm ID x 55mm OD x 46.5mm W

2шт.

a1-3

PY12B01079P1

BUSHING,45mm ID x 55mm OD x 36.5mm L

2шт.

a1-4

PH12B01069P2

BUSHING,60mm ID x 75mm OD x 45mm L

2шт.

a1-5

PY12B01213P1

COLLAR,48.8mm ID x 54mm OD x 68mm L

1шт.

a1-6

PY12B01214P2

COLLAR

COLLAR

1шт.

ARM INSTALLATION, PY12B00117F1

1шт.

b1

PY12B01228P1

PIN

1шт.

b2

PH12B01084P1

PIN

1шт.

b3

ZS18C24055

CAPSCREW,Hex, M24 x 55mm

M24x3.0x55mm

1шт.

b4

HS18C12090G1

SCREW

M12x1.75x90mm

1шт.

b5

PH12B01087P1

WASHER

1шт.

b6

ZW16H24000

WASHER

ID 25 x OD 48 x Th 6.0mm

1шт.

b7

ZN18C12010

NUT

M12x1.75mm

2шт.

b8

YJ12B01043P1

SHIM,0.5mm Thk

ID 47 x OD 70 x Th 0.5mm

2шт.

b9

B16T0442D61

SHIM,47mm ID x 70mm OD x 0.9mm Thk

ID 47 x OD 70 x Th 0.9mm

1шт.

b10

PH12B01088P1

SHIM,0.5mm Thk

1шт.

b11

PH12B01115P1

SHIM,0.5mm Thk

2шт.

b12

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

1/8" PT -- Straight

1шт.

ARM GROUP, PY12B00073F1

1шт.

c1

PH12B01148F1

LINK CONROD

LINK ASSY, BUCKET

1шт.

c1-1

NSS

NOT SOLD SEPARAT

LINK, BUCKET

1шт.

c1-2

PH12B01067P1

BUSHING,45mm ID x 55mm OD x 42mm L

2шт.

c1-3

PY12B01163P1

BUSHING,45mm ID x 55mm OD x 36.5mm L

2шт.

c2

PH12B01101P2

LINK

2шт.

c3

PH12B01114P1

PIN,45mm OD x 287.5mm L

See Bucket Install for retaining pins

2шт.

c4

PY12B01158P1

PIN,45mm OD x 210.5mm L

1шт.

c5

PY12B01159P1

PIN,45mm OD x 219.5mm L

1шт.

c6

ZS18C16030

SCREW,Hex, M16 x 30mm

M16x2.0x30mm

2шт.

c7

PW12B01242P1

WASHER

2шт.

c8

ZW16H16000

WASHER

ID 17 x OD 32 x Th 4.5mm

2шт.

c9

2445R138D20

SEAL,45mm ID x 55mm OD x 4mm Thk

Dust -- ID 45 x OD 55 x Th 4mm

10шт.

c10

2445R138D3

SEAL,60mm ID x 75mm OD x 4mm Thk

Dust -- ID 60 x OD 75 x Th 4mm

2шт.

c11

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

1/8" PT -- Straight

3шт.

c12

ZG91U02000

LUBE NIPPLE

90°x1/8" PT

2шт.

c13

B16T0442D61

SHIM,47mm ID x 70mm OD x 0.9mm Thk

ID 47 x OD 70 x Th 0.9mm

2шт.

c14

YJ12B01097P1

SHIM,47mm ID x 70mm OD x 0.5mm Thk

(0.5)

6шт.
