(05-011) - CAB ASSY (COOLER) (PW02C00069F1)

Запчасти Case CX50B (05-011) - CAB ASSY (COOLER) (PW02C00069F1) OPTIONAL PARTS

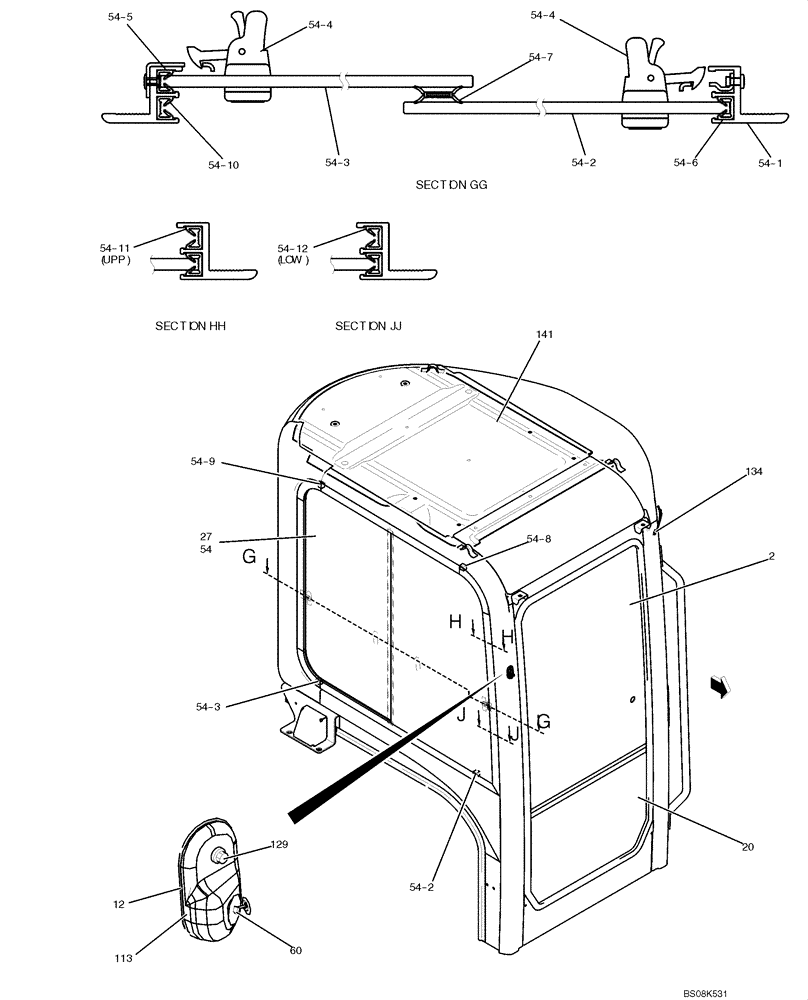

Схема запчастей Case CX50B - (05-011) - CAB ASSY (COOLER) (PW02C00069F1) OPTIONAL PARTS
54-2
27
54-11
54-2
129
54-7
54-8
20
54-3
54-12
113
54-4
2
60
54-6
54-1
54-9
134
54-4
54-4
141
54-3
12
54-10
54
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

CAB ASSY, PW02C00069F1

1шт.

2

PW50C00002F1

WINDOW

Assembly - Inc. Frame See Figure 01-056

1шт.

12

PM02C01475P1

RUBBER

1шт.

20

PW02C01117P1

GLASS

1шт.

27

PM02C01172D3

SEAL,7mm W x 4.8mm H x 4000mm L

1шт.

54

PW02C01114F1

GLASS

SASH ASSY

1шт.

54-1

PW02C01114S001

FRAME ASSY

1шт.

54-2

PW02C01224P1

GLASS

1шт.

54-3

PW02C01225P1

GLASS

1шт.

54-4

PW02C01114S004

LOCK ASSY

2шт.

54-5

PW02C01114S005

SEAL

1шт.

54-6

PW02C01114S006

SEAL

1шт.

54-7

PW02C01114S007

SEAL

1шт.

54-8

PW02C01114S008

STOP

2шт.

54-9

PW02C01114S009

STOP

2шт.

54-10

PW02C01114S010

SEAL

1шт.

54-11

PW02C01114S011

SEAL

1шт.

54-12

PW02C01114S012

SEAL

1шт.

60

PM02C01480P1

NOZZLE

1шт.

113

PM02C01474P1

BASE PLATE

1шт.

129

ZM46C05020

BOLT (STEP)

1шт.

134

PW02C01162P1

GROMMET

1шт.

141

PW02C01295P2

FOAM INSULATION

1шт.
