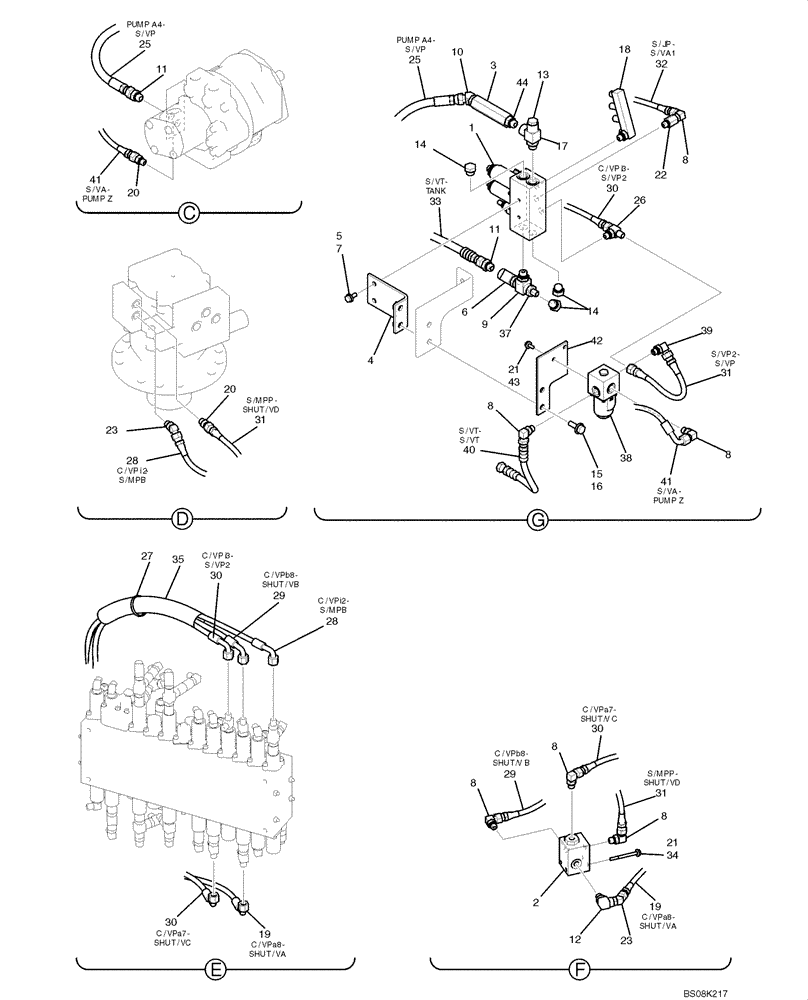

Запчасти Case CX50B (05-007) - CONTROL LINES, REMOTE (COOLER) (PY64H00052F1) OPTIONAL PARTS

CONTROL LINES, VALVE, PY64H00052F1

1шт.

1

PX35V00003F1

VALVE

ASSY, SOLENOID, See Figure 07-046

1шт.

2

PH26V00001F1

VALVE

ASSY, SHUTTLE, , See Figure 07-018

1шт.

3

YN50V00020F1

HYDRAULIC OIL FILTER

ASSY, INLINE

1шт.

4

PW64H01072P1

BRACKET

1шт.

5

ZS18C08020

SCREW,Hex, M8 x 20mm

2шт.

6

HH55Q06006G1

TEE

1шт.

7

ZW16H08000

WASHER

2шт.

8

HH35S04004G1

90 ELBOW

6шт.

9

YN64H01048P1

TEE,90 Degree, PF 3/8" x PF 3/8", O-Ring

1шт.

10

HH45S06006G1

45 ELBOW

1шт.

11

HH25S06006G1

HYD CONNECTOR

2шт.

12

2444Z2894

90 ELBOW

1шт.

13

ZE72X04000

PLUG

1шт.

14

ZE72X06000

PLUG

3шт.

15

ZS18C10035

SCREW,Hex, M10 x 35mm

CAP

2шт.

16

ZW16H10000

WASHER

2шт.

17

PW64H01011P1

TEE

1шт.

18

PH64H01057P1

CONNECTION

1шт.

19

HX34L04145DX

HOSE,6.3mm ID x 1450mm L

1шт.

20

HH25S04004G1

HYD CONNECTOR

2шт.

21

ZW16H06000

WASHER

4шт.

22

2444Z2525

HYD CONNECTOR

1шт.

23

HH45S04004G1

45 ELBOW

2шт.

25

HX25L06170DY

HOSE,9.5mm ID x 1700mm L

1шт.

26

HH55L04004G2

TEE

1шт.

27

PY01P01043D6

CABLE TIE,4.80mm W x 383mm L

1шт.

28

HX34L04200DX

HOSE

1шт.

29

HX34L04185DX

HOSE,6.3mm ID x 1850mm L

1шт.

30

HX34L04140DX

HOSE,6.3mm ID x 1400mm L

1шт.

31

HX24L04028DX

HOSE

2шт.

34

ZS18C06065

SCREW,Hex, M6 x 65mm

CAP

2шт.

35

2414Z199D30

PROTECTIVE SLEEVE

GUARD

1шт.

37

HH25S04006G1

90 ELBOW

1шт.

38

YJ35V00004F2

SOLENOID VALVE

ASSY, SOLENOID, See Figure 07-049

1шт.

39

HH35S04004G2

90 ELBOW

(WITH FILTER)

1шт.

40

HX22L04028DX

HOSE,6.3mm ID x 280mm L

1шт.

41

HX34L04165DX

HOSE,6.3mm ID x 1650mm L

1шт.

42

PH64H01053P1

BRACKET

1шт.

43

ZS18C06016

SCREW,Hex, M6 x 16mm

CAP

2шт.

44

2444Z3326

HYD CONNECTOR

CONNECTOR

1шт.
