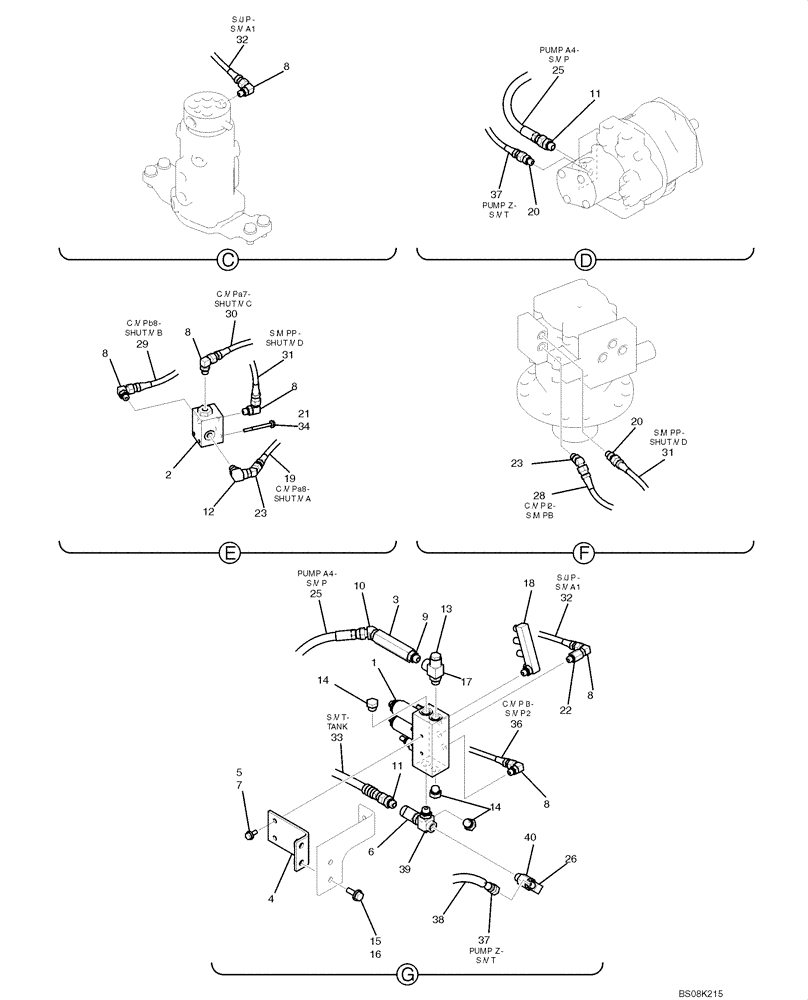

Запчасти Case CX50B (05-005) - CONTROL LINES, REMOTE (WITH A PUMP Z PORT) (PY64H00061F1) OPTIONAL PARTS

CONTROL LINES, VALVE, PY64H00061F1

1шт.

1

PX35V00003F1

VALVE

ASSY, SOLENOID, See Figure 07-046

1шт.

2

PH26V00001F1

VALVE

ASSY, SHUTTLE, See Figure 07-018

1шт.

3

YN50V00020F1

HYDRAULIC OIL FILTER

FILTER ASSY, INLINE

1шт.

4

PW64H01072P1

BRACKET

1шт.

5

ZS18C08020

SCREW,Hex, M8 x 20mm

2шт.

6

HH55Q06006G1

TEE

1шт.

7

ZW16H08000

WASHER

2шт.

8

HH35S04004G1

90 ELBOW

6шт.

9

2444Z3326

HYD CONNECTOR

CONNECTOR

1шт.

10

HH45S06006G1

45 ELBOW

1шт.

11

HH25S06006G1

HYD CONNECTOR

2шт.

12

2444Z2894

90 ELBOW

1шт.

13

ZE72X04000

PLUG

1шт.

14

ZE72X06000

PLUG

3шт.

15

ZS18C10030

SCREW,Hex, M10 x 30mm

CAP

2шт.

16

ZW16H10000

WASHER

2шт.

17

PW64H01011P1

TEE

1шт.

18

PH64H01057P1

CONNECTION

1шт.

19

HX34L04145DX

HOSE,6.3mm ID x 1450mm L

1шт.

20

HH25S04004G1

HYD CONNECTOR

2шт.

21

ZW16H06000

WASHER

2шт.

22

2444Z2525

HYD CONNECTOR

1шт.

23

HH45S04004G1

45 ELBOW

2шт.

25

HX25L06170DY

HOSE,9.5mm ID x 1700mm L

1шт.

26

HH55L04004G2

TEE

1шт.

28

HX34L04200DX

HOSE

1шт.

29

HX34L04185DX

HOSE,6.3mm ID x 1850mm L

1шт.

30

HX34L04140DX

HOSE,6.3mm ID x 1400mm L

1шт.

31

HX24L04028DX

HOSE

1шт.

32

HX24L04140DX

HOSE

1шт.

33

PW68H01023D3

HOSE,9.5mm ID x 880mm L

1шт.

34

ZS18C06065

SCREW,Hex, M6 x 65mm

CAP

2шт.

36

HX34L04135DX

HOSE,6.3mm ID x 1350mm L

1шт.

37

HX24L04155DX

HOSE ASSY.

1шт.

38

PU13E01002D8

TUBE

1шт.

39

YN64H01048P1

TEE,90 Degree, PF 3/8" x PF 3/8", O-Ring

(WITH FILTER)

1шт.

40

2444Z2891

HYD CONNECTOR

1шт.
