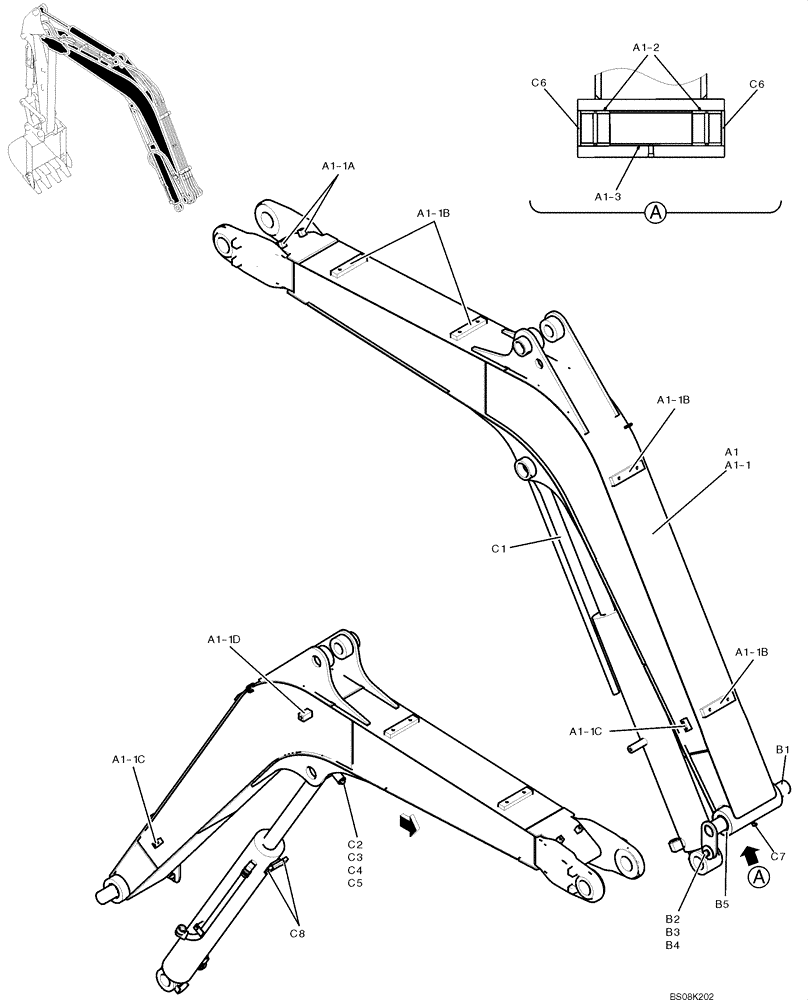

Запчасти Case CX50B (03-001) - BOOM ASSY, STD 2.79M (9FT 2IN) (PY02B00099F1, PH02B00084F1, PY02B00137F1) Attachments

.

BOOM ASSY, HOE, 2.79 M, PY02B00099F1

1шт.

a1

PY02B00185F1

BOOM

BOOM ASSY, HOE

1шт.

a1-1

PY02B00104P1

BOOM, HOE

1шт.

a1-1a

PH02B01043P1

BLOCK

TAPPED

2шт.

a1-1b

PH02B01068P1

BLOCK

TAPPED

4шт.

a1-1c

PH02B01061P1

BLOCK

TAPPED

2шт.

a1-1d

R16T0373D7

BLOCK

TAPPED

1шт.

a1-2

PY02B01280P1

BUSHING

BUSHING

2шт.

a1-3

PY02B01281P1

COLLAR

COLLAR

1шт.

.

BOOM INSTALLATION, PH02B00084F1

1шт.

b1

PH02B01165P1

PIN

1шт.

b2

2418T17895

WASHER

1шт.

b3

ZS18C12025

SCREW,Hex, M12 x 25mm

CAP

1шт.

b4

ZW26X12000

LOCK WASHER

1шт.

b5

PH02B01069P1

SHIM,0.5mm Thk

1шт.

.

BOOM GROUP, PY02B00137F1

1шт.

c1

PY02B01189P1

COVER

1шт.

c2

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap

1шт.

c3

ZW26X10000

LOCK WASHER

1шт.

c4

ZW16H10000

WASHER

1шт.

c5

PN03M01009D2

WASHER

1шт.

c6

2445R138D19

SEAL,50mm ID x 60mm OD x 4mm Thk

DUST

2шт.

c7

ZG91V02000

LUBE NIPPLE,67 Degree x 1/8" PT

1шт.

c8

PH02B01004P1

TUBE

2шт.
