(06-001[00]) - NAME PLATE INSTALLATION (PW22T00083F3), PAGE 1 OF 2

Запчасти Case CX50B (06-001[00]) - NAME PLATE INSTALLATION (PW22T00083F3), PAGE 1 OF 2 NAME-PLATE

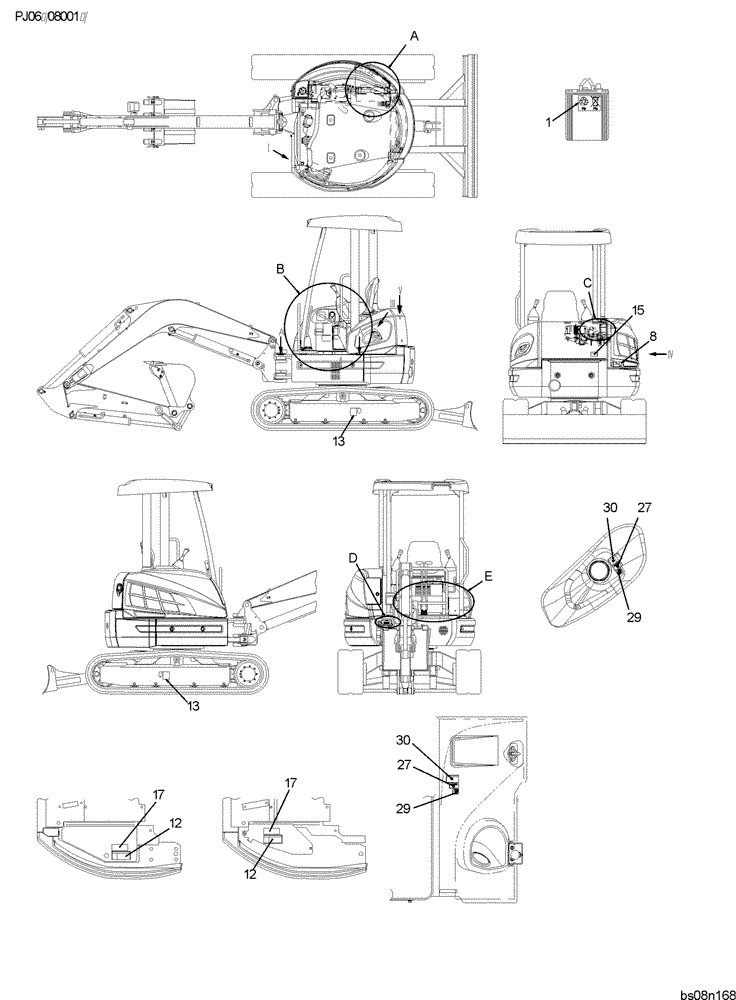

Схема запчастей Case CX50B - (06-001[00]) - NAME PLATE INSTALLATION (PW22T00083F3), PAGE 1 OF 2 NAME-PLATE
27
17
13
8
17
30
13
29
12
12
30
15
27
1
29
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

Name Plate Installation, PW22T00083F3, Page 1 of 2

1шт.

1

2432T6179

CAUTION DECAL

Decal, Recycle

1шт.

8

PE20T01014P1

LABEL

Decal, Danger, Keep clear of swing area …

1шт.

12

YN20T01338P1

LABEL

Decal, Warning, Electric Hazard may cause injury…

1шт.

13

2432T6110

LABEL

Decal, Warning, Extreme high pressure in truck adjustment cylinder ...

2шт.

15

YN20T01012P1

CAUTION DECAL

Decal, Caution, Rotating engine fan, hot engine parts and drive belt can cause …

1шт.

17

PY20T01069P1

LABEL

Decal, Danger, Explosive gases

1шт.

27

PW20T01090P1

LABEL

Decal, Caution, After Refueling Cap and Key Cover Should Be Shut

1шт.

29

PA20T01031P1

CAUTION DECAL

1шт.

30

PV20T01068P1

LABEL

Label

1шт.
