Запчасти Case CX50B (00-002) - SLEEVE GENERAL MAINTENANCE ITEMS

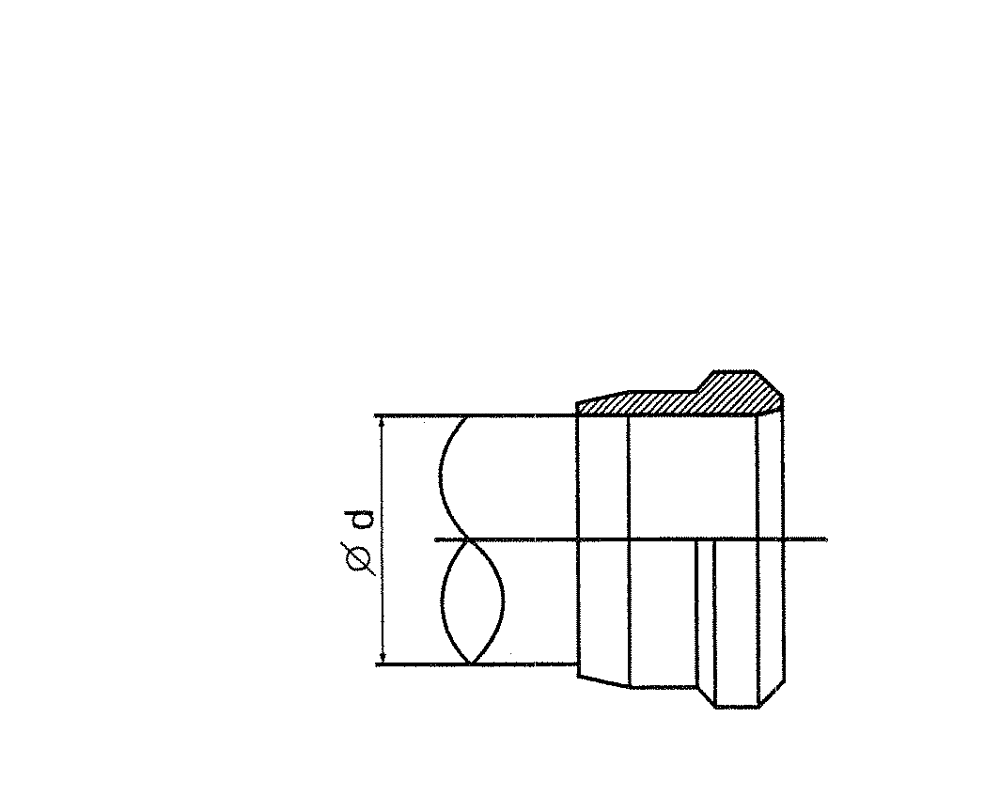

Схема запчастей Case CX50B - (00-002) - SLEEVE GENERAL MAINTENANCE ITEMS

Артикул

Название

Примечание

Количество

ZA93S10000

TUBE NUT

SLEEVE, TYPE : AMC, TUBE SIZE ød: 10

1шт.

ZA93S15000

FERRULE

SLEEVE, TYPE : AMC, TUBE SIZE ød: 15

1шт.

ZA93S18000

FERRULE

SLEEVE, TYPE : AMC, TUBE SIZE ød: 18

1шт.

ZA93S22000

RING

SLEEVE, TYPE : AMC, TUBE SIZE ød: 22

1шт.

ZA93S28000

FERRULE

SLEEVE, TYPE : AMC, TUBE SIZE ød: 28

1шт.

ZA93S35000

FERRULE

SLEEVE, TYPE : AMC, TUBE SIZE ød: 35

1шт.

ZF93S06000

FERRULE

SLEEVE, TYPE : IHARA, TUBE SIZE ød: 6

1шт.

ZF93S08000

FERRULE

SLEEVE, TYPE : IHARA, TUBE SIZE ød: 8

1шт.

ZF93S10000

FERRULE

SLEEVE, TYPE : IHARA, TUBE SIZE ød: 10

1шт.

ZF93S12000

FERRULE

SLEEVE, TYPE : IHARA, TUBE SIZE ød: 12

1шт.

ZF93S15000

FERRULE

SLEEVE, TYPE : IHARA, TUBE SIZE ød: 15

1шт.

ZF93S18000

FERRULE

SLEEVE, TYPE : IHARA, TUBE SIZE ød: 18

1шт.

ZF93S22000

FERRULE

SLEEVE, TYPE : IHARA, TUBE SIZE ød: 22

1шт.

ZF93S28000

FERRULE

SLEEVE, TYPE : IHARA, TUBE SIZE ød: 28

1шт.

ZF93S32000

FERRULE

SLEEVE, TYPE : IHARA, TUBE SIZE ød: 32

1шт.

ZF93S35000

FERRULE

SLEEVE, TYPE : IHARA, TUBE SIZE ød: 35

1шт.

ZF93S38000

FERRULE

SLEEVE, TYPE : IHARA, TUBE SIZE ød: 38

1шт.

Выбрано товаров: 17
