(08-003) - FLYWHEEL HOUSING & OIL SUMP

Запчасти Case CX50B (08-003) - FLYWHEEL HOUSING & OIL SUMP ENGINE COMPONENTS

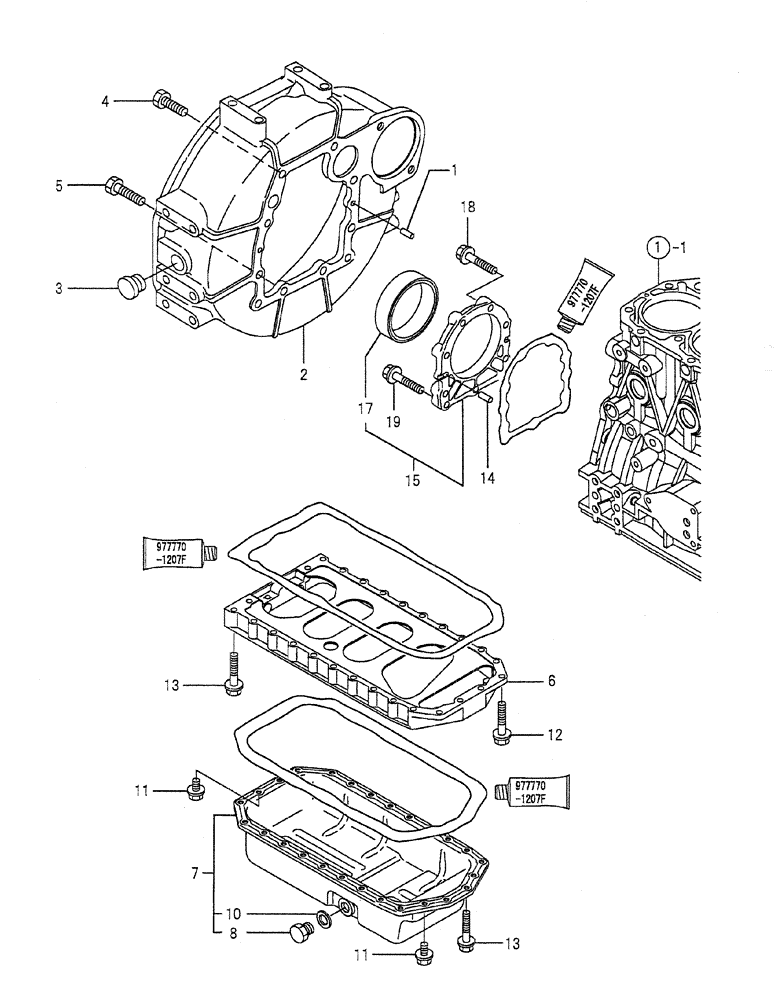

Схема запчастей Case CX50B - (08-003) - FLYWHEEL HOUSING & OIL SUMP ENGINE COMPONENTS
13
5
17
12
2
3
13
1
18
6
15
4
11
19
1
1
14
7
8
11
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

VV12910001580

PIN,M8 x 16mm

PARALLEL 8 X 16

2шт.

2

VV12961201600

HOUSING

FLYWHEEL

1шт.

3

VV11962001750

CAP

FLYWHEEL COVER

1шт.

4

VV26206100252

BOLT,M10 x 25mm

M10X25

6шт.

5

VV26206100302

BOLT,M10 x 30mm

Ml 0X30

4шт.

6

VV12940001730

SPACER

OIL SUMP

1шт.

7

VV12940001770

SUMP

ASSY, LUB. OIL

1шт.

8

VV11964001640

DRAIN PLUG,M22

M22

1шт.

10

VV22190220002

SEAL,21.75mm ID x 30mm OD x 2.5mm Thk

WASHER 22S

1шт.

11

VV26106080162

BOLT,M8 x 16mm

M 8X 16 PLATED

4шт.

12

VV26106080252

BOLT,M8 x 25mm

M 8X 25 PLATED

2шт.

13

VV26106080452

BOLT,M8 x 45mm

H 8X 45 PLATED

24шт.

14

VV12910001580

PIN,M8 x 16mm

PARALLEL 8X16

2шт.

15

VV12910001640

BOX

CASE ASSY, OIL SEAL

1шт.

17

VV12979501780

OIL SEAL

1шт.

18

VV12948601670

BOLT,M8 x 30mm

M8X30,COLLAR HD

6шт.

19

VV26106080352

BOLT,M8 x 35mm

M 8X 35 PLATED

3шт.
