(07-038) - CYLINDER ASSY, SWING (PH01V00031F1)

Запчасти Case CX50B (07-038) - CYLINDER ASSY, SWING (PH01V00031F1) ELECTRICAL AND HYDRAULIC COMPONENTS

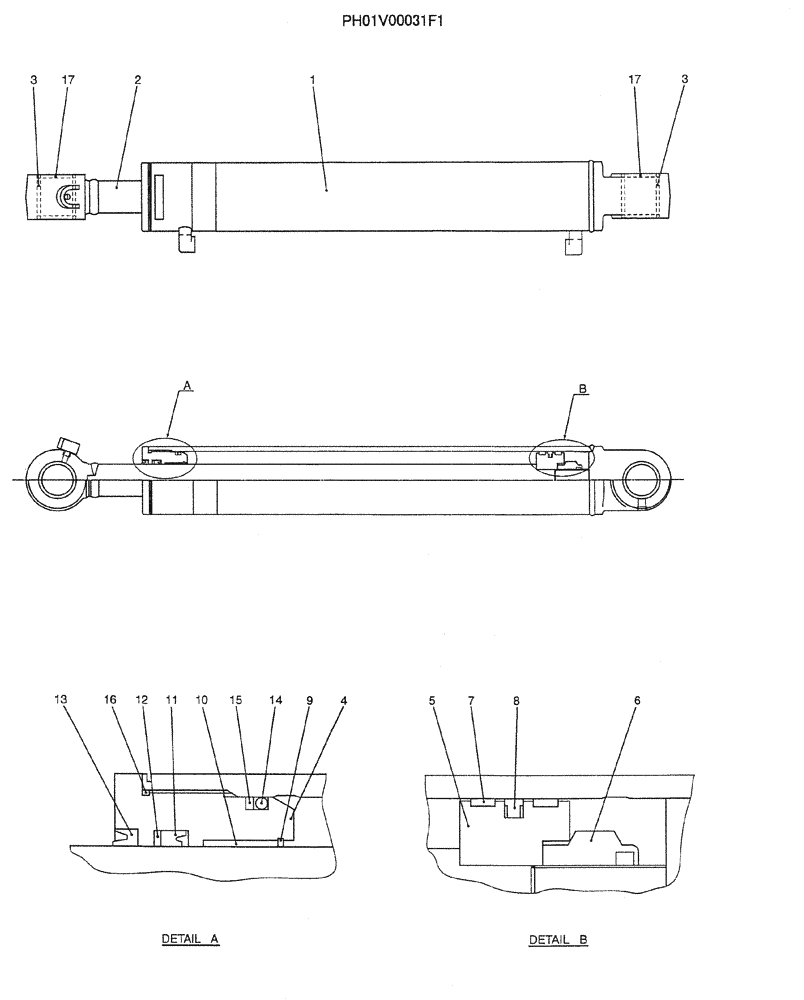

Схема запчастей Case CX50B - (07-038) - CYLINDER ASSY, SWING (PH01V00031F1) ELECTRICAL AND HYDRAULIC COMPONENTS
3
7
4
8
5
12
2
13
10
16
6
14
3
17
1
15
11
9
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PH01V00031F1

CYLINDER

ASSY, SWING

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE, CYLINDER

1шт.

2

NSS

NOT SOLD SEPARAT

ROD, PISTON

1шт.

3

PH01V00031S003

BUSHING

2шт.

4

PH01V00031S004

CYLINDER HEAD

1шт.

5

PH01V00031S005

PISTON

1шт.

6

PH01V00031S006

NUT

1шт.

7

PH01V00027S010

RING

WEAR

2шт.

8

PH01V00027S011

RING

SEAL

1шт.

9

PH01V00027S013

RING

RETAINING

1шт.

10

PH01V00031S010

BUSHING

1шт.

11

PH01V00027S015

CIRCLIP

U-RING

1шт.

12

PH01V00027S016

RING

BACK-UP

1шт.

13

PH01V00027S017

RING

WIPER

1шт.

14

ZD12P08000

O-RING

1шт.

15

ZD85P08000

BACK-UP RING

1шт.

16

ZD11G09000

O-RING,89.40mm ID x 95.60mm OD x 3.10mm

1шт.

17

PH01V00027S021

RING

WIPER

4шт.

PH01V00031R100

REPAIR KIT

CONSISTS OF REF. 1(1), 3(1)

1шт.

PH01V00031R200

REPAIR KIT

CONSISTS OF REF. 2(1), 3(1)

1шт.

PH01V00031R300

REPAIR KIT

CONSISTS OF REF. 7(2), 8(1), 11(1), 12(1), 13(1), 14(1), 15(1), 16(1)

1шт.
