(07-035) - CYLINDER ASSY, ARM (PY01V00042F1, F2)

Запчасти Case CX50B (07-035) - CYLINDER ASSY, ARM (PY01V00042F1, F2) ELECTRICAL AND HYDRAULIC COMPONENTS

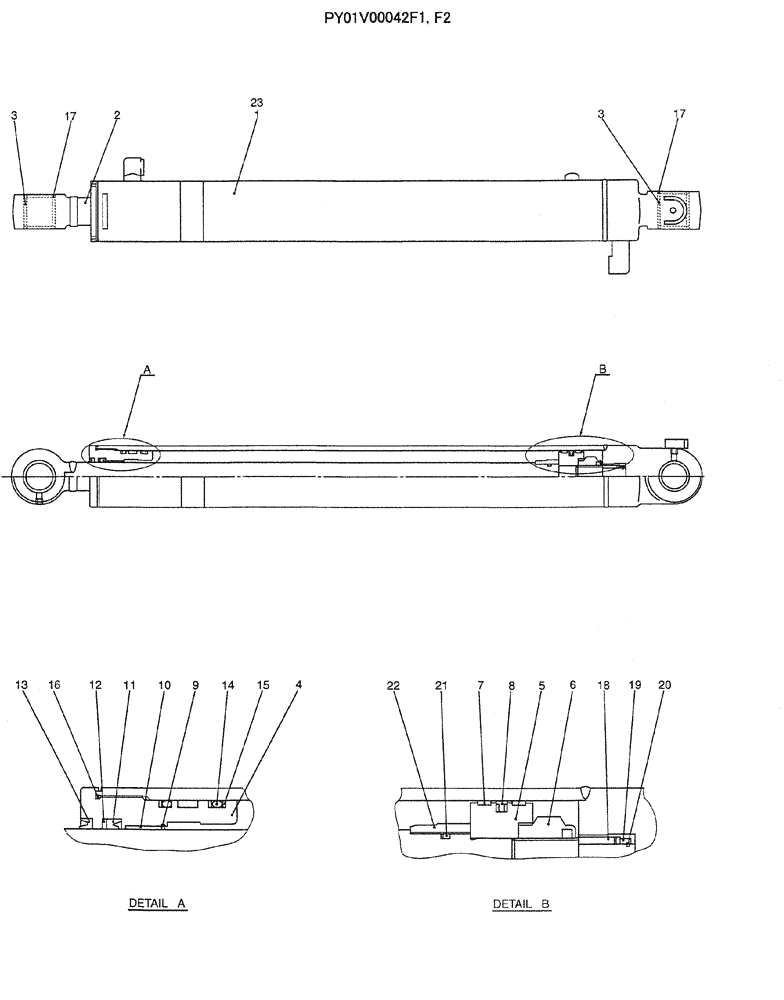

Схема запчастей Case CX50B - (07-035) - CYLINDER ASSY, ARM (PY01V00042F1, F2) ELECTRICAL AND HYDRAULIC COMPONENTS
17
18
10
9
4
3
21
22
3
16
23
12
17
14
19
7
20
11
6
13
15
8
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PY01V00042F1

CYLINDER

ASSY, ARM

1шт.

PY01V00042F2

CYLINDER

ASSY, ARM

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE, CYLINDER (F1 ONLY)

1шт.

2

NSS

NOT SOLD SEPARAT

ROD, PISTON

1шт.

3

PH01V00035S003

BUSHING

2шт.

4

PH01V00027S004

CYLINDER HEAD

1шт.

5

PH01V00027S006

PISTON

1шт.

6

PH01V00027S009

NUT

1шт.

7

PH01V00027S010

RING

WEAR

2шт.

8

PH01V00027S011

RING

SEAL

1шт.

9

PH01V00027S013

RING

RETAINING

1шт.

10

PH01V00027S014

BUSHING

1шт.

11

PH01V00027S015

CIRCLIP

U-RING

1шт.

12

PH01V00027S016

RING

BACK-UP

1шт.

13

PH01V00027S017

RING

WIPER

1шт.

14

ZD12P08000

O-RING

2шт.

15

ZD85P08000

BACK-UP RING

3шт.

16

ZD11G09000

O-RING,89.40mm ID x 95.60mm OD x 3.10mm

1шт.

17

PH01V00034S020

RING

SEAL, DUST

4шт.

18

PY01V00042S018

STOP

1шт.

19

PH01V00035S020

RING

1шт.

20

PH01V00035S021

RING

1шт.

21

PH01V00027S012

RING

SEAL

1шт.

22

PH01V00027S005

CUSHION

BEARING

1шт.

23

NSS

NOT SOLD SEPARAT

TUBE, CYLINDER (F2 ONLY)

1шт.

PY01V00042R100

REPAIR KIT

CONSISTS OF REF. 1(1), 3(1) (F1 ONLY)

1шт.

PY01V00042R200

REPAIR KIT

CONSISTS OF REF. 2(1), 3(1)

1шт.

PH01V00027R300

REPAIR KIT

CONSISTS OF REF. 7(2), 8(1), 11(1), 12(1), 13(1), 14(2), 15(3), 16(1)

1шт.

PY01V00042R400

REPAIR KIT

CONSISTS OF REF. 3(1), 23(1) (F2 ONLY)

1шт.
