(07-034) - CYLINDER ASSY, BOOM (CAB) (PY01V00045F1)

Запчасти Case CX50B (07-034) - CYLINDER ASSY, BOOM (CAB) (PY01V00045F1) ELECTRICAL AND HYDRAULIC COMPONENTS

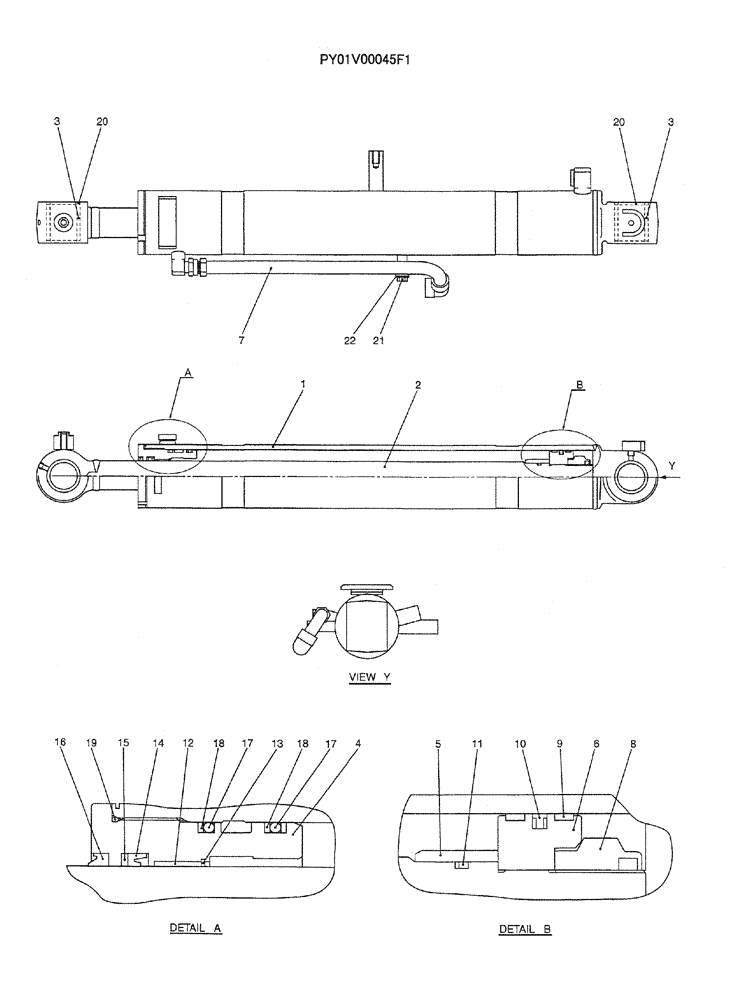

Схема запчастей Case CX50B - (07-034) - CYLINDER ASSY, BOOM (CAB) (PY01V00045F1) ELECTRICAL AND HYDRAULIC COMPONENTS
16
8
6
9
18
22
12
13
11
3
21
18
17
1
10
5
3
4
14
17
15
20
2
19
20
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PY01V00045F1

CYLINDER

ASSY, BOOM

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE, CYLINDER

1шт.

2

NSS

NOT SOLD SEPARAT

ROD,PISTON

1шт.

3

PH01V00027S003

BUSHING

2шт.

4

PY01V00037S004

CYLINDER HEAD

1шт.

5

PY01V00037S005

BUSHING

BEARING

1шт.

6

PY01V00037S006

PISTON

1шт.

7

PY01V00038S008

PIPE ASSY.

1шт.

8

PY01V00037S009

NUT

LOCK

1шт.

9

PY01V00037S010

RING

WEAR

2шт.

10

PY01V00037S011

RING

SEAL

1шт.

11

PY01V00037S012

RING

SEAL

1шт.

12

PY01V00037S013

BUSHING

1шт.

13

PY01V00037S014

RING

RETAINING

1шт.

14

PY01V00037S015

CIRCLIP

RING

1шт.

15

PY01V00037S016

RING

BACK UP

1шт.

16

PY01V00037S017

RING

1шт.

17

ZD12P09000

O-RING

2шт.

18

ZD85P09000

BACK-UP RING

3шт.

19

ZD11G10000

O-RING,99.40mm ID x 105.60mm OD x 3.10mm

1шт.

20

PH01V00027S021

RING

SEAL, DUST

4шт.

21

ZS18C10016

SCREW,Hex, M10 x 16mm

CAP

1шт.

22

PH01V00027S023

WASHER

1шт.

PY01V00037R300

REPAIR KIT

CONSISTS OF REF. 9(2), 10(1), 14(1), 15(1), 16(1), 17(2), 18(3), 19(1)

1шт.

PY01V00037R400

REPAIR KIT

CONSISTS OF REF. 2(1), 3(1)

1шт.

PY01V00045R100

REPAIR KIT

CONSISTS OF REF. 1(1), 3(1)

1шт.
