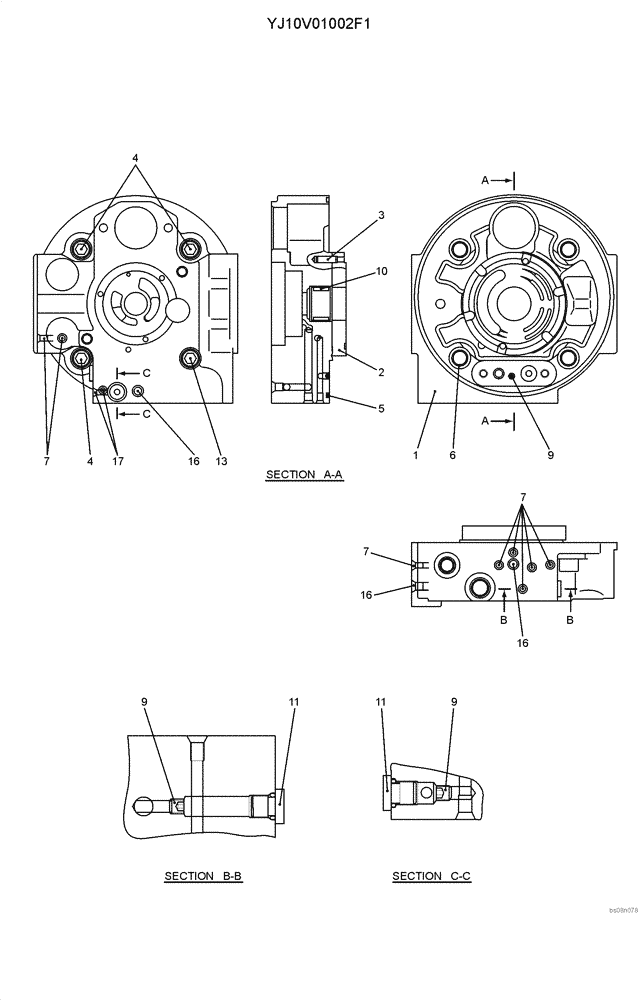

Запчасти Case CX50B (07-029[02]) - COVER ASSY (YJ10V01002F1) ELECTRICAL AND HYDRAULIC COMPONENTS

COVER ASSY (YJ10V01002F1), REPLACED PH10V01007F1

1шт.

1

NSS

NOT SOLD SEPARAT

COVER

1шт.

2

PY10V01003S002

PLATE

1шт.

3

NSS

NOT SOLD SEPARAT

PIN

2шт.

4

ZS23C12030

SCREW,Hex Socket Head, M12 x 30mm

M12x1.75x30mm

3шт.

5

PW10V00001S030

O-RING

1шт.

6

2436R1194S12

O-RING

4шт.

7

NSS

NOT SOLD SEPARAT

PLUG

10шт.

9

NSS

NOT SOLD SEPARAT

ORIFICE

2шт.

10

NSS

NOT SOLD SEPARAT

BEARING

1шт.

11

PY10V01003S011

PLUG

1шт.

13

ZS23C12055

SCREW,Hex Socket Head, M12 x 55mm

M12x1.75x55mm

1шт.

16

NSS

NOT SOLD SEPARAT

PLUG

2шт.

17

NSS

NOT SOLD SEPARAT

PLUG

1шт.
