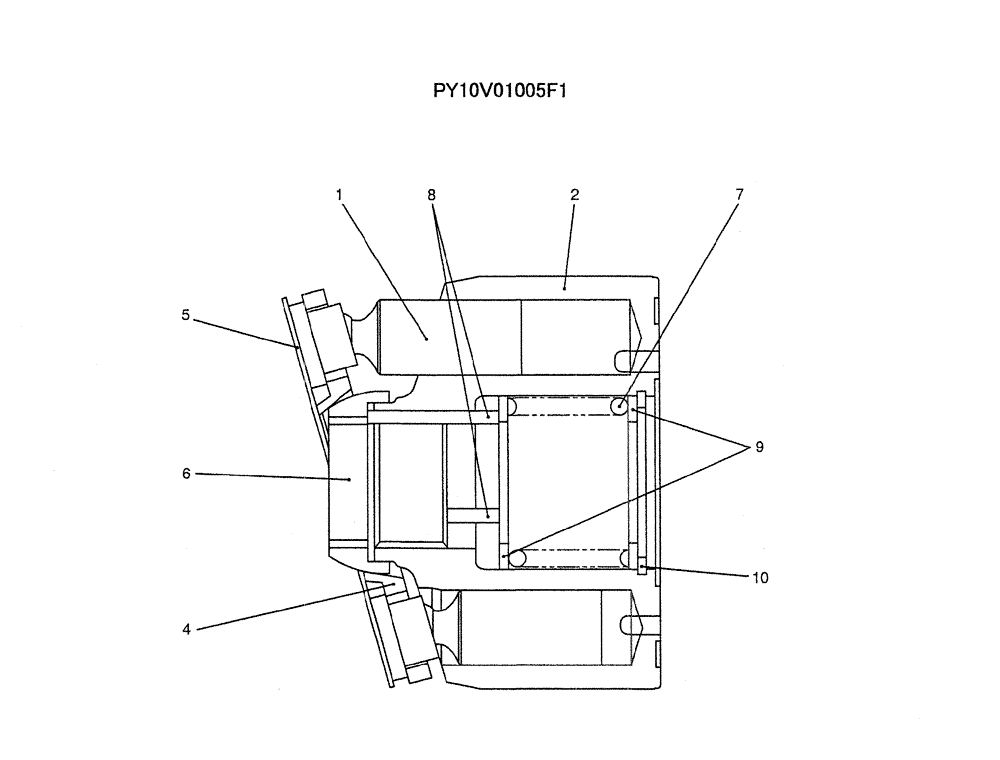

Запчасти Case CX50B (07-028) - ROTARY ASSY (PY10V01005F1) ELECTRICAL AND HYDRAULIC COMPONENTS

PY10V01005F1

ROTOR ASSY.

1шт.

1

PY10V01005S001

PISTON

10шт.

2

PY10V01005S002

BLOCK

CYLINDER

1шт.

4

PY10V01005S004

RETAINER

1шт.

5

PY10V01005S005

PLATE

1шт.

6

24100R232S6

GUIDE

1шт.

7

PY10V01005S007

VALVE SPRING

1шт.

8

24100R166S8

PIN

3шт.

9

PY10V01005S009

SPRING SEAT

2шт.

10

ZR26X04000

RING

RETAINING

1шт.
