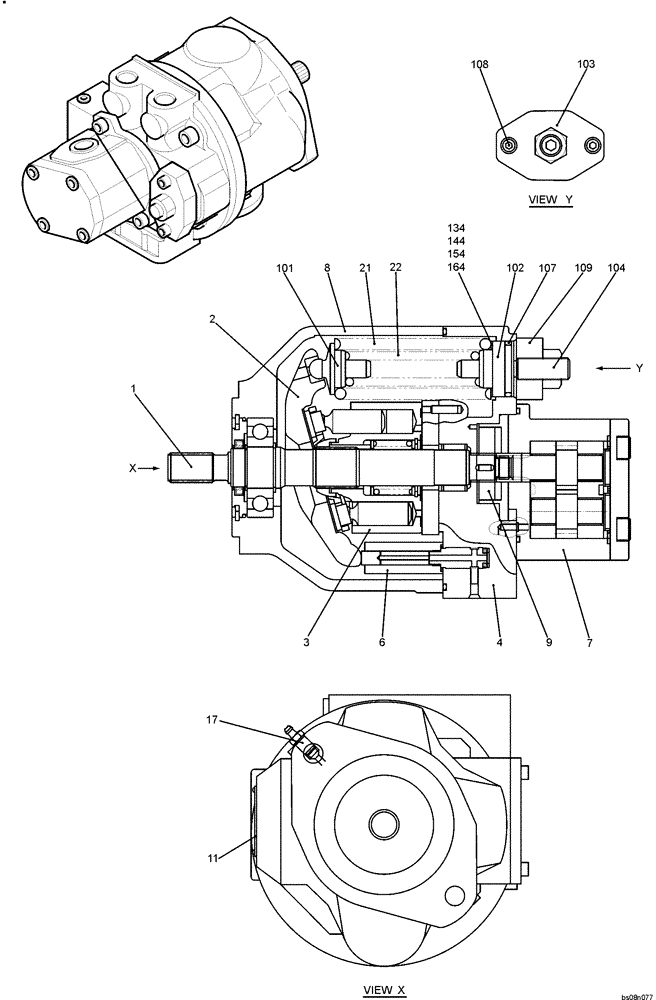

Запчасти Case CX50B (07-025[02]) - PUMP ASSY (PH10V00015F1) ELECTRICAL AND HYDRAULIC COMPONENTS

PH10V00015F1

HYDRAULIC PUMP

ASSY

1шт.

1

YJ10V01001F1

SHAFT ASSY.

SEE FIG. 07-026

1шт.

2

PY10V01002F1

BLOCK ASSY.

SEE FIG. 07-027

1шт.

3

PY10V01005F1

ROTOR ASSY.

SEE FIG. 07-028

1шт.

4

YJ10V01002F1

COVER ASSY

COVER, SEE FIG. 07-029

1шт.

6

PH10V01010F1

PISTON ASSY

PISTON ASSY, SEE FIG. 07-030

1шт.

7

PH10V00011F1

PUMP

ASSY, GEAR, SEE FIG. 07-032

1шт.

8

NSS

NOT SOLD SEPARAT

HOUSING, SEE FIG. 07-029

1шт.

9

PX10V00015F1

PUMP

ASSY

1шт.

11

NSS

NOT SOLD SEPARAT

NAME PLATE

1шт.

17

PY10V00007S017

BREATHER

2шт.

21

PY10V01004S006

SPRING

1шт.

22

PH10V01003S005

SPRING

1шт.

101

PY10V01004S001

SPRING SEAT

1шт.

102

PH10V01003S002

SPRING SEAT

1шт.

103

PY10V01004S003

COVER

1шт.

104

PY10V01004S004

ADJUSTMENT SCREW

1шт.

107

ZD11P03400

O-RING

1шт.

108

ZS23C08030

SCREW,Hex Socket Head, M8 x 30mm

M08x1.25x30mm

2шт.

109

PY10V01004S009

NUT

1шт.

134

PM10V01005S054

SHIM,0.3mm Thk

(0.3)

2шт.

144

PH10V00013S144

SHIM,0.5mm Thk

SHIM (0.5)

2шт.

154

PW10V00001S048

SHIM,1.0mm Thk

(1.0)

2шт.

164

PW10V00001S049

SHIM,2.0mm Thk

(2.0)

2шт.
