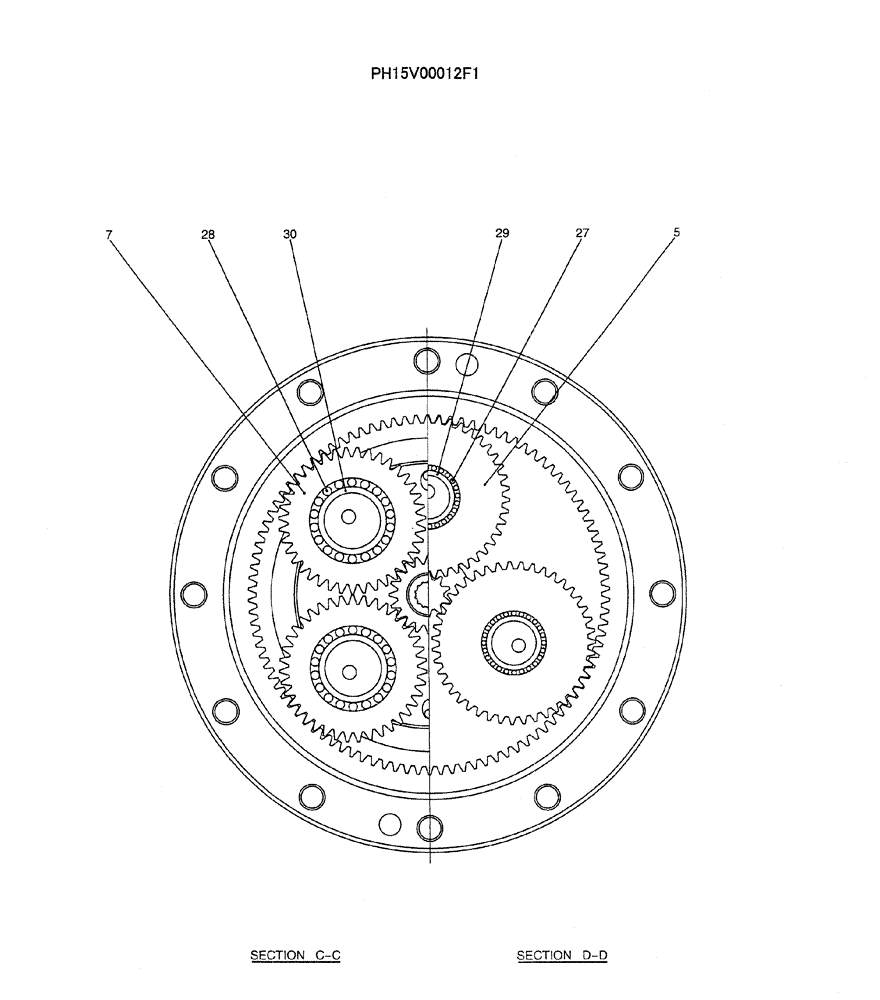

Запчасти Case CX50B (07-024[03]) - MOTOR ASSY, (PROPELLING) (PH15V00012F1) ELECTRICAL AND HYDRAULIC COMPONENTS

5

PH15V00012S005

GEAR

3шт.

7

PH15V00012S007

GEAR

4шт.

27

PX15V00025S027

NEEDLE BEARING

3шт.

28

PH15V00012S028

NEEDLE BEARING

4шт.

29

PX15V00025S029

RING

3шт.

30

PH15V00012S030

RING

4шт.

PW15V00018R330

REPAIR KIT

CONSISTS OF REF., 31(2)

1шт.

PH15V00012R310

REPAIR KIT

CONSISTS OF REF. 104(1), 105(9), 106(9)

1шт.

PH15V00012R320

REPAIR KIT

CONSISTS OF REF. 161(1), 162(1), 163(1)

1шт.

PH15V00012R330

VALVE

CONSISTS OF REF. 201(1), 221(2), 223(1), 224(2), 225(2), 226(2), 227(2), 228(2), 230(2), 236(2), 237(2), 252(4), 254(6), 263(1), 264(1), 266(1), 268(1), 273(2), 275(5), 276(1), 279(1), 280(1), 299(1)

1шт.

PH15V00009R340

REPAIR KIT

CONSISTS OF REF. 201(1), 223(1)

1шт.

PH15V00009R410

REPAIR KIT

CONSISTS OF REF. 263(1), 264(1)

1шт.

PH15V00012R360

REPAIR KIT

CONSISTS OF REF. 31(2), 35(1), 37(3), 43(2), 44(1), 132(1), 135(1), 139(1), 236(2), 237(2), 273(2)

1шт.
