(01-071) - GUARD INSTAL (CANOPY) (PH21C00020F1) 3 OF 3

Запчасти Case CX50B (01-071) - GUARD INSTAL (CANOPY) (PH21C00020F1) 3 OF 3 (05) - SUPERSTRUCTURE

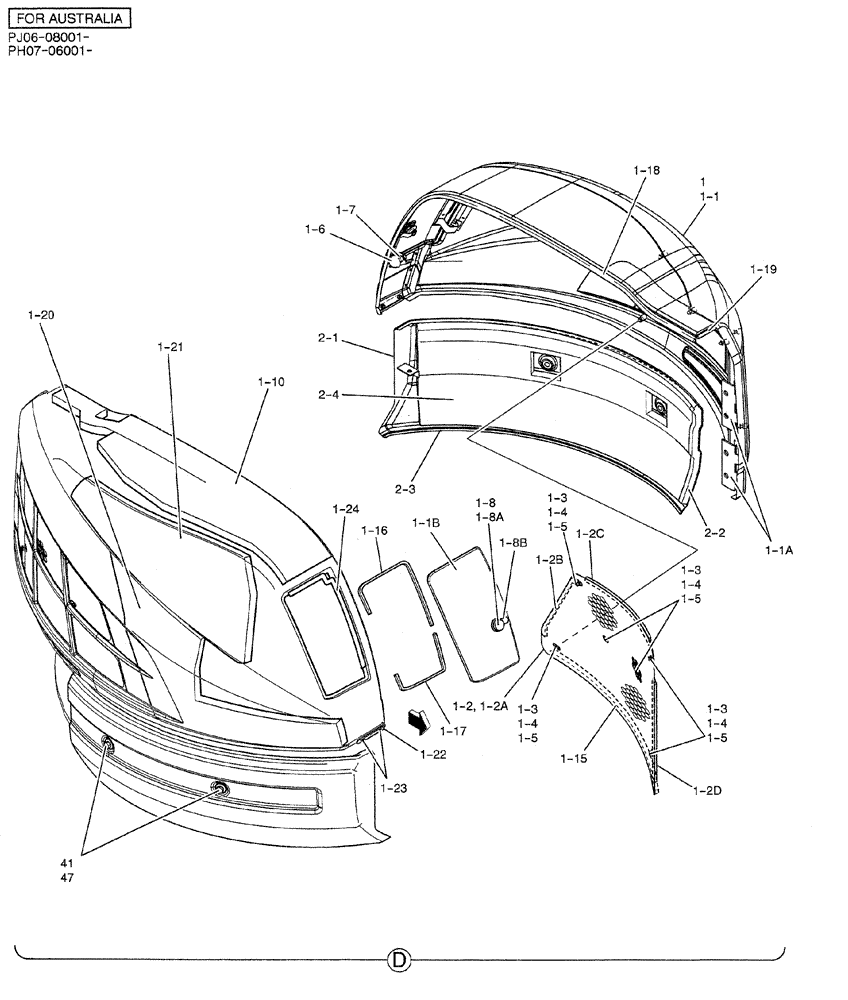

Схема запчастей Case CX50B - (01-071) - GUARD INSTAL (CANOPY) (PH21C00020F1) 3 OF 3 (05) - SUPERSTRUCTURE
1
1-20
1-2b
1-1
2-4
2-2
1-8b
1-24
2-3
47
2-1
1-18
1-2
1-7
41
1-5
1-5
1-15
1-3
1-17
1-10
1-23
1-2c
1-4
1-19
1-1b
1-22
1-5
1-5
1-4
1-3
1-2a
1-2d
1-6
1-16
1-1a
1-4
1-8a
1-3
1-4
1-3
1-8
1-21
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1-1

PH21C01315P1

COVER

1шт.

1-1a

PW21C01635P1

HINGE

2шт.

1-1b

PW21C01534P1

COVER

(Access Door)

1шт.

1-1b

PH21C01478P1

PLATE

(Weld to Access Door - PW21C01534P1 and Hinges PW21C01737P1)

1шт.

1-1b

PH21C01403P1

PLATE

(Weld to Guard and Hinge PW21C01737P1)

1шт.

1-1b

PW21C01737P1

HINGE

(Weld to Plate PH21C01478P1 and PH21C01403P1)

2шт.

1-2

PH21C01573F1

GUARD

GUARD ASSY

1шт.

1-2a

PH21C01568P1

GUARD

GUARD

1шт.

1-2b

PH21C01409D2

RUBBER

1шт.

1-2c

PH21C01409D3

RUBBER

1шт.

1-2d

PH21C01409D4

RUBBER

1шт.

1-3

ZN18C06005

NUT

6шт.

1-4

ZW26X06000

LOCK WASHER

6шт.

1-5

YT21P01001P1

WASHER

6шт.

1-6

YN21C01321P1

STOP

1шт.

1-7

ZN17F10008

NUT

1шт.

1-8

PM21C01268F1

LOCK

ASSY

1шт.

1-8a

YR22C01025P2

LOCK

1шт.

1-8b

PM21C01269P1

PLATE

1шт.

1-10

PH21C01399P2

FOAM INSULATION

1шт.

1-15

PH21C01409D1

RUBBER

1шт.

1-16

PW21C01742P3

RUBBER

1шт.

1-17

PW21C01740P3

RUBBER

1шт.

1-18

PH21C01536P1

WEATHERSTRIP

1шт.

1-19

PH21C01537P1

WEATHERSTRIP

1шт.

1-20

PH21C01514P1

FOAM INSULATION

1шт.

1-21

PH21C01515P1

FOAM INSULATION

1шт.

1-22

PW21C01713P1

GUARD

1шт.

1-23

ZS41C05012

CAPSCREW,M5 x 12mm

MACHINE

2шт.

1-24

PE21C01135D8

SEAL

1шт.

2-1

PW21C01802P1

COVER ASSY

R/H

1шт.

2-2

PM21C01233P1

RUBBER

1шт.

2-3

2427P1836D32

WEATHERSTRIP

950mm Long (37-25/64 in)

1шт.

2-4

PW21C01629P1

FOAM INSULATION

1шт.

41

YT21C01187P2

WASHER

2шт.

47

PA41C01005D3

BOLT

SEMS

2шт.
