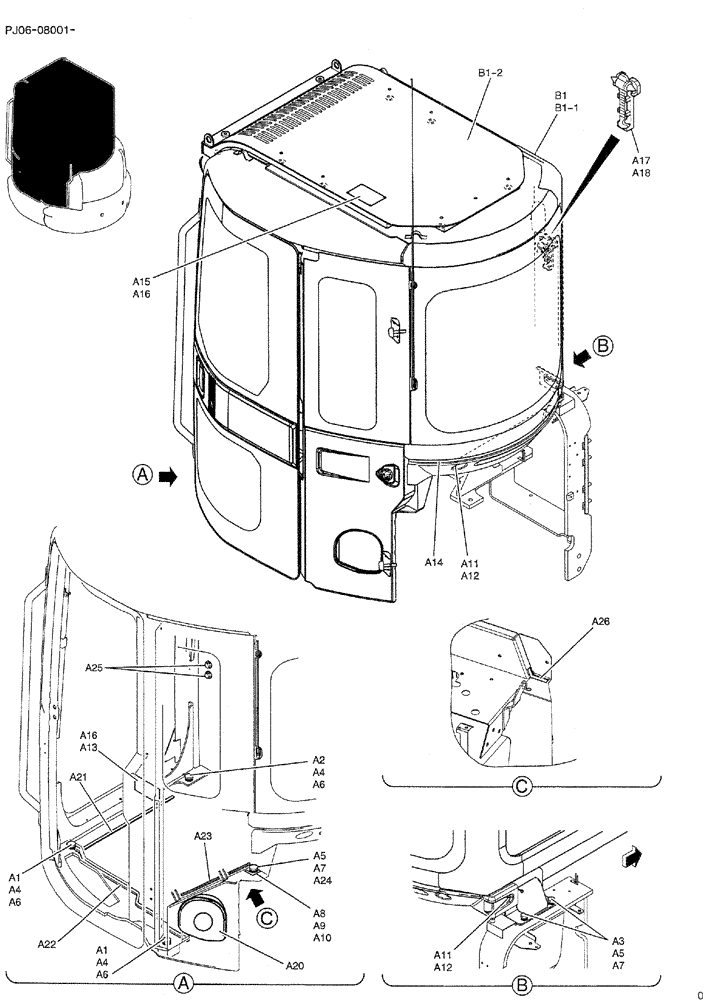

Запчасти Case CX50B (01-050) - CAB INSTAL (PW02C00039F1) (05) - SUPERSTRUCTURE

.

CAB INSTAL (PW02C00039F1)

1шт.

a1

ZS18C16100

SCREW,Hex, M16 x 100mm

CAP

2шт.

a2

ZS18C16050

SCREW,Hex, M16 x 50mm

CAP

1шт.

a3

ZS18C12050

SCREW,Hex, M12 x 50mm

CAP

2шт.

a4

ZW26X16000

LOCK WASHER

3шт.

a5

ZW26X12000

LOCK WASHER

3шт.

a6

ZW16H16000

WASHER

3шт.

a7

ZW16H12000

WASHER

3шт.

a8

YN21C01757D1

SHIM,1.2mm Thk

(1.2)

1шт.

a9

YN21C01757D2

SHIM,2mm Thk

(2.0)

1шт.

a10

YN21C01757D3

SHIM,3.2mm Thk

(3.2)

1шт.

a11

2420T4505

WASHER,7mm ID x 16mm OD x 1mm Thk

3шт.

a12

ZM46C06025

BOLT

SEMS

3шт.

a13

PW20T01079P1

PLATE

NUMBER

1шт.

a14

PM21C01152DN

WEATHERSTRIP

1шт.

a15

PV20T01018P1

IDENTITY PLATE

NUMBER

1шт.

a16

PB06C01093D1

RIVET

8шт.

a17

YN01T01012F1

HAMMER

ASSY

1шт.

a18

ZS32T40020

SCREW

TAPPING

3шт.

a20

PW02C01186P1

COVER

1шт.

a21

YR52F01080D4

RUBBER

1шт.

a22

YR52F01080DD

RUBBER

1шт.

a23

YR52F01080D1

RUBBER

1шт.

a24

ZS18C12040

SCREW,Hex, M12 x 40mm

CAP

1шт.

a25

PA03M01093D1

BOLT

SEMS

2шт.

a26

PF21C01175D3

RUBBER

1шт.

.

CAB ASSY (CASE COMMON GRAY) (PW02C00050F1%KS)

1шт.

b1

PW02C00051F1%KS

CAB

ASSY (CASE COMMON GRAY)

1шт.

b1-1

PW02C00068F1

CAB

ASSY, (SEE FIGS. 01-052 THRU 01-056)

1шт.

b1-2

PW25C00003F1

GUARD

ASSY, HEAD (SEE FIG. 01-057)

1шт.
