(01-049) - PLATE GROUP, FLOOR (CAB) (PH03M00079F1)

Запчасти Case CX50B (01-049) - PLATE GROUP, FLOOR (CAB) (PH03M00079F1) (05) - SUPERSTRUCTURE

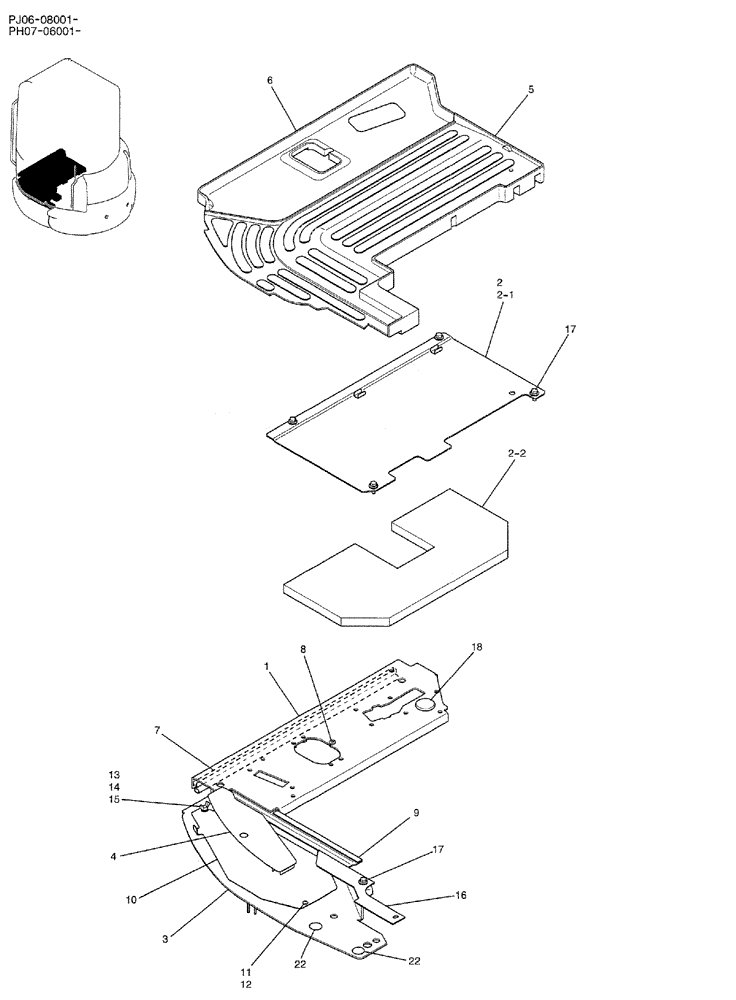

Схема запчастей Case CX50B - (01-049) - PLATE GROUP, FLOOR (CAB) (PH03M00079F1) (05) - SUPERSTRUCTURE
13
2-1
22
1
7
22
4
6
8
17
16
18
2-2
15
9
2
12
3
5
11
14
17
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PLATE GROUP, FLOOR (PH03M00079F1)

1шт.

1

PW03M01535P2

PLATE

1шт.

2

PH03M01479F1

COVER

COVER ASSY

1шт.

2-1

PW03M01592P1

COVER

COVER

1шт.

2-2

PH03M01478P1

FOAM INSULATION

1шт.

3

PW03M01860P1

BRACKET

BRACKET

1шт.

4

PH03M01458P2

COVER

COVER

1шт.

5

PW26M00014P1

FLOOR MAT

1шт.

6

PV26M00005F1

MAT

ASSY, FLOOR

1шт.

7

PH21C01136DF

WEATHERSTRIP

1шт.

8

YN03M01159P1

GROMMET

1шт.

9

PW03M01545P1

RUBBER

1шт.

10

PW03M01830P1

COVER

COVER

1шт.

11

PW11M01071P1

PIN,8mm OD x 19mm L

1шт.

12

2419R9D2

COTTER PIN

OD 08mm x 27.7mm Long

1шт.

13

2420R585D23

BOLT,Wing, M8 x 20mm

WING

1шт.

14

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

1шт.

15

ZW26X08000

LOCK WASHER

Lock

1шт.

16

PW03M01831P1

COVER

COVER

1шт.

17

PM21C01202P1

BOLT

SEMS

5шт.

18

PM03M01357P1

PLUG

1шт.

22

YT02C01567D2

PLATE

2шт.
