(01-048) - PLATE GROUP, CONTROL (CANOPY) (PH03M00080F1)

Запчасти Case CX50B (01-048) - PLATE GROUP, CONTROL (CANOPY) (PH03M00080F1) (05) - SUPERSTRUCTURE

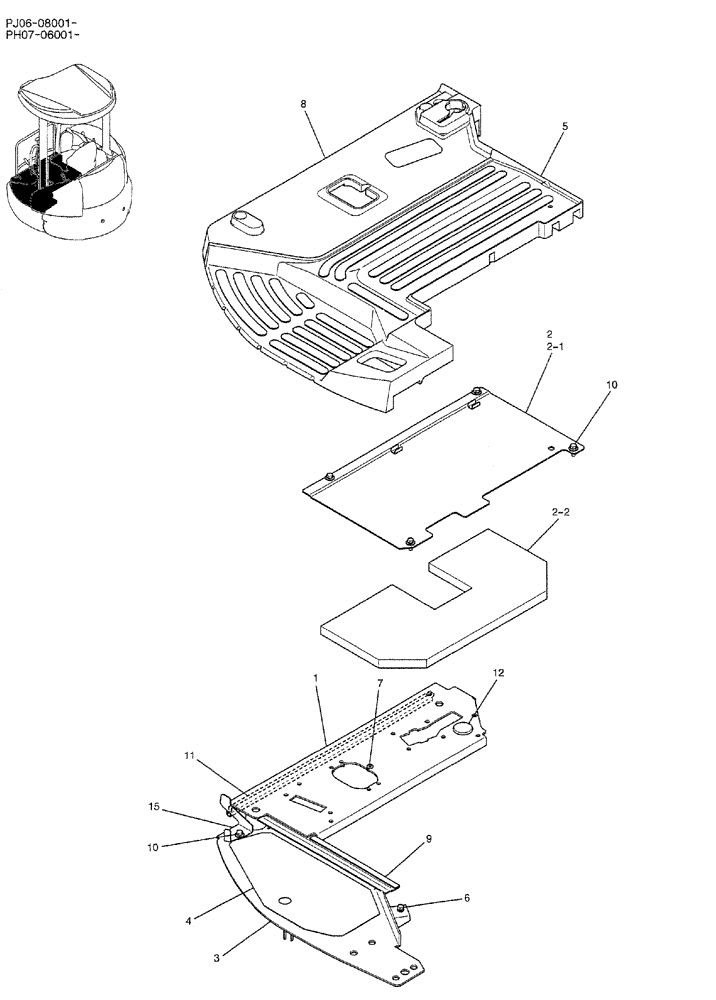

Схема запчастей Case CX50B - (01-048) - PLATE GROUP, CONTROL (CANOPY) (PH03M00080F1) (05) - SUPERSTRUCTURE
6
5
7
2-2
4
2
12
3
10
15
2-1
8
9
10
1
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

GROUP, FLOOR (PH03M00080F1)

1шт.

1

PW03M01535P2

PLATE

1шт.

2

PH03M01479F1

COVER

COVER ASSY

1шт.

2-1

PW03M01592P1

COVER

COVER

1шт.

2-2

PH03M01478P1

FOAM INSULATION

1шт.

3

PW03M01860P1

BRACKET

BRACKET

1шт.

4

PW03M01820P1

COVER

COVER

1шт.

5

PW26M00018P1

FLOOR MAT

1шт.

6

ZM22C08020

BOLT

SEMS

1шт.

7

YN03M01159P1

GROMMET

1шт.

8

PV26M00004F1

MAT

ASSY, FLOOR

1шт.

9

PW03M01545P1

RUBBER

1шт.

10

PM21C01202P1

BOLT

SEMS

5шт.

11

PH21C01136DF

WEATHERSTRIP

1шт.

12

PM03M01357P1

PLUG

1шт.

15

PW03M01832P2

PLATE

PLATE

1шт.
