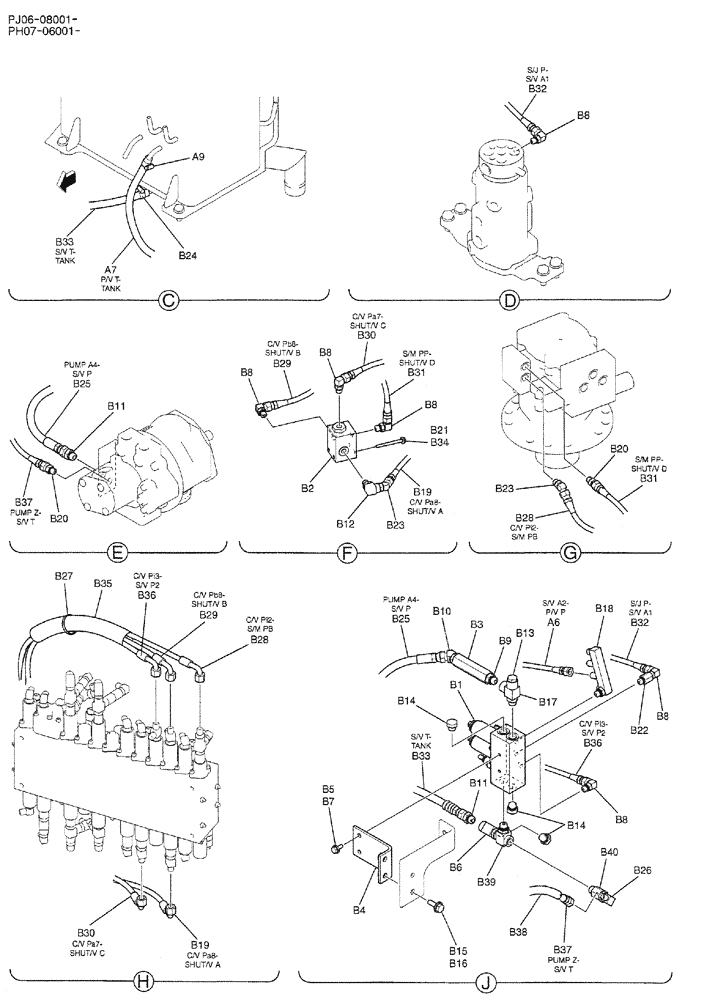

Запчасти Case CX50B (01-045) - CONTROL LINES, REMOTE (NIBBLER & BREAKER) (PY62H00011F1 & PY64H00061F1) 2 OF 2 (05) - SUPERSTRUCTURE

a9

ZC16X01800

CLIP

1шт.

b1

PX35V00003F1

VALVE

ASSY, SOLENOID

1шт.

b2

PH26V00001F1

VALVE

ASSY, SHUTTLE

1шт.

b3

YN50V00020F1

HYDRAULIC OIL FILTER

ASSY, INLINE

1шт.

b4

PW64H01072P1

BRACKET

1шт.

b5

ZS18C08020

SCREW,Hex, M8 x 20mm

2шт.

b6

HH55Q06006G1

TEE

1шт.

b7

ZW16H08000

WASHER

2шт.

b8

HH35S04004G1

90 ELBOW

6шт.

b9

2444Z3326

HYD CONNECTOR

CONNECTOR

1шт.

b10

HH45S06006G1

45 ELBOW

1шт.

b11

HH25S06006G1

HYD CONNECTOR

2шт.

b12

2444Z2894

90 ELBOW

1шт.

b13

ZE72X04000

PLUG

1шт.

b14

ZE72X06000

PLUG

3шт.

b15

ZS18C10030

SCREW,Hex, M10 x 30mm

CAP

2шт.

b16

ZW16H10000

WASHER

2шт.

b17

PW64H01011P1

TEE

1шт.

b18

PH64H01057P1

CONNECTION

1шт.

b19

HX34L04145DX

HOSE,6.3mm ID x 1450mm L

1шт.

b20

HH25S04004G1

HYD CONNECTOR

2шт.

b21

ZW16H06000

WASHER

2шт.

b22

2444Z2525

HYD CONNECTOR

1шт.

b23

HH45S04004G1

45 ELBOW

2шт.

b24

ZC16X01800

CLIP

1шт.

b25

HX25L06170DY

HOSE,9.5mm ID x 1700mm L

1шт.

b26

HH35S04006G1

90 ELBOW,90 Degree, 1/4" PF x 3/8" PF x 60mm L

1шт.

b27

PY01P01043D6

CABLE TIE,4.80mm W x 383mm L

1шт.

b28

HX34L04200DX

HOSE

1шт.

b29

HX34L04185DX

HOSE,6.3mm ID x 1850mm L

1шт.

b30

HX34L04140DX

HOSE,6.3mm ID x 1400mm L

1шт.

b31

HX24L04028DX

HOSE

1шт.

b32

HX24L04140DX

HOSE

1шт.

b33

PW68H01023D3

HOSE,9.5mm ID x 880mm L

1шт.

b34

ZS18C06065

SCREW,Hex, M6 x 65mm

CAP

2шт.

b35

2414Z199D30

PROTECTIVE SLEEVE

HOSE

1шт.

b36

HX34L04135DX

HOSE,6.3mm ID x 1350mm L

1шт.

b37

HX24L04155DX

HOSE ASSY.

1шт.

b38

PU13E01002D8

TUBE

1шт.

b39

YN64H01048P1

TEE,90 Degree, PF 3/8" x PF 3/8", O-Ring

1шт.

b40

2444Z2891

HYD CONNECTOR

1шт.
