Запчасти Case CX50B (01-044) - CONTROL LINES, REMOTE (NIBBLER & BREAKER) (PY62H00011F1 & PY64H00061F1) 1 OF 2 (05) - SUPERSTRUCTURE

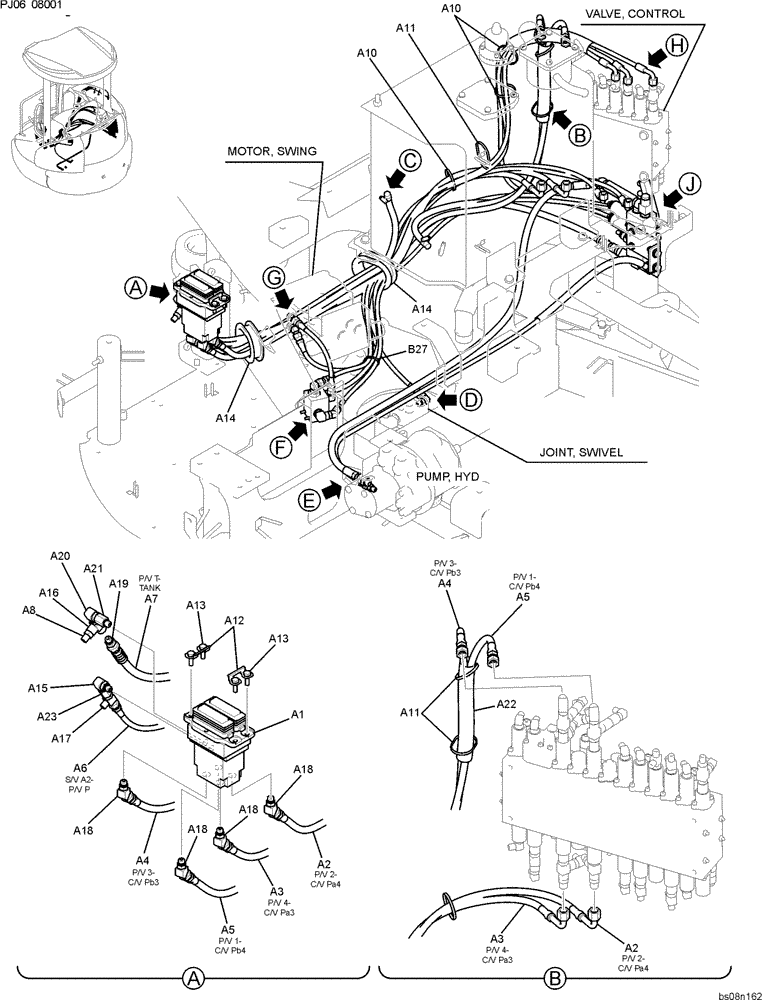

Схема запчастей Case CX50B - (01-044) - CONTROL LINES, REMOTE (NIBBLER & BREAKER) (PY62H00011F1 & PY64H00061F1) 1 OF 2 (05) - SUPERSTRUCTURE
a4
a10
a18
a14
a8
a4
a11
a1
a2
a3
a22
a13
a18
a14
a11
b27
a2
a23
a5
a17
a7
a12
a16
a13
a15
a19
a21
a10
a18
a5
a18
a3
a6
a20

Артикул

Название

Примечание

Количество

CONTROL LINES, PROPEL (PY62H00011F1)

1шт.

a1

PM30V00019F7

PILOT VALVE

VALVE ASSY PILOT, REPLACES PM30V00019F4

1шт.

a2

HX34L06145DX

HYDRAULIC HOSE

HOSE

1шт.

a3

HX34L06140DX

HOSE

1шт.

a4

HX24L06200DX

HOSE

1шт.

a5

HX24L06190DX

HOSE

1шт.

a6

HX24L04165DX

HOSE

1шт.

a7

PW68H01023DG

HOSE,9.5mm ID x 1000mm L

1шт.

a8

HH25S04004G1

HYD CONNECTOR

1шт.

a10

PY01P01043D8

CABLE TIE,102mm L

3шт.

a11

PY01P01043D6

CABLE TIE,4.80mm W x 383mm L

3шт.

a12

PW62H01003P1

PLATE

2шт.

a13

ZS18C08025

SCREW,Hex, M8 x 25mm

CAP

4шт.

a14

PH62H01001P1

GROMMET

2шт.

a15

PH62H01003P1

ELBOW

(WITH FILTER)

1шт.

a16

HH55Q04004G1

TEE,1/4" ORB x 1/4" JIC x 1/4" JIC

1шт.

a17

HH55L04004G1

TEE

1шт.

a18

HH45S06004G1

45 ELBOW

4шт.

a19

HH25S06004G3

HYD CONNECTOR

1шт.

a20

2444Z2894

90 ELBOW

1шт.

a21

2444Z2525

HYD CONNECTOR

1шт.

a22

2414Z199D30

PROTECTIVE SLEEVE

GUARD

1шт.

a23

PH62H01004P1

HYD CONNECTOR

CONNECTOR

1шт.

LINES, VALVE (PY64H00061F1)

1шт.

b27

PY01P01043D6

CABLE TIE,4.80mm W x 383mm L

1шт.

Выбрано товаров: 25
