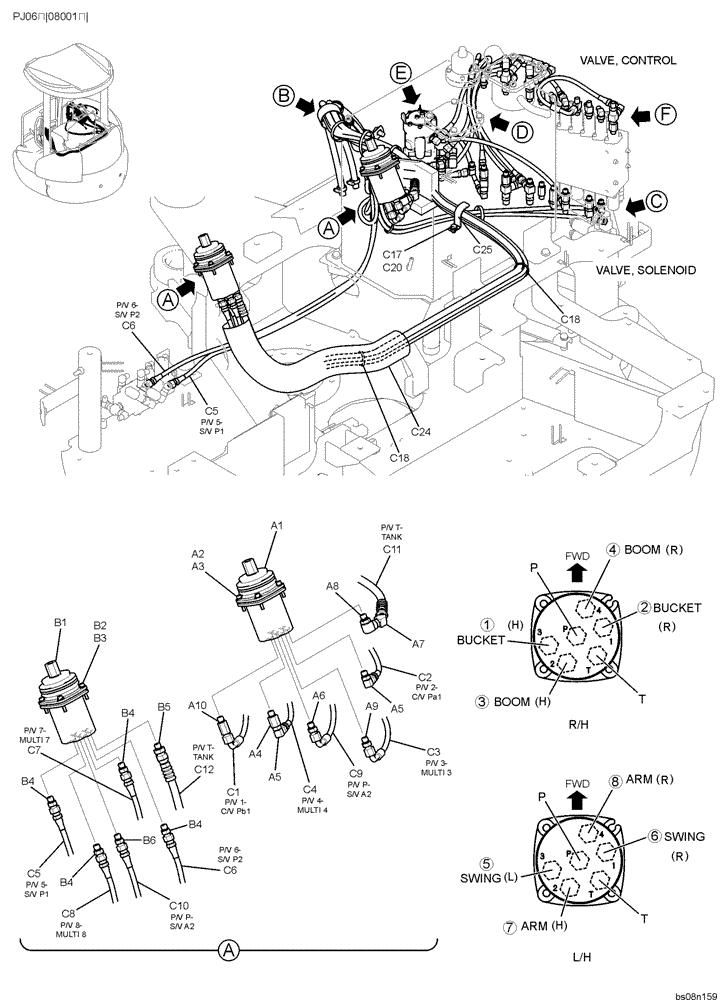

Запчасти Case CX50B (01-038) - CONTROL LINES, REMOTE (MULTI) (PY64H00066F1 & PY64H00067F1 & PY68H00019F1) 1 OF 3 (05) - SUPERSTRUCTURE

VALVE INSTAL (RIGHT SIDE STD) (PY64H00066F1), REPLACES PW64H00037F1

1шт.

a1

PX30V00043F4

PILOT VALVE

VALVE ASSY, PILOT, REPLACES PX30V00043F1

1шт.

a2

ZS28C06030

SCREW,Hex Socket Head, M6 x 30mm

CAP

4шт.

a3

ZW16X06000

WASHER

4шт.

a4

2444Z2525

HYD CONNECTOR

1шт.

a5

HH35S04004G1

90 ELBOW

2шт.

a6

HH25S04004G3

HYD CONNECTOR

1шт.

a8

HH45S06004G1

45 ELBOW

1шт.

a9

2444Z2894

90 ELBOW

1шт.

a10

HH25S04004G1

HYD CONNECTOR

1шт.

a11

PU64H01002P1

HYD CONNECTOR

1шт.

VALVE INSTAL (LEFT SIDE STD) (PY64H00067F1), REPLACES PW64H00038F1

1шт.

b1

PX30V00043F4

PILOT VALVE

VALVE ASSY, PILOT, REPLACES PX30V00043F1

1шт.

b2

ZS28C06030

SCREW,Hex Socket Head, M6 x 30mm

CAP

4шт.

b3

ZW16X06000

WASHER

4шт.

b4

HH25S04004G1

HYD CONNECTOR

4шт.

b5

HH25S06004G3

HYD CONNECTOR

REPLACES HH25S06004G1

1шт.

b6

HH25S04004G3

HYD CONNECTOR

1шт.

CONTROL LINES, REMOTE (PY68H00019F1)

1шт.

c1

HX33L04200DR

HOSE

1шт.

c2

HX23L04130DB

HOSE

1шт.

c3

HX33L04130DG

HOSE

1шт.

c4

HX23L04155DH

HOSE

1шт.

c5

HX23L04350DH

HOSE,6.3mm ID x 3500mm L

1шт.

c6

HX23L04350DR

HYDRAULIC HOSE

HOSE

1шт.

c7

HX23L04310DB

HYDRAULIC HOSE

HOSE

1шт.

c8

HX23L04310DG

HOSE

1шт.

c9

HX34L04195DX

HOSE,6.3mm ID x 1950mm L

1шт.

c10

HX24L04350DX

HOSE,6.3mm ID x 3500mm L

1шт.

c11

PW68H01023DM

HYDRAULIC HOSE

HOSE

1шт.

c12

PW68H01023DN

HYDRAULIC HOSE

HOSE

1шт.

c17

ZS18C08016

SCREW,Hex, M8 x 16mm

CAP

1шт.

c18

PY01P01043D6

CABLE TIE,4.80mm W x 383mm L

2шт.

c20

ZW16H08000

WASHER

1шт.

c24

PM68H01057P1

COVER

1шт.

c25

PW68H01041P1

CLAMP

1шт.

c13

ZC16X01800

CLIP

2шт.

c14

ZC46X50014

CLIP

1шт.

c15

ZS18C12020

SCREW,Hex, M12 x 20mm

1шт.

c16

ZW16H12000

WASHER

2шт.

c19

ZN18C12010

NUT

1шт.

c21

PM68H01054P1

FOAM INSULATION

1шт.

c22

PM68H01055P1

FOAM INSULATION

1шт.

c23

PH68H01042P1

RUBBER

1шт.

c26

PY01P01043D8

CABLE TIE,102mm L

7шт.

c27

YW11P01010P1

CLIP

1шт.

CONTROL LINES, MULT I (PY64H00060F1)

1шт.

d1

HX24L04048DX

HOSE ASSY.

1шт.

d2

HX24L04060DX

HOSE

1шт.

d3

HX24L04032DX

HOSE ASSY.

1шт.

d4

HX24L04044DX

HOSE

1шт.

VALVE INSTAL (PY64H00043F1)

1шт.

e5

PX30V00060F1

CONTROL VALVE

ASSY

1шт.

e6

HH25S04002G2

HYD CONNECTOR

1шт.

e7

HH35S04002G1

ELBOW

4шт.

e8

HH45S04002G1

45 ELBOW

1шт.

e9

ZS18C08025

SCREW,Hex, M8 x 25mm

CAP

4шт.

e10

ZW16H08000

WASHER

4шт.

e11

HH35S04004G1

90 ELBOW

2шт.

e12

HH25R02004G2

CONNECTION

1шт.

e13

2444Z2894

90 ELBOW

2шт.

e14

2444Z2335

CONNECTION

1шт.

CONTROL LINES, MAIN (PY06H00015F1)

1шт.

f1

HH25S04004G1

HYD CONNECTOR

2шт.

f2

2444Z2525

HYD CONNECTOR

7шт.

f3

HH55Q04004G1

TEE,1/4" ORB x 1/4" JIC x 1/4" JIC

6шт.

f4

HH55L04004G1

TEE

4шт.

f5

2444T2524D2

HYD CONNECTOR

1шт.

f6

HH45S04004G1

45 ELBOW

1шт.

f7

HH35S06004G1

90 ELBOW

2шт.

f8

HX34L04038DX

HOSE,6.3mm ID x 380mm L

2шт.

f9

PU64H01002P1

HYD CONNECTOR

1шт.

f10

HH25S06004G3

HYD CONNECTOR

2шт.

f11

HH25R04004G5

HYD CONNECTOR

(WITH FILTER)

2шт.

f12

YW06H01001P1

HYD CONNECTOR

CONNECTOR

2шт.

f13

HH25S04004G3

HYD CONNECTOR

(WITH FILTER)

1шт.

f14

HH35S04004G2

90 ELBOW

(WITH FILTER)

1шт.

f15

HX24L04072DX

HOSE ASSY.

1шт.

f16

HX24L04064DX

FLEXIBLE HOSE

1шт.

f17

HH35S04004G1

90 ELBOW

(WITH FILTER)

13шт.
