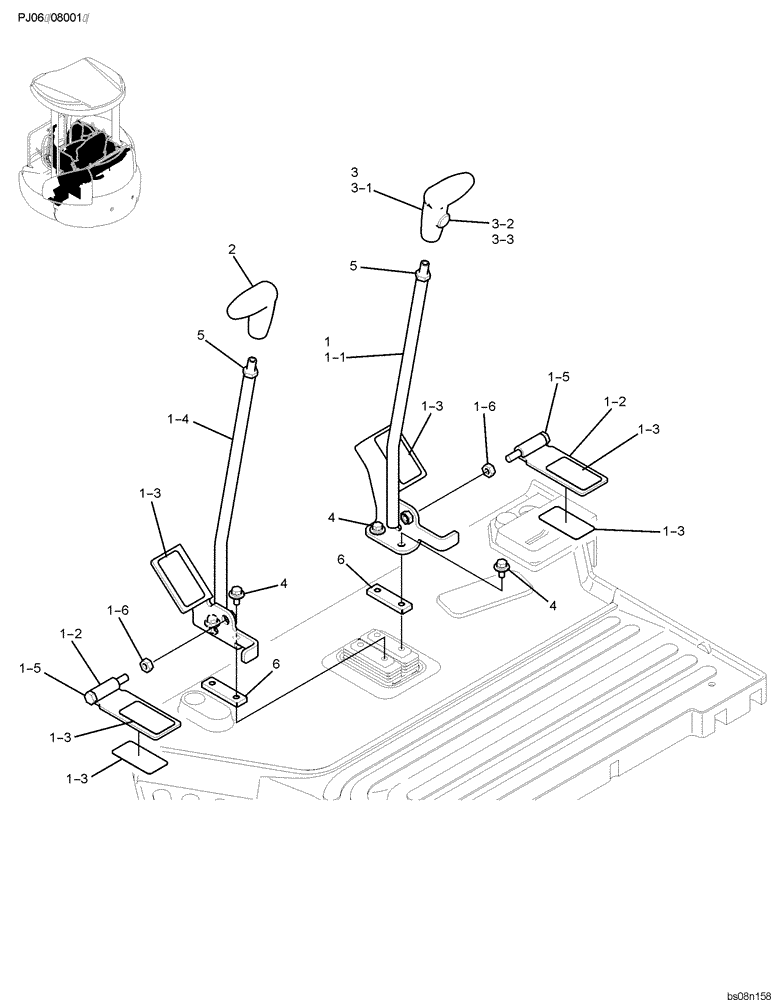

Запчасти Case CX50B (01-037) - LEVER ASSY, CONTROL (PH50M00011F1) (05) - SUPERSTRUCTURE

PM50M00004F3

LEVER SSY, CONTROL (PH50M00011F1)

1шт.

1

PH50M01107F1

LEVER

LEVER ASSY

1шт.

1-1

PH50M01108P1

LEVER

1шт.

1-2

PH55M01003P1

PEDAL

2шт.

1-3

PF55M01006P1

SEAT

6шт.

1-4

PH50M01111P1

LEVER

1шт.

1-5

HS18C10070G1

CAP

2шт.

1-6

ZN18C10008

NUT

2шт.

2

YN03M01040P1

GRIP

1шт.

3

YN03M01286F1

GRIP

ASSY

1шт.

3-1

YN03M01286S001

GRIP

RETAINING

1шт.

3-2

YN03M01286S002

SWITCH

1шт.

3-3

YN03M01286S003

CAP

1шт.

4

PA21C01133P1

BOLT

SEMS

4шт.

5

2420Z1232

NUT

2шт.

6

PW03M01889P2

COVER

2шт.
