(07-001) - VALVE ASSY, CONTROL (PY30V00054F1)

Запчасти Case CX50B (07-001) - VALVE ASSY, CONTROL (PY30V00054F1) ELECTRICAL AND HYDRAULIC COMPONENTS

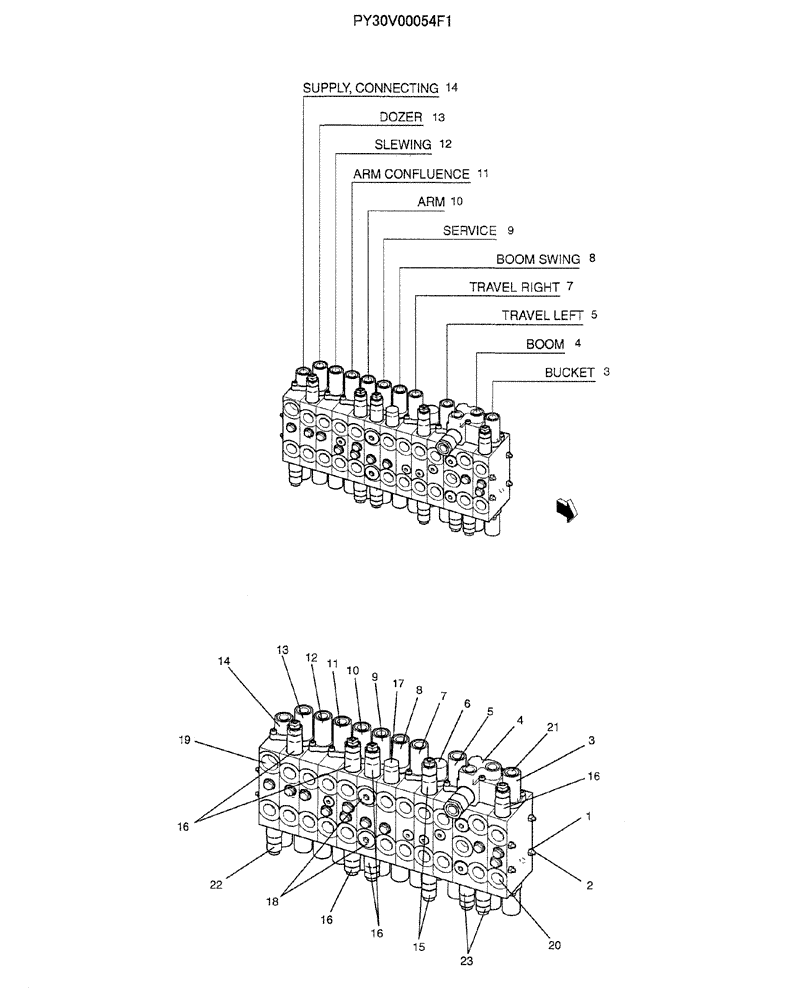

Схема запчастей Case CX50B - (07-001) - VALVE ASSY, CONTROL (PY30V00054F1) ELECTRICAL AND HYDRAULIC COMPONENTS
19
4
23
14
14
3
1
8
6
21
2
10
9
13
22
5
4
20
19
8
18
12
13
3
16
7
7
16
16
17
9
10
12
11
5
15
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PY30V00054F1

CONTROL VALVE

ASSY, CONTROL

1шт.

1

ZN18C08007

NUT

8шт.

2

PH30V00051S002

SCREW

TIE

4шт.

3

PH30V00053F1

VALVE

ASSY, CONTROL (BUCKET)

1шт.

SEE (HC012)

1шт.

4

PH30V00054F1

VALVE

ASSY, CONTROL (BOOM)

1шт.

SEE (HC011)

1шт.

5

PH30V00055F1

VALVE

ASSY, CONTROL (TRAVEL LEFT)

1шт.

SEE (HC010)

1шт.

6

PH30V00056F1

VALVE

ASSY, CONTROL (INLET)

1шт.

SEE (HC013)

1шт.

7

PH30V00057F1

VALVE

ASSY, CONTROL (TRAVEL RIGHT)

1шт.

SEE (HC008)

1шт.

8

PY30V00057F1

ASSY, CONTROL (BOOM SWING)

1шт.

SEE (HC007-17)

1шт.

9

PH30V00059F1

VALVE

ASSY, CONTROL (SERVICE)

1шт.

SEE (HC006)

1шт.

10

PH30V00060F1

VALVE

ASSY, CONTROL (ARM)

1шт.

SEE (HC005)

1шт.

11

PH30V00061F1

VALVE

ASSY, CONTROL (ARM CONFLUENCE)

1шт.

SEE (HC004)

1шт.

12

PH30V00062F1

ASSY, CONTROL (SLEWING)

1шт.

SEE (HC003)

1шт.

13

PH30V00063F1

VALVE

ASSY, CONTROL (DOZER)

1шт.

SEE (HC002)

1шт.

14

PH30V00064F1

VALVE

ASSY, CONTROL (SUPPLY, CONNECTING)

1шт.

SEE (HC009)

1шт.

15

PH22V00014F1

VALVE

ASSY, MAIN RELIEF

2шт.

SEE (HC014)

1шт.

16

PY22V00010F1

VALVE

ASSY, RELIEF

6шт.

SEE (HC015)

1шт.

17

PH22V00013F1

VALVE

ASSY, ANT 1 VOID

1шт.

SEE (HC023)

1шт.

18

YR30V00024S014

PLUG

ASSY

2шт.

19

2436U2937S17

PLUG

1шт.

20

YR30V00014S010

PLUG

20шт.

21

2436U2937S18

PLUG

22шт.

22

PH22V00014F2

VALVE

ASSY, MAIN RELIEF

1шт.

SEE (HC014)

1шт.

23

PY22V00010F2

VALVE

ASSY, RELIEF

2шт.

SEE (HC015)

1шт.
