Запчасти Case CX50B (01-029) - HYD LINES, UPP (NIBBLER & BREAKER) (PY03H00017F1) (05) - SUPERSTRUCTURE

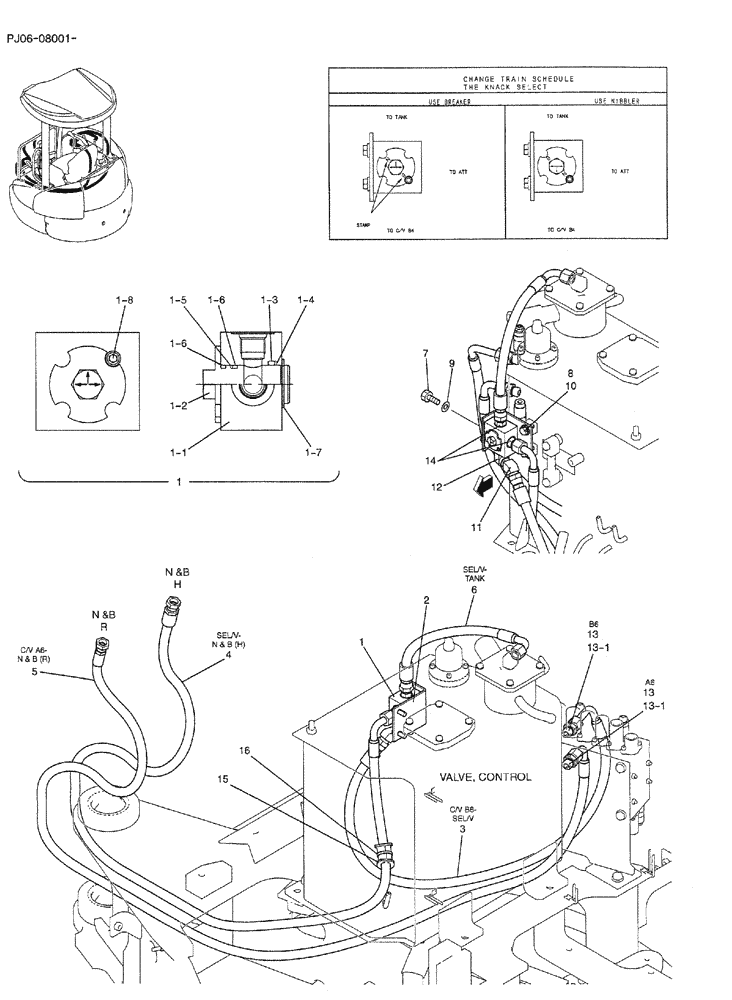

Схема запчастей Case CX50B - (01-029) - HYD LINES, UPP (NIBBLER & BREAKER) (PY03H00017F1) (05) - SUPERSTRUCTURE
1-2
13
a6
3
14
1-7
1-8
1-6
1-1
6
11
2
15
13
13-1
1-5
5
b6
1-3
13-1
1-6
12
10
4
1
7
16
9
8
1-4

Артикул

Название

Примечание

Количество

HYD LINES, UPP (PY03H00017F1)

1шт.

1

PA30V00005F1

VALVE

ASSY, SELECTOR

1шт.

1-1

PA30V01011P1

BODY

1шт.

1-2

PA30V01012P1

SHAFT

1шт.

1-3

ZD12G02500

O-RING,24.40mm ID x 30.60mm OD x 3.10mm

1шт.

1-4

ZD75G02500

BACK-UP RING

1шт.

1-5

ZD85P02100

RING

BACK UP

1шт.

1-6

ZD12P02100

O-RING,2.4mm Thk x 20.8mm ID, 90 Duro

O-RING

2шт.

1-7

ZR16X02500

RING

RETAINING

1шт.

1-8

ZS28C06010

CAPSCREW,Hex Socket Head, M6 x 10mm

CAP

1шт.

2

PH03H01102P1

BRACKET

1шт.

3

PH03H01107D3

HOSE

, Serial Range: PJ06-08001-08194

1шт.

3

PH03H01107D7

HYDRAULIC HOSE

HOSE, Start Serial: PJ06-08195

1шт.

4

PH03H01113D2

HOSE,12.7mm ID x 2330mm L

1шт.

5

PH03H01113D1

HOSE,12.7mm ID x 2640mm L

1шт.

6

HX32L08042DX

HOSE,12.7mm ID x 420mm L

1шт.

7

ZS18C08020

SCREW,Hex, M8 x 20mm

4шт.

8

ZS18C10025

SCREW,Hex, M10 x 25mm

2шт.

9

ZW16H08000

WASHER

4шт.

10

ZW16H10000

WASHER

2шт.

11

HH45S08006G1

45 ELBOW

1шт.

12

2444Z3155

90 ELBOW,PF 3/8" Fem x PF 3/8" Male

1шт.

13

HH25S08008G1

HYD CONNECTOR

2шт.

13-1

ZD12P01800

O-RING

1шт.

14

HH25S08006G2

HYD CONNECTOR

2шт.

15

YN03H01075P1

BUSHING,21mm ID x 39mm OD x 50mm L

1шт.

16

PY01P01043D6

CABLE TIE,4.80mm W x 383mm L

1шт.

Выбрано товаров: 27
