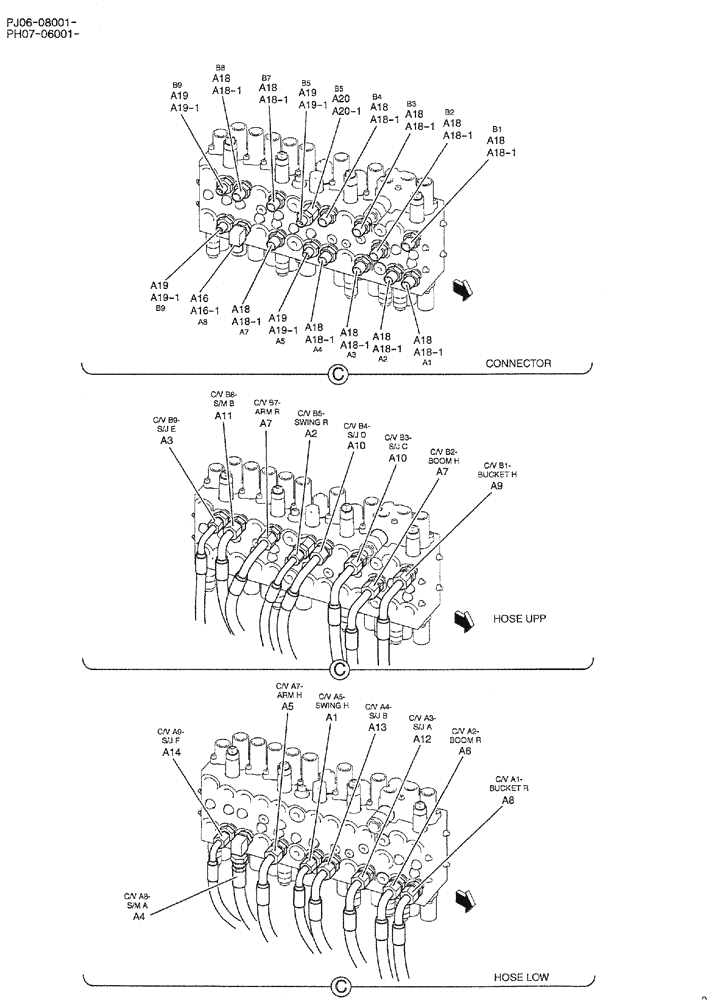

Запчасти Case CX50B (01-028) - HYD LINES, UPP (PY03H00014F1 & PH19H00009F1) (05) - SUPERSTRUCTURE

HYD LINES,UPP (PY03H00014F1)

1шт.

a1

HX35L06060DY

HOSE

1шт.

a2

PW03H01101D9

HOSE

1шт.

a3

PW03H01101DA

HOSE

1шт.

a4

HX25L08105DY

HOSE,12.7mm ID x 1050mm L

1шт.

a5

PH03H01113D3

HOSE,12.7mm ID x 2680mm L

1шт.

a6

PH03H01113D1

HOSE,12.7mm ID x 2640mm L

1шт.

a7

PH03H01112D2

HOSE,12.7mm ID x 2760mm L

2шт.

a8

PH03H01111D1

HOSE,12.7mm ID x 2530mm L

1шт.

a9

PH03H01110D1

HOSE,12.7mm ID x 2660mm L

1шт.

a10

PH03H01107D1

HOSE,12.7mm ID x 1250mm L

2шт.

a11

HX35L08125DX

HOSE

1шт.

a12

HX35L08120DX

HOSE,12.7mm ID x 1200mm L

1шт.

a14

HX35L06120DY

HOSE,9.5mm ID x 1200mm L

1шт.

a13

HX35L08110DX

HOSE

1шт.

a15

YT64H01029D7

RUBBER

1шт.

a17

HH35S08006G1

90 ELBOW

2шт.

a21

HH25R06006G1

HYD CONNECTOR

1шт.

a21-1

ZD12P01400

O-RING

1шт.

a22

2444Z3155

90 ELBOW,PF 3/8" Fem x PF 3/8" Male

1шт.

a22-1

ZD12P01400

O-RING

1шт.

HYD LINES, SWIVEL (PH19H00009F1)

1шт.

b1

HH25R06006G2

HYD CONNECTOR

1шт.

b1-1

ZD12P01400

O-RING

1шт.

b2

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

3шт.

b2-1

ZD12P01400

O-RING

1шт.

b4

HH45S08008G1

45 ELBOW

4шт.

b4-1

ZD12P01800

O-RING

1шт.
