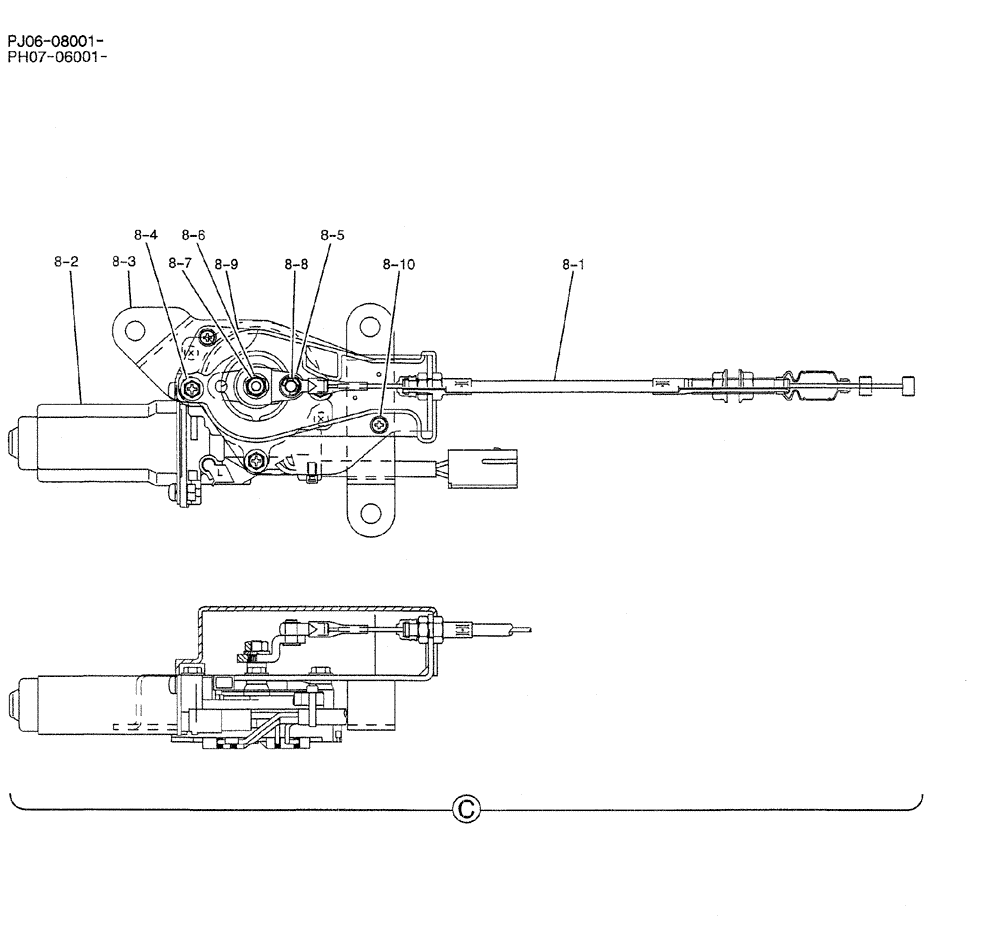

Запчасти Case CX50B (01-020) - CONTROL ASSY, ENGINE (WITH DECEL) (PH11M00014F1) 2 OF 2 (05) - SUPERSTRUCTURE
8-1
8-6
8-8
8-3
8-2
8-9
8-5
8-4
8-7
8-10
№
Артикул
Название
Примечание
Количество
8-1
PH20S00008S001
CABLE
1шт.
8-2
PM20S00009S002
GOVERNOR
MOTOR
1шт.
8-3
PW20S00012S003
BRACKET
1шт.
8-4
PM20S00009S004
SCREW
3шт.
8-5
PM20S00009S005
LEVER ASSY.
1шт.
8-6
PM20S00009S006
LOCK WASHER
1шт.
8-7
PM20S00009S007
NUT
1шт.
8-8
PM20S00009S008
RING
RETAINING
1шт.
8-9
PM20S00009S009
COVER
1шт.
8-10
PM20S00009S010
SCREW
2шт.
Выбрано товаров: 10
