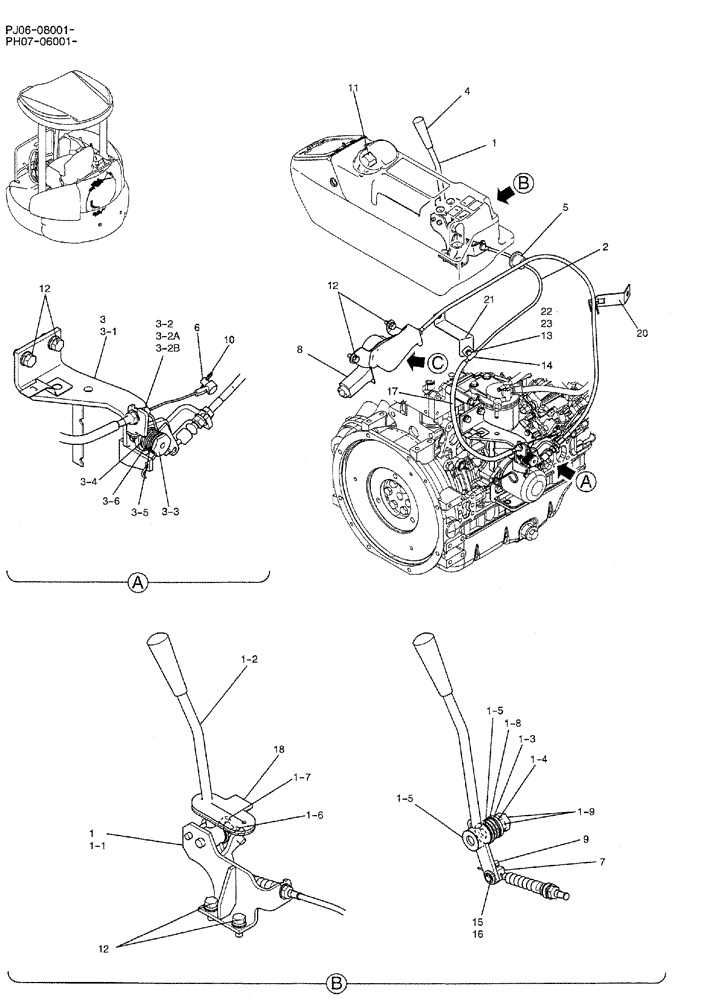

Запчасти Case CX50B (01-019) - CONTROL ASSY, ENGINE (WITH DECEL) (PH11M00014F1) 1 OF 2 (05) - SUPERSTRUCTURE

.

CONTROL ASSY, ENGINE CONTROL (PH11M00014F1)

1шт.

1

PH51M00011F1

LEVER ASSY.

THROTTLE

1шт.

1-1

PH51M01030P1

BRACKET

1шт.

1-2

PH51M01032P1

LEVER

LEVER

1шт.

1-3

R16T0137D2

WASHER

6шт.

1-4

ZW16H12000

WASHER

1шт.

1-5

PM51M01026P1

BUSHING,12mm ID x 14mm OD x 7mm L

2шт.

1-6

ZN18C08007

NUT

1шт.

1-7

2420T8007D3

CAPSCREW

CAP

1шт.

1-8

PM51M01025P1

PLATE

1шт.

1-9

ZN17C12007

NUT

2шт.

2

PH11M01072P1

CABLE,1175mm L

CONTROL

1шт.

3

PH11M01256F1

LINK

ASSY REPLACES PH11M01235F1

1шт.

3-1

PH11M01260P1

BRACKET, REPLACES PH11M01229P1

1шт.

3-2

PH11M01257F1

LINK

LINK ASSY, REPLACES PH11M01161F1

1шт.

3-2a

PH11M01258P1

LINK

LINK, REPLACES PH11M01157P2

1шт.

3-2b

2405R312D1512

BUSHING,15mm ID x 17mm OD x 12mm L

1шт.

3-3

PW11M01112P2

NUT

1шт.

3-4

PW11M01143P1

WASHER

1шт.

3-5

PW11M01144P1

WASHER

1шт.

3-6

PH11M01123P3

SPRING

1шт.

4

2406Z321

HANDLE

GRIP

1шт.

5

YT11M01012P1

GROMMET

1шт.

6

PW11M01071P1

PIN,8mm OD x 19mm L

1шт.

7

PW11M01109P2

PIN

1шт.

8

PH20S00008F1

GOVERNOR

MOTOR ASSY

1шт.

9

ZS18C05010

SCREW,Hex, M5 x 10mm

CAP

1шт.

10

2419R9D2

COTTER PIN

OD 08mm x 27.7mm Long

1шт.

11

PM50S00005P1

SWITCH

Decel

1шт.

12

ZM22C08020

BOLT

SEMS

7шт.

13

ZS18C06014

SCREW,Hex, M6 x 14mm

CAP

1шт.

14

ZC46X06007

CLIP

1шт.

15

ZR36X00600

SNAP RING

1шт.

16

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

1шт.

17

PU06C01020D6

TUBE

1шт.

18

PW11M01108P1

GROMMET

1шт.

20

PH11M01154P1

PLATE

1шт.

21

PH11M01155P1

PLATE

1шт.

22

ZW16X06000

WASHER

1шт.

23

ZW26X06000

LOCK WASHER

1шт.
