Запчасти Case CX50B (01-018) - TANK ASSY, HYD (NIBBLER & BREAKER) (PH33H00030F1 & PH33H00014F1) (05) - SUPERSTRUCTURE

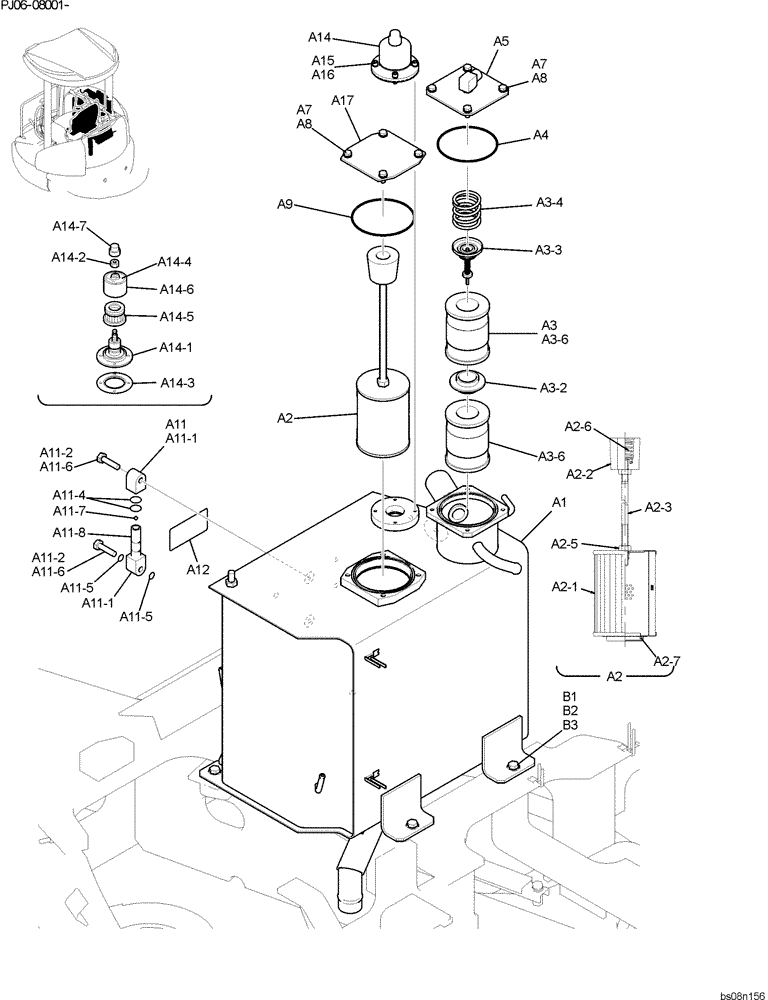

Схема запчастей Case CX50B - (01-018) - TANK ASSY, HYD (NIBBLER & BREAKER) (PH33H00030F1 & PH33H00014F1) (05) - SUPERSTRUCTURE

Артикул

Название

Примечание

Количество

TANK ASSY, HYD (PH33H00030F1)

1шт.

a1

PH33H00026P1

TANK

1шт.

a2

PW50V00015F1

STRAINER ASSY.

SUCTION

1шт.

a2-1

PM50V00017S001

FILTER STRAINER

, Serial Range: -A2

1шт.

a2-2

2446R176S2

HOLDER

GUIDE

1шт.

a2-3

PM50V00017S006

BOLT

BOLT

1шт.

a2-5

ZN11C10008

NUT

2шт.

a2-6

2446R176S5

SPRING

SPRING

1шт.

a2-7

NSS

NOT SOLD SEPARAT

O-RING

1шт.

a3

YR52V01001F2

FILTER ASSY

RETURN

1шт.

a3-2

YR52V01001S002

RUBBER JOINT

1шт.

a3-3

YR21V00001P1

VALVE

CHECK

1шт.

a3-4

YR52V01001S004

SPRING

1шт.

a3-6

YR52V01003P1

FILTER

ELEMENT

2шт.

a4

ZD11G11000

O-RING,109.40mm ID x 115.60mm OD x 3.10mm

1шт.

a5

PM33H01083P2

COVER

COVER

1шт.

a7

ZW26X08000

LOCK WASHER

Lock

8шт.

a8

ZS18C08016

SCREW,Hex, M8 x 16mm

CAP

8шт.

a9

ZD11G11500

O-RING,114.40mm ID x 120.60mm OD x 3.10mm

1шт.

a11

YN58S00009F3

GAUGE ASSY.

LEVEL

1шт.

a11-1

NSS

NOT SOLD SEPARAT

BLOCK

2шт.

a11-2

NSS

NOT SOLD SEPARAT

CAPSCREW

2шт.

a11-4

NSS

NOT SOLD SEPARAT

O-RING

4шт.

al 1-5

NSS

NOT SOLD SEPARAT

O-RING

4шт.

a11-6

NSS

NOT SOLD SEPARAT

WASHER

2шт.

a11-7

NSS

NOT SOLD SEPARAT

BALL

1шт.

a11-8

NSS

NOT SOLD SEPARAT

GAUGE

1шт.

a12

YF33H01020P1

LABEL

LABEL

1шт.

a14

YN57V00002F4

BREATHER ASSY.

1шт.

a14-1

2446U260S1

BODY

ASSY

1шт.

a14-2

2446U260S5

NUT

1шт.

a14-3

2446U260S8

PACKING

1шт.

a14-4

YN57V00002S007

IDENTITY PLATE

CAUTION

1шт.

a14-5

YN57V00002S010

ELEMENT

1шт.

a14-6

YN57V00002S011

COVER

1шт.

a14-7

YN57V00002S012

CAP

1шт.

a15

ZS28C06016

SCREW,Hex Socket Head, M6 x 16mm

CAP

4шт.

a16

ZW26K06000

LOCK WASHER

4шт.

a17

PH33H01074P1

COVER

1шт.

YR52V01001R400

REPAIR KIT

ELEMENT KIT CONSISTS OF REF. A3-2(1), A3-6(2), A4(1)

1шт.

TANK INSTAL, HYD (PH33H00014F1)

1шт.

b1

ZS18C10030

SCREW,Hex, M10 x 30mm

CAP

4шт.

b2

ZW16H10000

WASHER

4шт.

b3

YR20P01005D1

SHIM

(1.0)

3шт.
