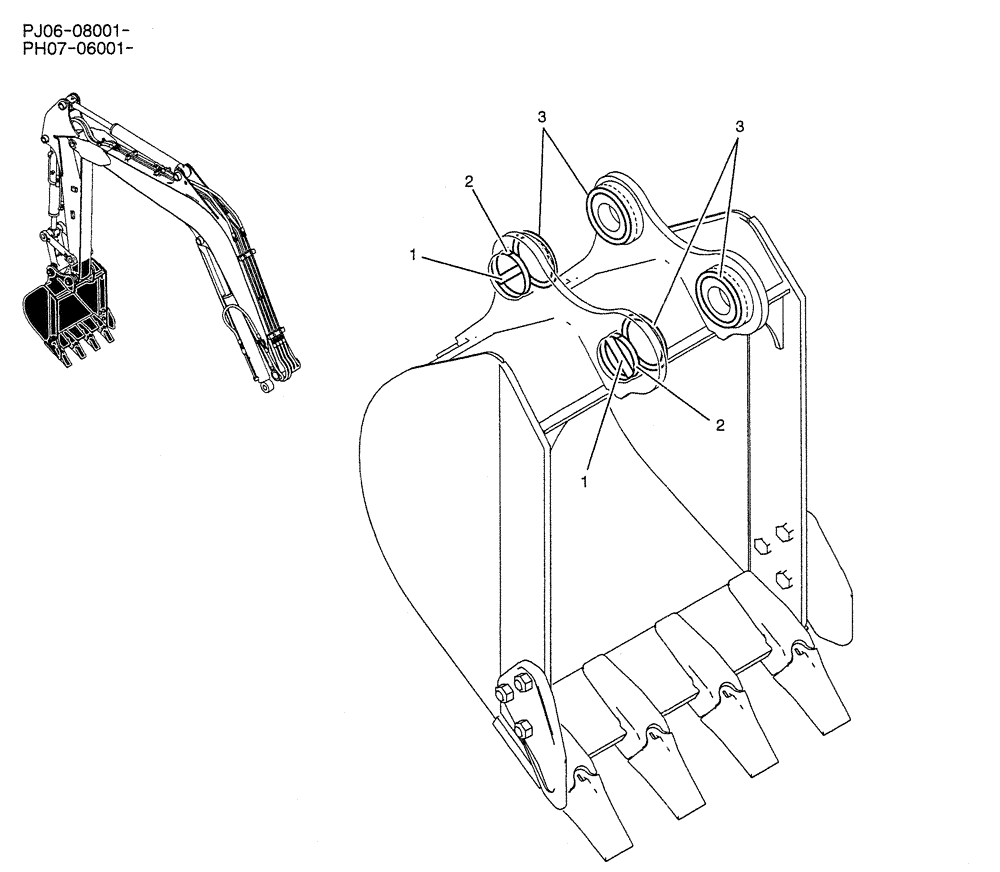

Запчасти Case CX50B (03-008) - BUCKET INSTALLATION (PH61B00033F1) Attachments

PH61B00033F1

BUCKET

Kobelco Bucket Install

1шт.

1

PH61B01002P1

PIN,12mm OD x 67mm L

2шт.

2

PH61B01043P1

RING

RING, REPLACES PH61B01003P1

2шт.

3

PH61B01008P1

O-RING,75mm ID x 7.5mm Width

, Serial Range: PJ06-08001-08194

4шт.

3

PH61B01044P1

O-RING

, Start Serial: PJ06-08195

4шт.

.

84532148

KIT

Esco Bucket Install Kit

1шт.

1

11114231

BOLT,Hex, M12 x 100, 10.9

2шт.

2

12577521

NUT,M12 x 1.75

2шт.

3

72288976

SHIM,47mm ID x 70mm OD x 0.50mm Thk

2шт.

3

72950990

SHIM,47mm ID x 70mm OD x 0.90mm Thk

2шт.
