Запчасти Case CX50B (01-005) - ENGINE ASSY (PH02P00015F1) (05) - SUPERSTRUCTURE

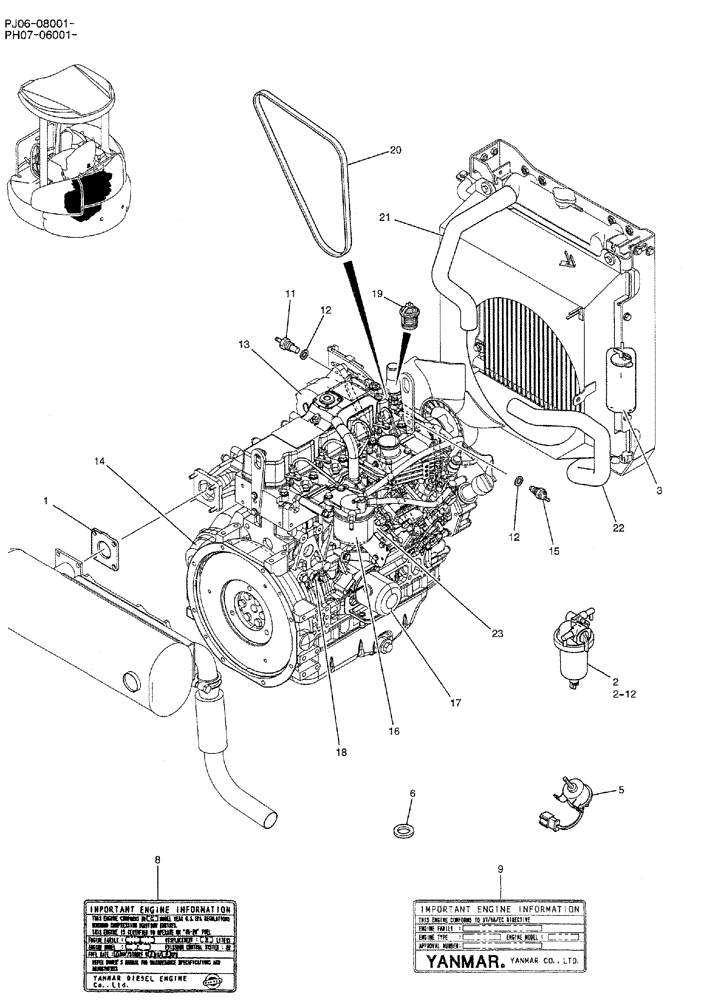

Схема запчастей Case CX50B - (01-005) - ENGINE ASSY (PH02P00015F1) (05) - SUPERSTRUCTURE
8
16
19
11
22
21
2
23
2-12
14
3
12
17
6
20
9
12
1
5
13
18
15

Артикул

Название

Примечание

Количество

PH02P00015F1

ENGINE

ASSY

1шт.

1

PH12P01056P1

GASKET

1шт.

2

PH02P01056P1

SEPARATOR

ASSY, WATER

1шт.

3

PU01P01024F1

RESERVOIR

TANK ASSY, WATER, SUB

1шт.

5

PW22P00001P1

FUEL PUMP

1шт.

6

PA13E01027P1

PACKING

1шт.

8

PY20T01087P1

LABEL

1шт.

9

PX20T01008P1

DECAL

LABEL

1шт.

11

PA24S00003P1

SENSOR,50-120 Degree C

(Used for Engine Temp Gauge)

1шт.

21

PH05P01221P1

RADIATOR HOSE

1шт.

22

PH05P01153P1

RADIATOR HOSE

1шт.

1

VV12993013200

GASKET

1шт.

2

VV11980255700

SEPARATOR

ASSY, WATER

1шт.

2-12

VV11980255710

FILTER STRAINER

WATER SEPARATOR

1шт.

3

VV12146844510

TANK

ASSY, WATER, SUB

1шт.

4

VV11980277200

RELAY

(Used for Safety)

1шт.

5

VV12961252100

FUEL PUMP,12V, 1.5A

1шт.

6

VV12915049360

PACKING

1шт.

7

VV12921177920

TIMER

1шт.

8

VV11982207731

LABEL

1шт.

9

VV12941807821

LABEL

1шт.

12

VV12446544950

GASKET

2шт.

13

VV11962677210

ALTERNATOR,12V, 55 Amp

ASSY

1шт.

14

VV12913677011

STARTER MOTOR

1шт.

15

VV12125044901

THERMOSTATIC SWITCH,On - 110 Degrees C, 230 Degrees F

(Used for Engine Coolent Temp Warning)

1шт.

16

VV11980255801

FUEL FILTER

1шт.

17

VV12915035160

ENGINE OIL FILTER

1шт.

18

VV11425039450

PRESSURE SWITCH,DC6V, 12V, 24V, 49 +/- 1 kPa (7.1 +/- 1.4 psi), PT 1/8"

(Used for Engine Oil Pressure)

1шт.

19

VV12915549801

THERMOSTAT

1шт.

20

VV12961242380

BELT, TRANSMISSION

V

1шт.

23

VV11923377932

SOLENOID

Stop (Fuel Shut-Off)

1шт.

Выбрано товаров: 31
