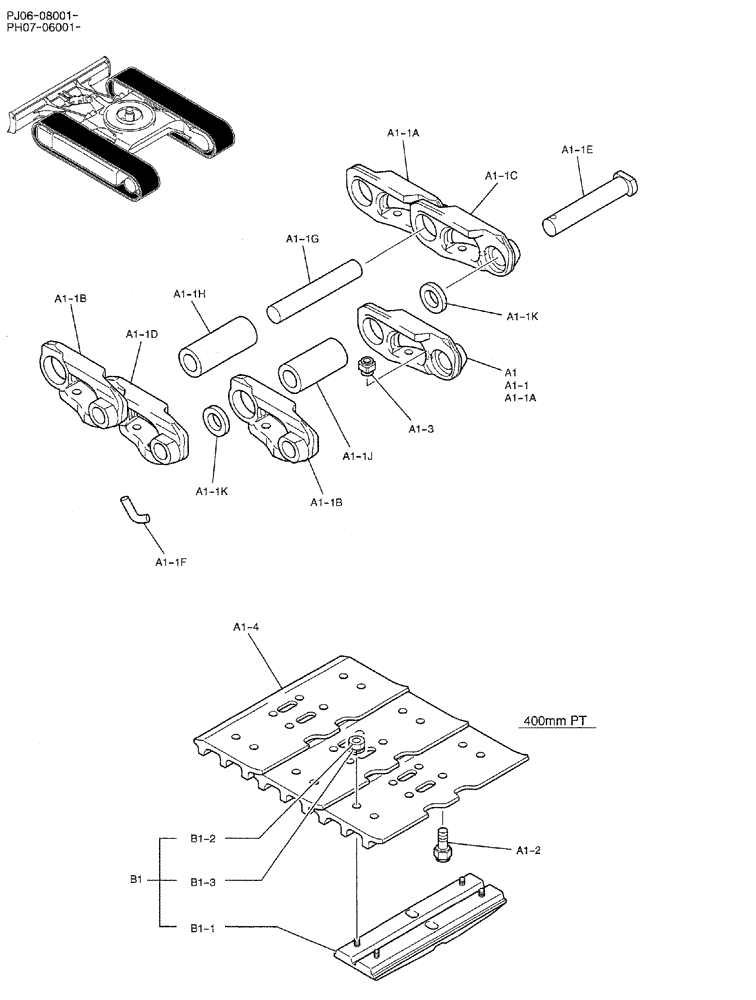

Запчасти Case CX50B (02-010) - SHOE ASSY (PY60D00007F1 & PH60D00004F2) (04) - UNDERCARRIAGE

SHOE ASSY (PY60D00007F1)

1шт.

a1

PY60D00003F1

SHOE (ASSY)

1шт.

a1-1

PY62D00002F1

TRACK LINK

ASSY

1шт.

a1-1a

PY62D00003P1

TRACK LINK

37шт.

a1-1b

PY62D00004P1

TRACK LINK

37шт.

a1-1c

PY62D01008P1

LINK

1шт.

a1-1d

PY62D01009P1

LINK

1шт.

a1-1e

PY62D01010P1

PIN,22.16mm OD x 120mm L

1шт.

a1-1f

2419T6404

PIN,6mm OD

1шт.

a1-1g

PY62D01011P1

PIN,22.3mm OD x 120.2mm L

37шт.

a1-1h

PY62D01012P1

BUSHING,22.5mm ID x 35mm OD x 73.5mm L

37шт.

a1-1j

PY62D01013P1

BUSHING,22.5mm ID x 35mm OD x 63mm L

1шт.

a1-1k

PY62D01014P1

COLLAR

2шт.

a1-2

PH60D01001P1

BOLT

152шт.

a1-3

2420Z1345

NUT

152шт.

a1-4

PY60D00002P1

SHOE

38шт.

PH60D00004F2

SHOE (ASSY)

(400W)

1шт.

b1

PH62D00004F1

SHOE,400mm W

RUBBER-PAD

38шт.

b1-1

PH62D00005P1

SHOE

RUBBER-PAD

1шт.

b1-2

ZN45C12022

NUT

4шт.

b1-3

ZW26X12000

LOCK WASHER

4шт.
