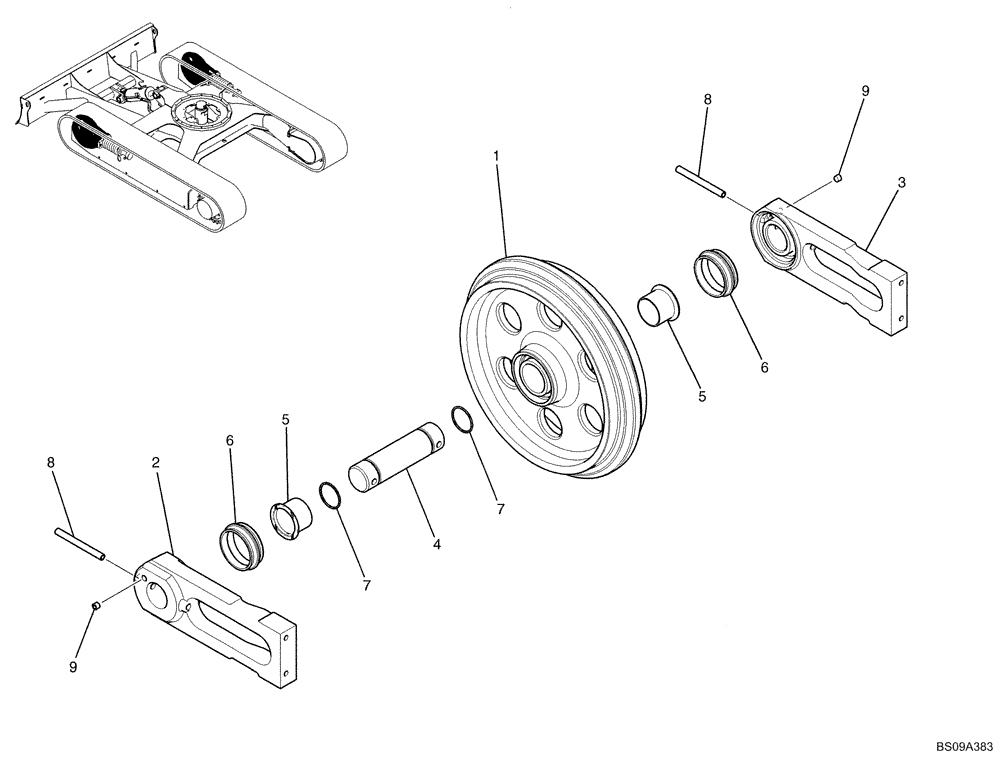

Запчасти Case CX50B (02-006) - IDLER ASSY (PY52D00024F1) (04) - UNDERCARRIAGE

IDLER ASSY (PY52D00024F1)

1шт.

1

PY52D00025P1

IDLER

1шт.

2

PY52D01019P1

COLLAR

1шт.

3

PY52D01020P1

COLLAR

1шт.

4

PY52D01008P1

SHAFT

1шт.

5

PY52D01009P1

BUSHING,45mm ID x 50mm OD x 37.5mm L

2шт.

6

2445R439F1

SEAL,64mm ID x 85.2mm OD x 28mm Thk

2шт.

7

ZD12G04000

O-RING,39.40mm ID x 45.60mm OD x 3.10mm

3шт.

8

ZP26D10100

PIN

3шт.

9

PY52D01007P1

COLLAR

3шт.
